Controls and Features
6 Rev 41513-20100224 English

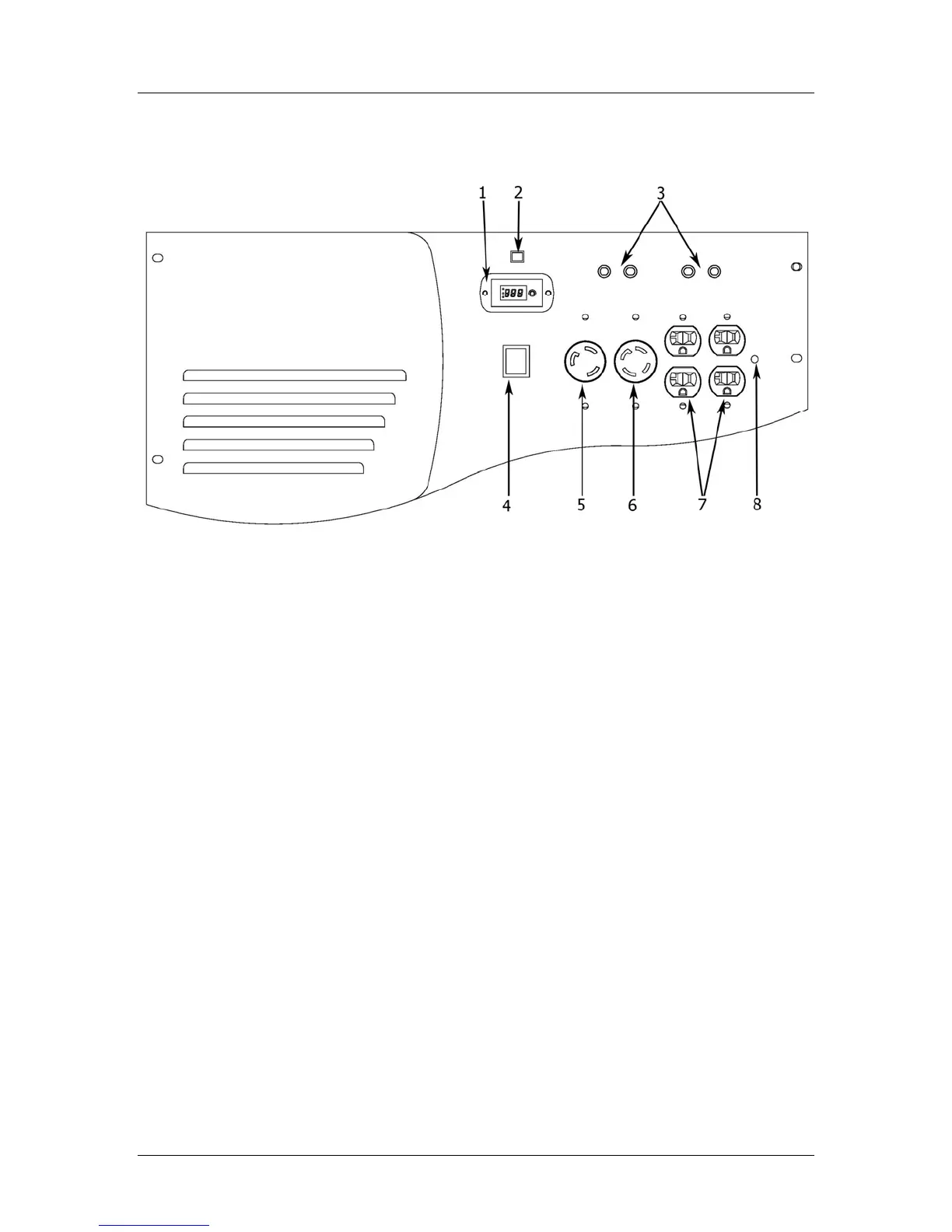

Power Panel
(1) Intelligauge – Three mode digital
meter for running hours, voltage and hertz.
(2) LED Switch – Controls the LED panel
lights.
(3) Circuit Breakers – Protects the
generator against electrical overload.
(4) Engine Switch – Press the switch to
the “Start” position to start the generator.
Flip to the “Off” position to turn off the
generator.
(5) 120 V 30 A Twist-Lock – protected by
a 30 A push-to-reset circuit breaker. This
receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 29 A or 3500
Watts of power.
(6) 120/240 V 30 A Twist-Lock –
protected by a 30 A push-to-reset circuit
breaker on each 120 Volt leg of the
receptacle. This receptacle powers 240 Volt
AC, 60 Hz, single phase loads requiring up
to 29 A or 7000 Watts of power. If an L14-
30P plug is wired for only one 120 Volt leg
(3-wire connection) then this receptacle
powers 120 Volt AC, 60 Hz, single phase
loads requiring up to 29 A or 3500 Watts of
power.
(7) 120 V 20 A Duplex – each duplex is
protected by a 20 A push-to-reset circuit
breaker to operate 120 Volt AC, single phase,
60 Hz loads requiring up to 20 A 0r 2400
Watts of power.
(8) Ground Terminal – Consult an
electrician for local grounding regulations.
