Installation
Dish Table Connections
CAUTION:
Do not attach the dish tables until the dishwasher is set in its permanent location.
Inner wall of
wash tank
Dish table flange
Drill holes, apply sealant,
& fasten flange to wash tank
Side
panel

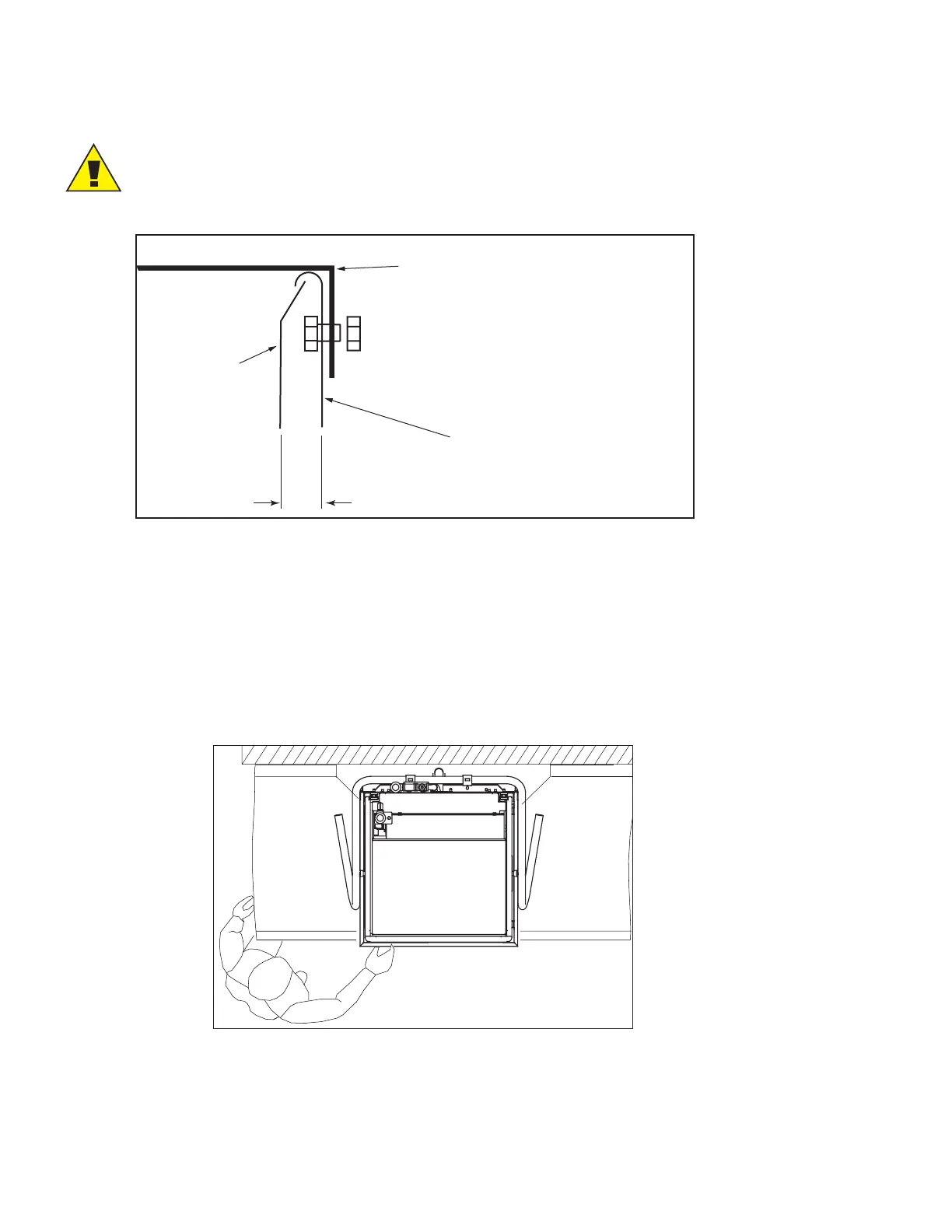

Fig. 2 - Dish table installation (if required)
Dish table Dish table
Fig. 3 - Nominal dish table conguration
Level the dishwasher and dish tables to the required height. Fit the dish table anges over
the ends of the dishwasher tank and mark two hole locations. Drill 1/4" holes through the table
ange and the dishwasher tank. Apply sealant between the table anges and the wash tank and
install stainless steel 1/4-20 fasteners to secure.
