Mechanical Service • Pump Seal Replacement
Mechanical • Basic Service
NOTE !
Study the instructions below
before you replace a pump seal.
1. Disconnect the power to the machine.
2. Disconnect the wires at the motor junction box.
3. Make note of the motor connections in order to phase the replacement correctly.
4. Remove pump/motor assembly to a clean work area.

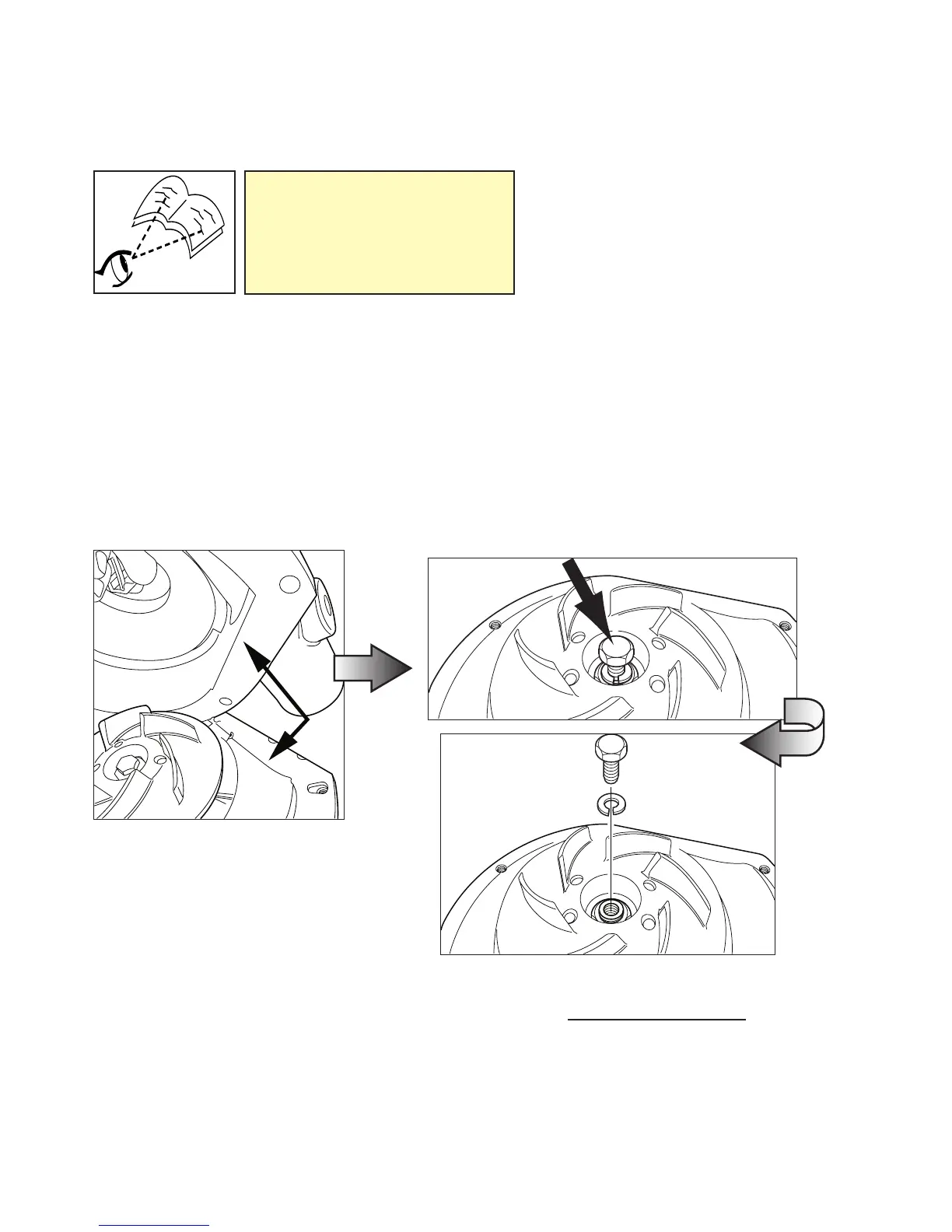

5. Follow the diagrams below for pump disassembly and seal replacement.
Mark alignment of motor and pump
Remove pump volute.
Remove Defective Pump Seal
continued on next page
