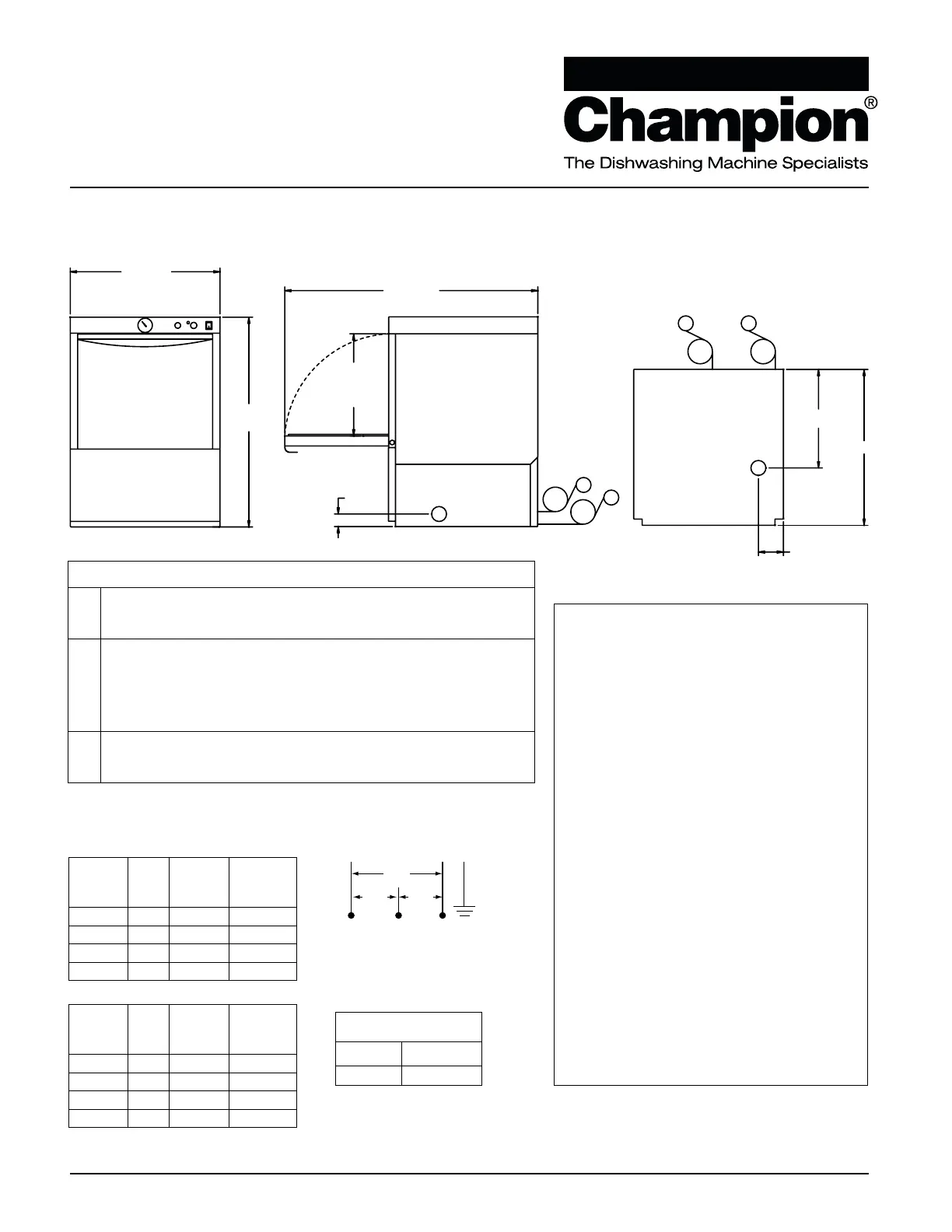

Undercounter High Temperature
Dishwashing Machine
with Built-in Booster Heater
UH100B
UH100B UNDERCOUNTER
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
Dimensions shown in inches and [milimeters]
Volume crated: 15 cu. ft.
Shipping weight crated: 215 lbs.
CHAMPION
UH100B
25" [635]
4" [102]
15-3/4" [400]
32
1
33-3/4"
[857]
24" [610]
40-1/2"
[1029]
15-3/4"
[400]
Clearance
2" [51]
1
3
2
Front View
Side View
Plan View
Warning Plumbing and electrical connections should be made by qualified personnel
who will observe all the applicable plumbing, sanitary and safety
codes and the National Electrical Code.
SPECIFICATIONS
Capacity
Racks per hr. (NSF rated) 21
Motor horsepower
Wash 1
Water consumption
US Gal. per hr. (Max. use) 38
US Gal. per rack 1.8
Temperatures °F/°C
Wash 150/66
Rinse 180/82
Heating
Tank heat, electric (kW) 2.0
Booster, elec., 40°F rise, kW 6
Booster, elec., 70°F rise, kW 9
Time cycle in seconds
Wash 90
Rinse 26
Drain/fill 25
Total cycle 141
Standard 20” x 20” rack complement
Dish 1
Open 1
*Note: Electrical supply
service must be a 3-wire plus
ground for connection as
shown.
115V
115V208V
L1 L2 N
G
UH-100 without booster
750 Watt tank heat
Elec. Rated
Specs. Amps
115/60/1 12
Field convertible to accept 3 phase power
UH-100B with 40°F/22°C Rise Booster
Elec. Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
Device
208/60/1 32 40 40
240/60/1 36 40 40
208/60/3 22 30 30
240/60/3 24 30 30
UH-100B with 70°F/39°C Rise Booster
Elec. Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
Device
208/60/1 45 60 60
240/60/1 50 60 60
208/60/3 29 35 35
240/60/3 33 40 40
Utilities
1 Electrical
208-240/60/1; 3 wire plus ground, (See Box).
208-240/60/3; 4 wire plus ground, (See Box).
2 Hot Water
1/2” supply; 140°F/60°C Min. hot water connection for 40°F/22°C rise booster;
110°F/43°C Min. hot water connection for 70°F/39°C rise booster. Incoming supply
pressure must maintain a Flow pressure 20-22 PSI (Pressure reducing valve, PRV,
supplied by customer or may be purchased unmounted from Champion).
Machine equipped with 3/4” [19] hose connector.
3 Pumped Drain
5/8” [15.9] I.D. flexible reinforced hose, 6 ft. [1829] long.
Max. drain flow 15 US gpm. [12.5 imp gal] Max. drain height 3 ft. [914]
