ChamSys MQ70/MQ50 Service Document
Page 2 of 25 www.chamsys.co.uk
Section 1: An overview of the console and all components.

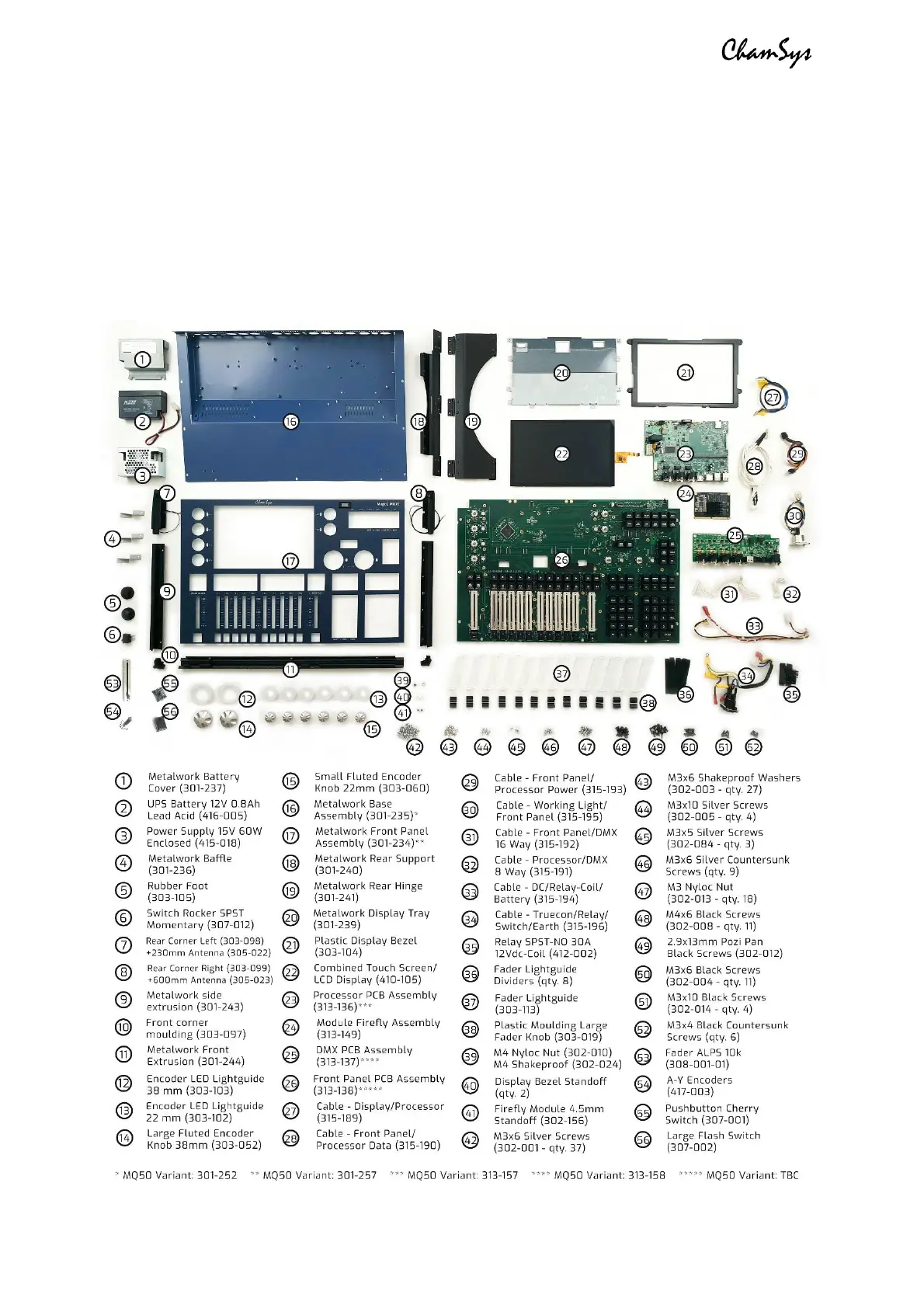

Below is an exploded picture of an MQ70 console, showing all components. Underneath
is a list of all parts and ChamSys part numbers, where applicable.
Note that these parts are for an MQ70 console, as an example. Parts for the MQ50
console are in most cases the same, but the few differences there will be highlighted
with asterisks (*) and alternate part numbers for the MQ50 parts will be listed.
