Section 2: Testing to determine faults.
All ChamSys consoles contain built-in hardware tests to help diagnose any faults that
may occur. To access these tests on any MagicQ console, first power on the console. The
board test mode can then be accessed using one of two methods, listed below.
Navigate to the Setup window using the
physical key on the console, located in the

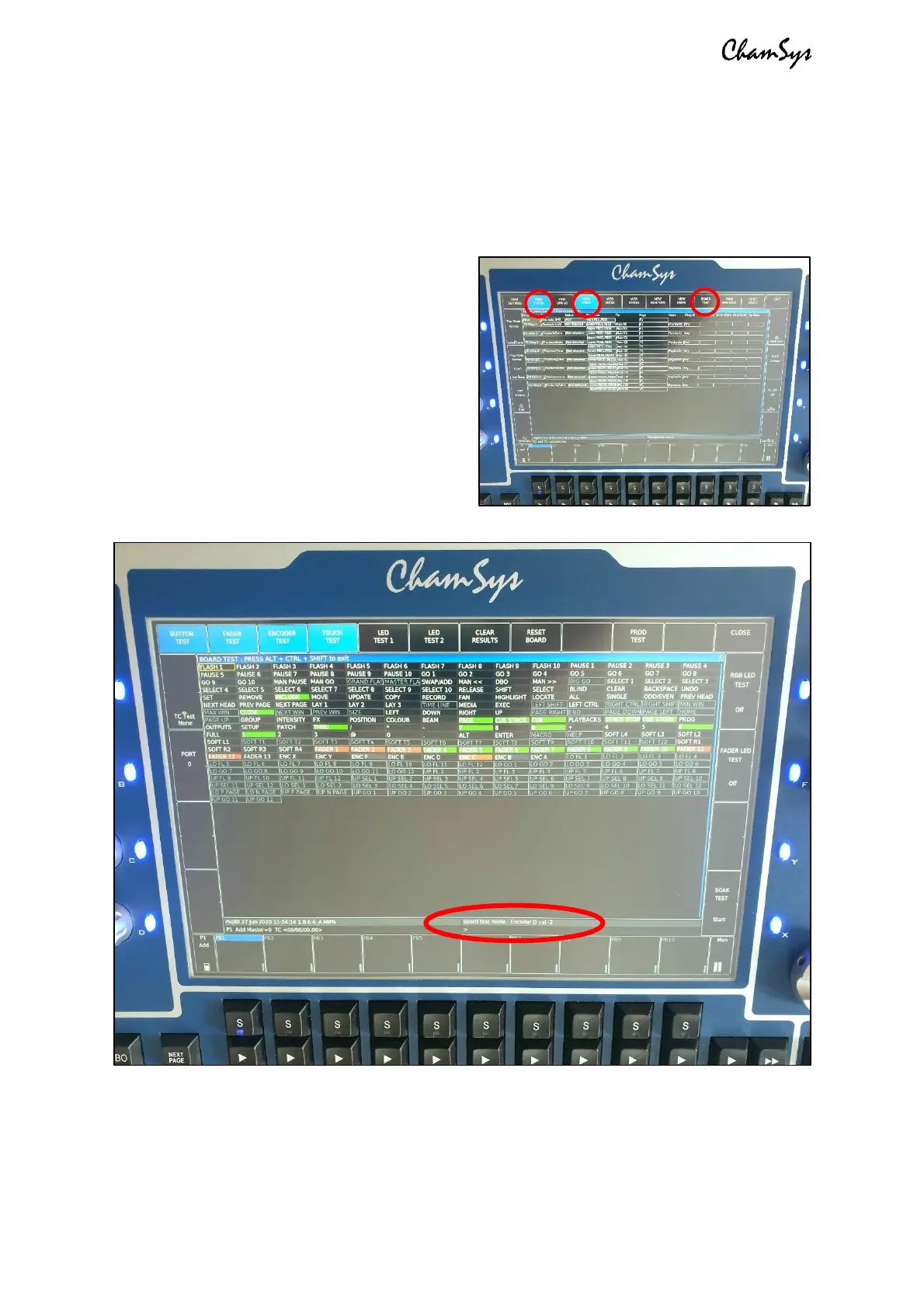

top right group of keys. Then use the on-
screen soft keys (see image, right, for
locations) to navigate to View System >
View Wings > Board Test.
Alternatively, you can press three keys
together to access the board test mode.
These keys are ALT + CTRL + SHIFT. Press
these keys together again to exit.
Once in board test mode you can begin testing the keys, faders and encoders on the
console straight away, as described below. When testing these, you will see the name of
the key, fader or encoder used appear in the command box down the bottom right of the
screen, as in the image above.
