Channel Plus MDS-6A User Manual

MDS-6A
INSTALLATION MANUAL
Page 6 © Channel Plus, Inc. 2004 • All rights reserved. 4/04
TM
MDS-6A
MDS-6A
Source Inputs
INPUT SENSITIVITY......................................................0-2V RMS
INPUT IMPEDANCE.........................................................47KOhm
Amplifier Output
MAX. OUTPUT POWER.......................................40W @ 8 Ohms
SPEAKER IMPEDANCE....................................................8 Ohms
FREQUENCY RESPONSE........................20Hz to 20kHz, +/-1dB
THD+NOISE(@1KHz)..........................................................0.02%
SIGNAL-TO-NOISE..............................................................>95dB
CROSSTALK (ZONE TO ZONE).........................................>70dB
Music On Hold Output
OUTPUT IMPEDANCE.......................................................1KOhm
Page & Doorbell Input
INPUT IMPEDANCE.......................................................47KOhms
Chassis Dimensions
L x D x H.....................................................17 in. X12.5 in. X 4 in
.................................................43.18 cm. X31.75 cm. X 10.16 cm
Weight
............................................................................... 21 Lbs/9.53 Kg

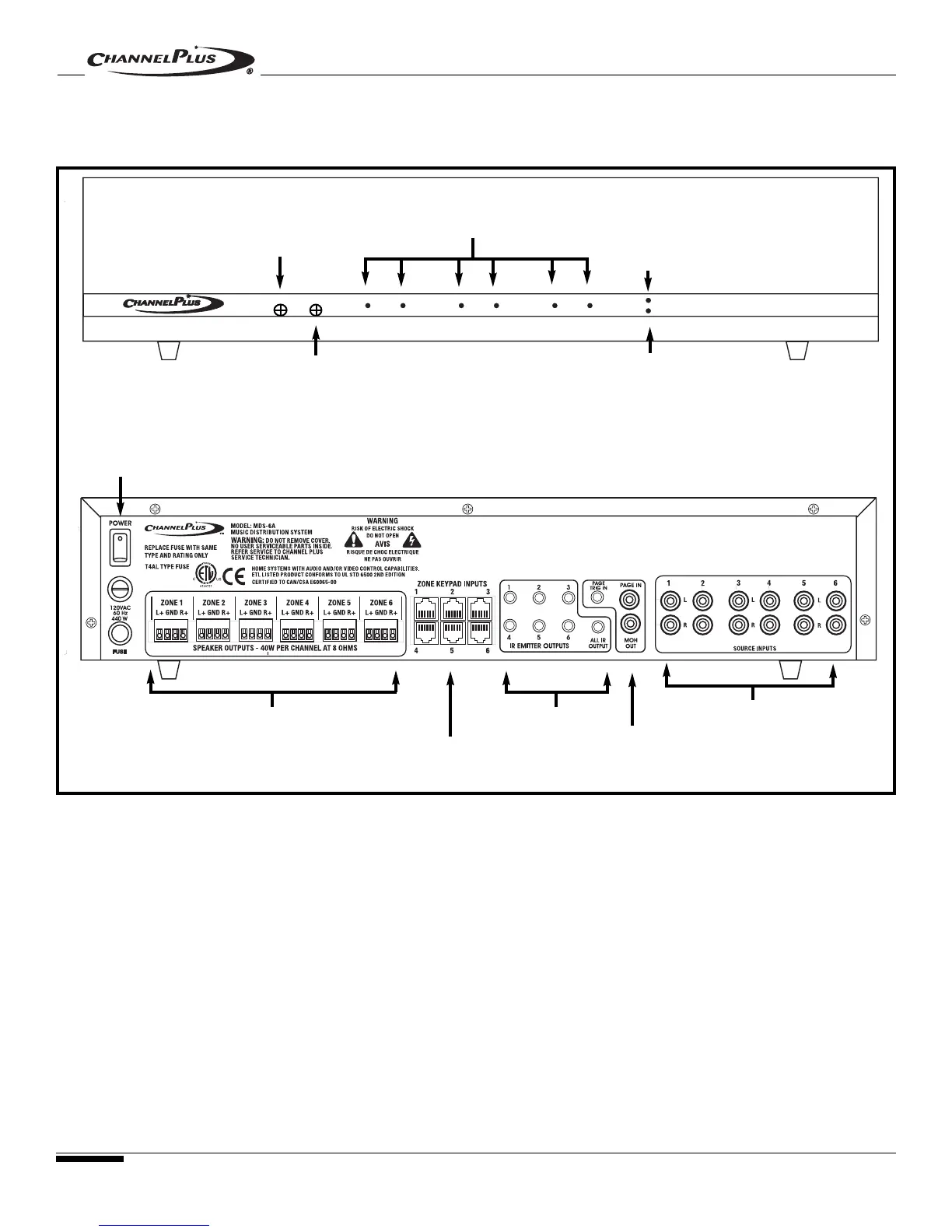

1.1 - FEATURE
OVERVIEW
- CONT.
Power Switch
Modular Speaker Connectors
Zone Keypad Inputs
IR Emitter Outputs
Page/Doorbell/
Music on Hold
Source Inputs
Music-on-Hold
Volume Level
Adjustment
Page/Doorbell
Volume Level
Adjustment
Zone ON / OFF
Status LEDs
Power LED
IR Activity
Indicator
LED
1.2 - MDS-6A S
PECIFICATIONS
Figure 1

Channel Plus MDS-6A Specifications

General

Brand	Channel Plus
Model	MDS-6A
Category	Controller
Language	English
