2.3 - SOURCE AND
IR C
ONNECTIONS
Source and IR Connections
The MDS-6A has six pairs of line-level audio inputs for the connection of up to six audio
sources.
Each audio source has a corresponding source-specific IR output for the connection of IR
emitters. Source-specific IR outputs allow multiple sources of the same make and model
to be controlled independently.
The MDS-6A also has an IR ALL port that can be used to control other system compo-
nents.

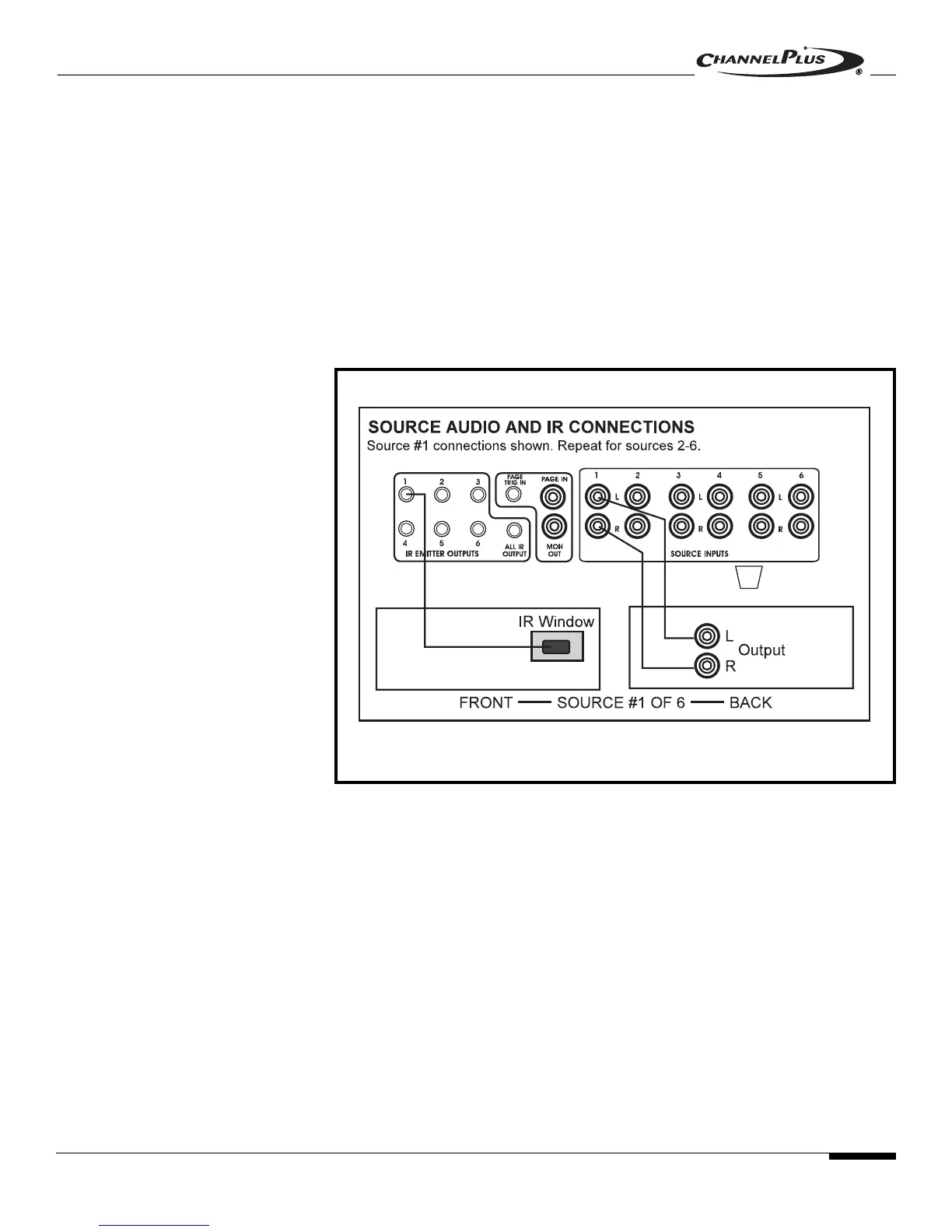

Figure 9
