Chapin 82088B - Page 4

8 mm 10 mm
8 mm 10 mm
TOOLS NEEDED:
HERRAMIENTAS REQUERIDAS:
OUTILS REQUIS:

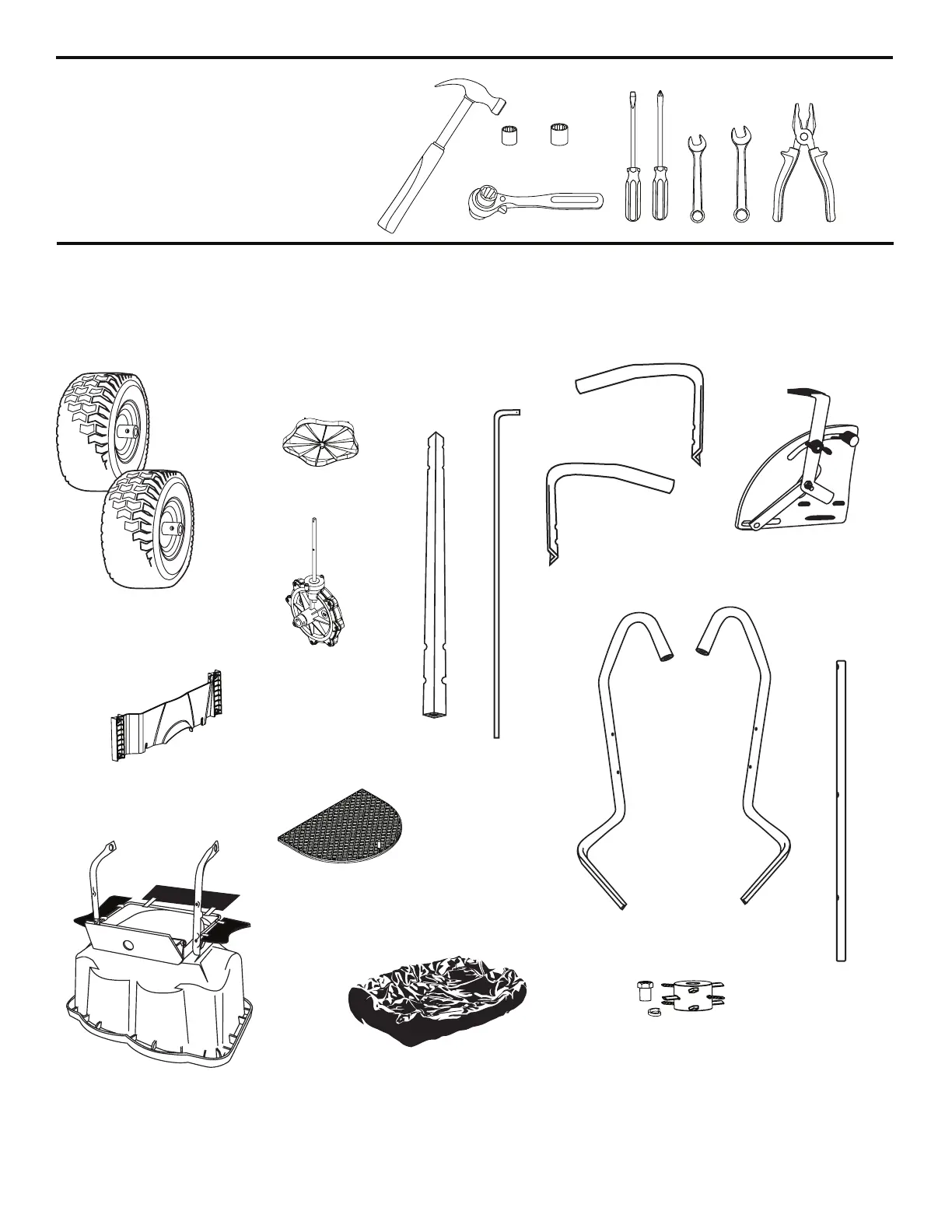

Spreader Components (Not Actual size)
Componentes de la esparcidor (no en tamaño real)
Composants de l’épandeur (taille non réelle)
e
e
3
C-1
Wheels
C-2
Impeller
C-3
Gear Box
C-15
Rain Cover
C-17
Rear Baffle
C-11
Gate Control
C-9
Handle (Left)
C-8
Handle (Right)
C-7
Linkage Arm
C-5
Handle
Tube
C-16
Grate
C-12
Frame leg
C-13
Frame leg
C-14
Gear Box Shaft
C-4
Hopper Assembly
C-10
Auger Kit
