CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458

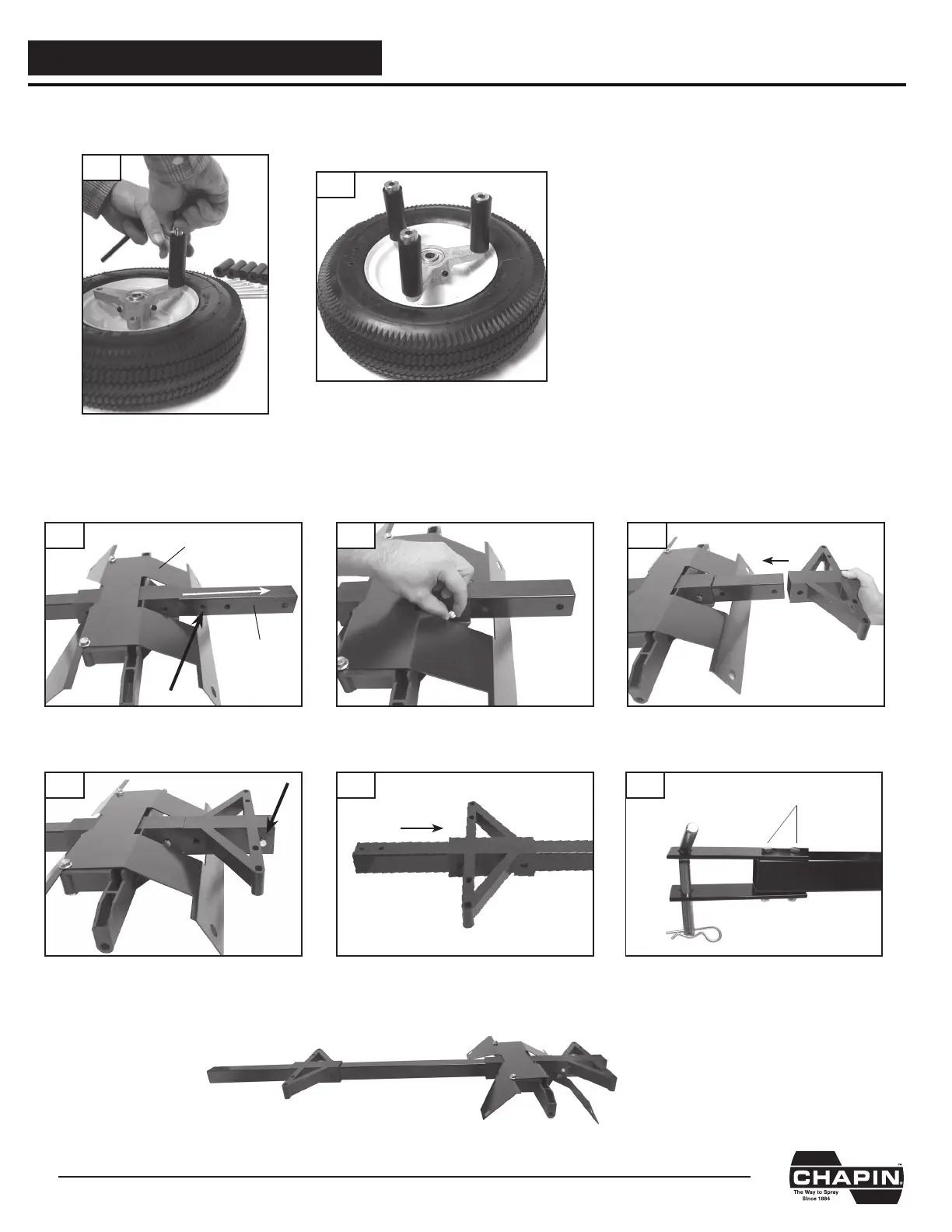

— ASSEMBLY INSTRUCTIONS
1.0 -- Wheel/roller assembly
Assemble rollers to wheels using shoulder bolts and allen wrench provided. tighten completely.
2.0 -- Frame assembly
Slide frame members onto frame rail per picture. Note the orientation of all frame members as their orientation is essential for proper
assembly. Bolt center and rear frame member to frame rail using 1/4” bolts and washers.
Align frame member hole with frame rail
hole.
1.1
Assembled
1.2
2.1
Install 1/4” bolt and washer.
2.2
Install rear frame member.
2.3
Install 1/4” bolts and washer.
2.4
Slide on front frame member.
2.5
Attach hitch plates per the picture using
1/4” bolts.
2.7
1/4” Bolts
Assembled
Frame Member
Frame
To Next Page
