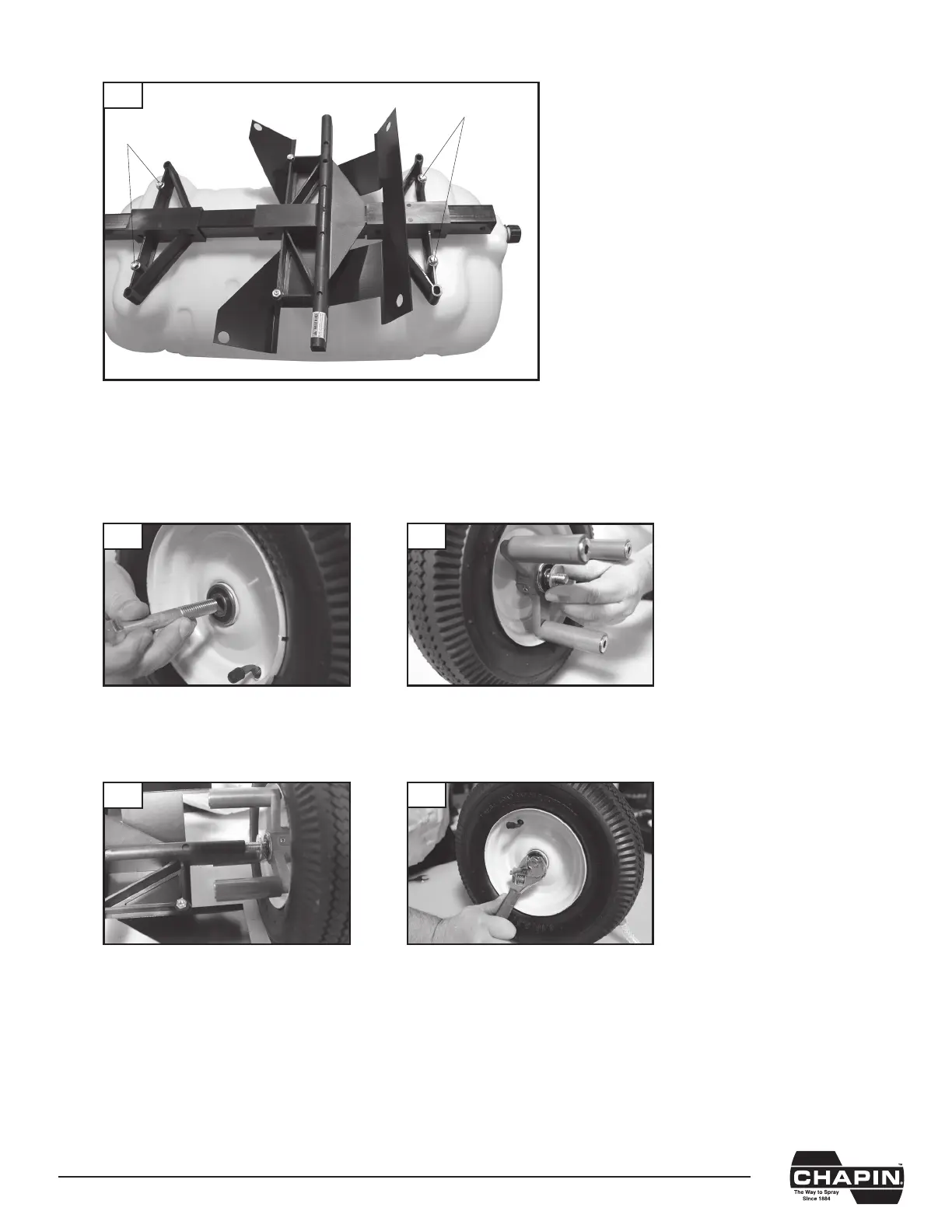

3.0 -- Tank to frame assembly
4.0 -- Wheels to frame assembly
4.1 4.2
4.3
4.4
3.1
5/16” Screws
5/16” Screws
Bolt tank to front and rear frame members per picture using
5/16” screws.
Bolt wheels to center frame member using 1/2” bolts and
washers provided.
Note the washers must go between the wheel and frame assembly. Do Not over
tighten bolts.
