Chappee NXR3 - Page 9

9 Ref. : CH - 1249 - A - 2
EXCHANGER
5 Sealing cord Ø 7
40 Screws bag

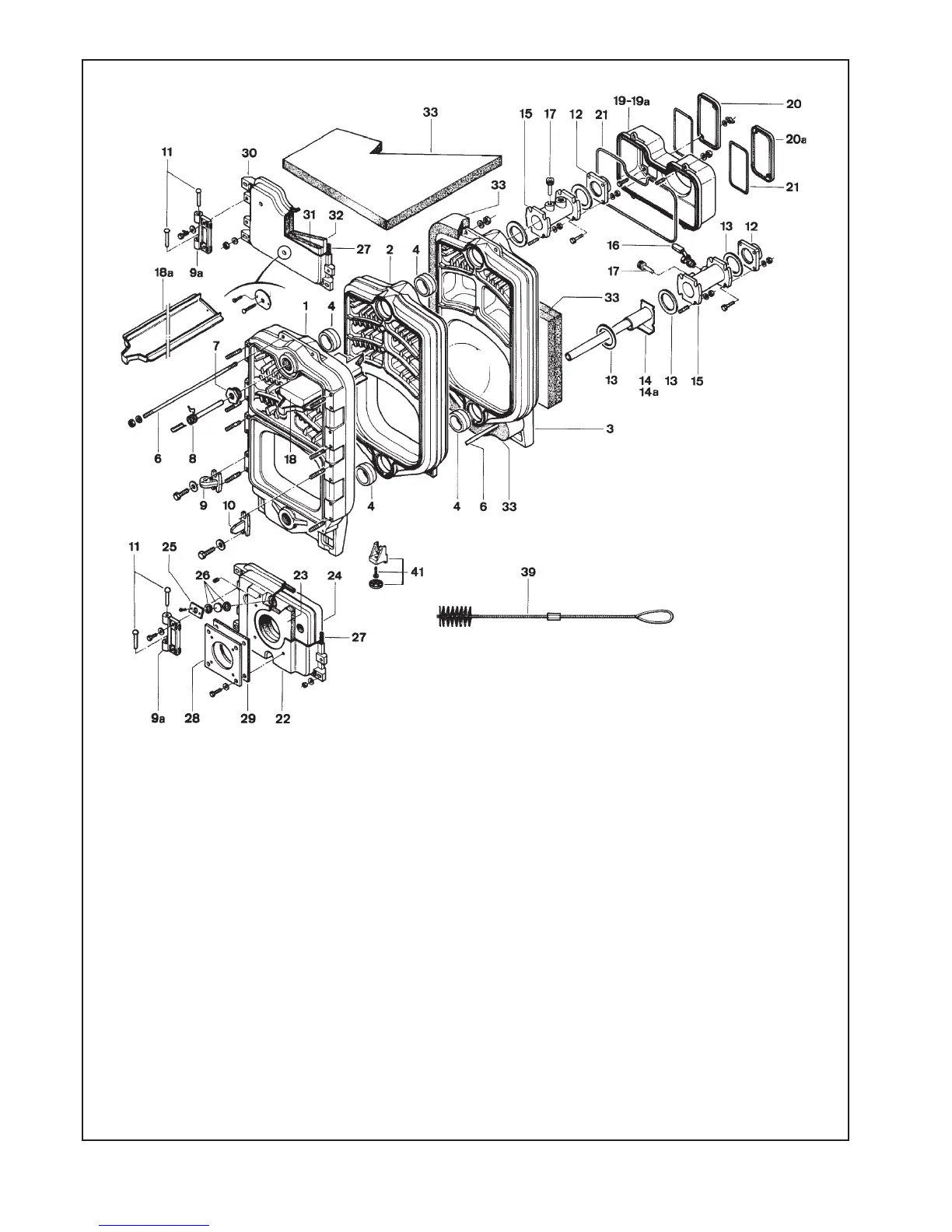

Fig. 9
14 Disriburor, Length 180
14a Distributor, Length 530
15 Flow and return manifold
16 Drain valve
17 Sensor pocket, Length 100 mm
18 Upper baffle
18a Lowe baffle
19 Smoke box Ø 180
19a Smoke box Ø 200
20 Flue-way hatch (L)
20a Flue-way hatch (R)
21 Leaktightness braid Ø 8
22 Chamber door
23 Internal insulation
24 External insulation
25 Sight flange
26 Sight glass and seal
27 Door seal Ø 16
28 Burner plate
29 Burner plate gasket
30 Cleaning access. door
31 Internal insulation
32 External insulation
33 Insulation body blanket
39 Cleaning brush
40 Screws bag
41 Complete adjustable leg
1 Front section
2 Middle section
3 Rear section
4 Nipple Ø 89
5 Sealing cord Ø 7
6 Tie-rod
7 Reducer
8 Sensor pocket, Length 200 mm
9 Door hinge
9a Door hinge
10 door guide
11 Door pin
12 Welding flange
13 flange gasket
02236-00
