Char-Broil Performance T-47D User Manual

ASSEMBLY
1
2
14
Left side panel
(with large hole)
Right side panel
Magnet
Front
Bottom shelf
Rear
Front
A

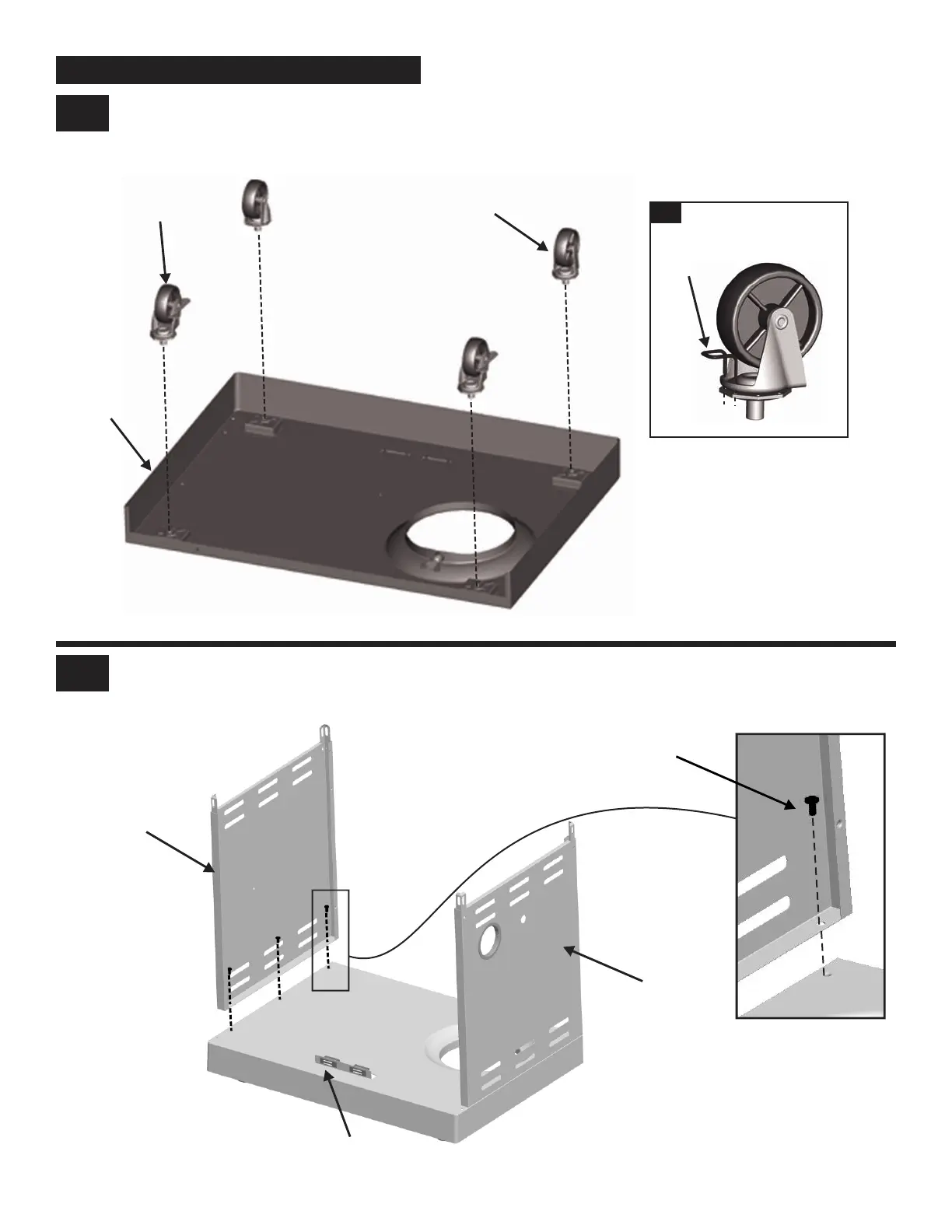

Place bottom shelf upside down. Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin
the caster clockwise into the threads on the bottom shelf until secure. Remove the Caster Pin and repeat for
remaining casters. Make sure the two locking casters are secured at the rear and the non-lock casters are
secured at the front. After all 4 casters are secured remove the Caster Pin and save for future maintenance.
Caster Pin
Locking caster
Non-lock caster
Attach side panels to bottom shelf using three 1/4-20x1/2” screws per panel.
IMPORTANT: Panel with large hole must be on Right side of bottom shelf.
1/4-20x1/2” screw

Char-Broil Performance T-47D Specifications

General

Brand	Char-Broil
Model	Performance T-47D
Category	Grill
Language	English
