Char-Broil Performance T-47D User Manual

18
17
Flame tamer
Pin
Top of
door
Hinge pin
on bottom
of door
PRESS
Right door
Left door
Door handle
#10-24x3/8" screw
Front brace

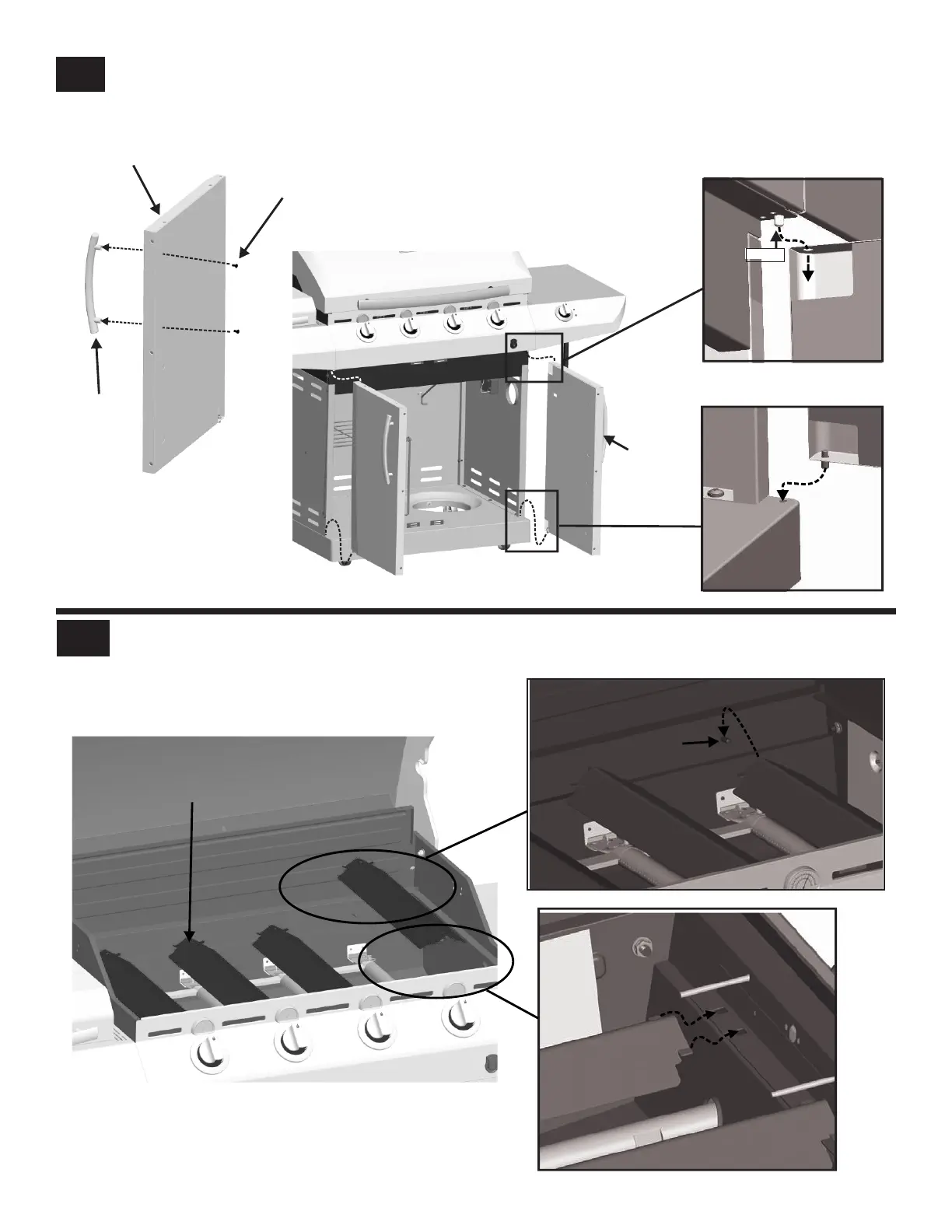

Attach door handle to left door using two #10-24x3/8" screws. Repeat above for right door.
Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge
hole on top of door, and release hinge pin into door.
Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end
on pins in back of firebox.
Slide into slots
24

Char-Broil Performance T-47D Specifications

General

Brand	Char-Broil
Model	Performance T-47D
Category	Grill
Language	English
