Char-Broil Performance T-47D User Manual

15
16
23
+
-
Electronic
ignition module
Nut
Cap
AA battery
Right side panel
B
C
A
2
1
Wires
3
4
(a)
5
(b)

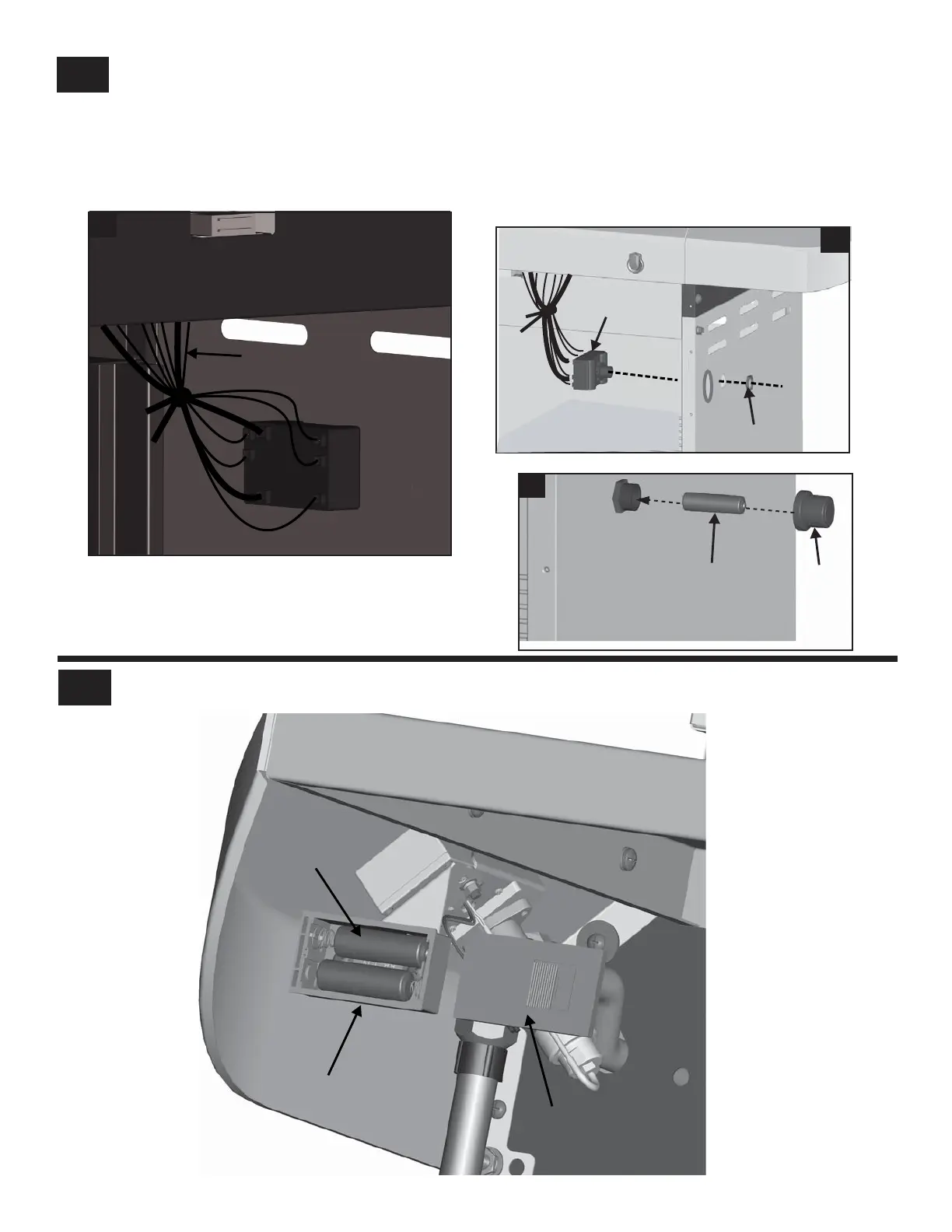

Inside of cart, connect each of the wires from main burner electrodes and sideburner electrode into the back of
electronic ignition module. Total (5) connections.
Connect the two wires {(a) and (b)} from switch wiring harness into the back of the electronic ignition module.
Total (2) connections, shown A.
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side
panel with the nut, shown B.
Insert AA battery into ignition module, negative (–) end first. Then put on the cap, shown C.
NOTE: Switch terminals are larger than
electrode terminals and should only be
installed in location shown as (a),(b).
Battery box
AA battery
Cover
On back of right side fascia, open battery box by sliding its cover. Put two AA batteries in the box and then replace
the cover.
