OM2137 B.2 ™ & © Char-Griller / A&J Mfg. 6

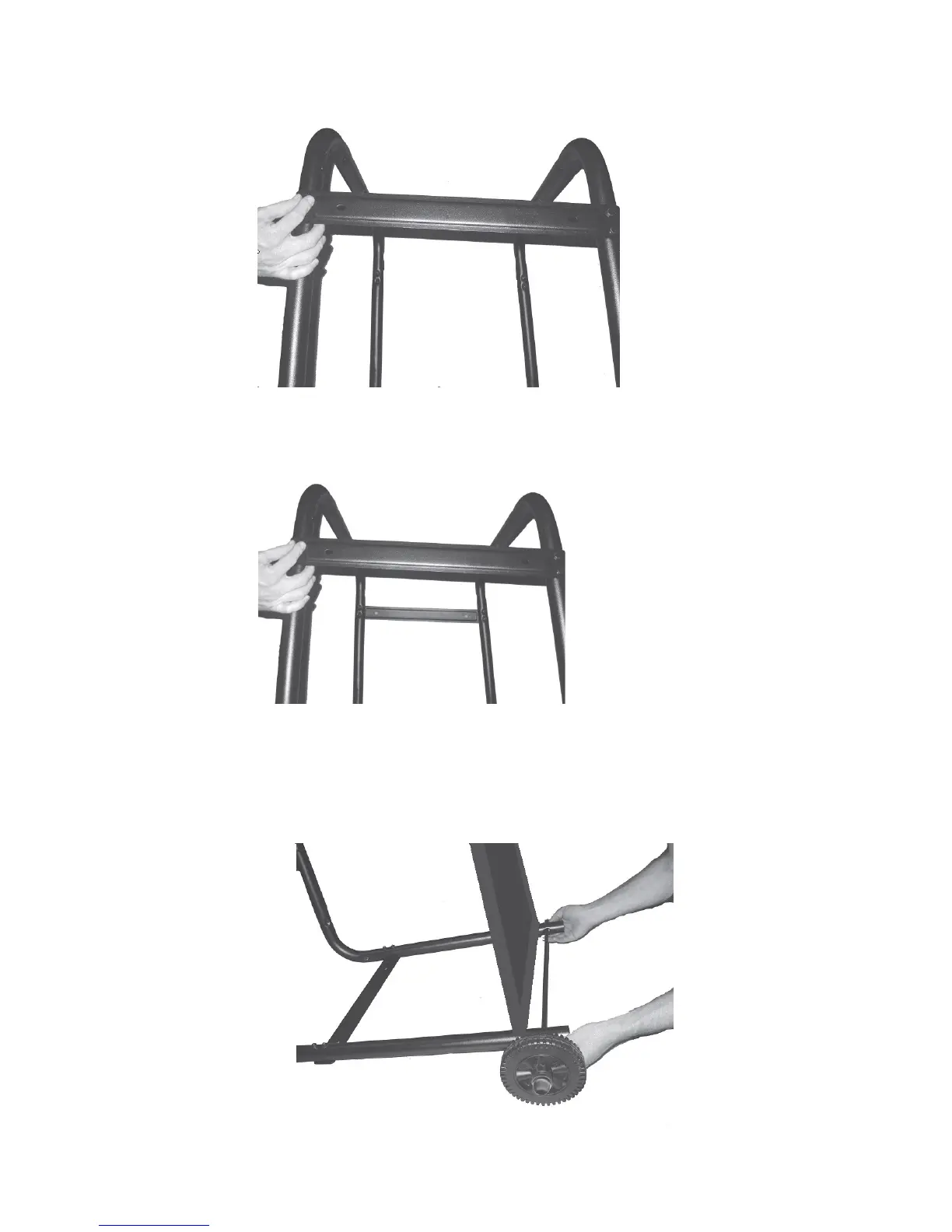

4. Attach LEG BRACE to the outside of the LONG LEG using 2 1/4” Hex Bolts and
Nuts as shown but only finger tight.
5. Attach the other end of the LEG BRACES to the corresponding legs using 2 1/4"
Hex Bolts and Nuts but only finger tight. See below.
6. Insert the AXLE through the SHORT LEGS and through the BASE. Slide WHEELS
onto AXLE, install washer and cotter pin then hammer HUB CAPS onto each end of
the AXLE to secure WHEELS.
