OM2137 B.2 ™ & © Char-Griller / A&J Mfg. 8

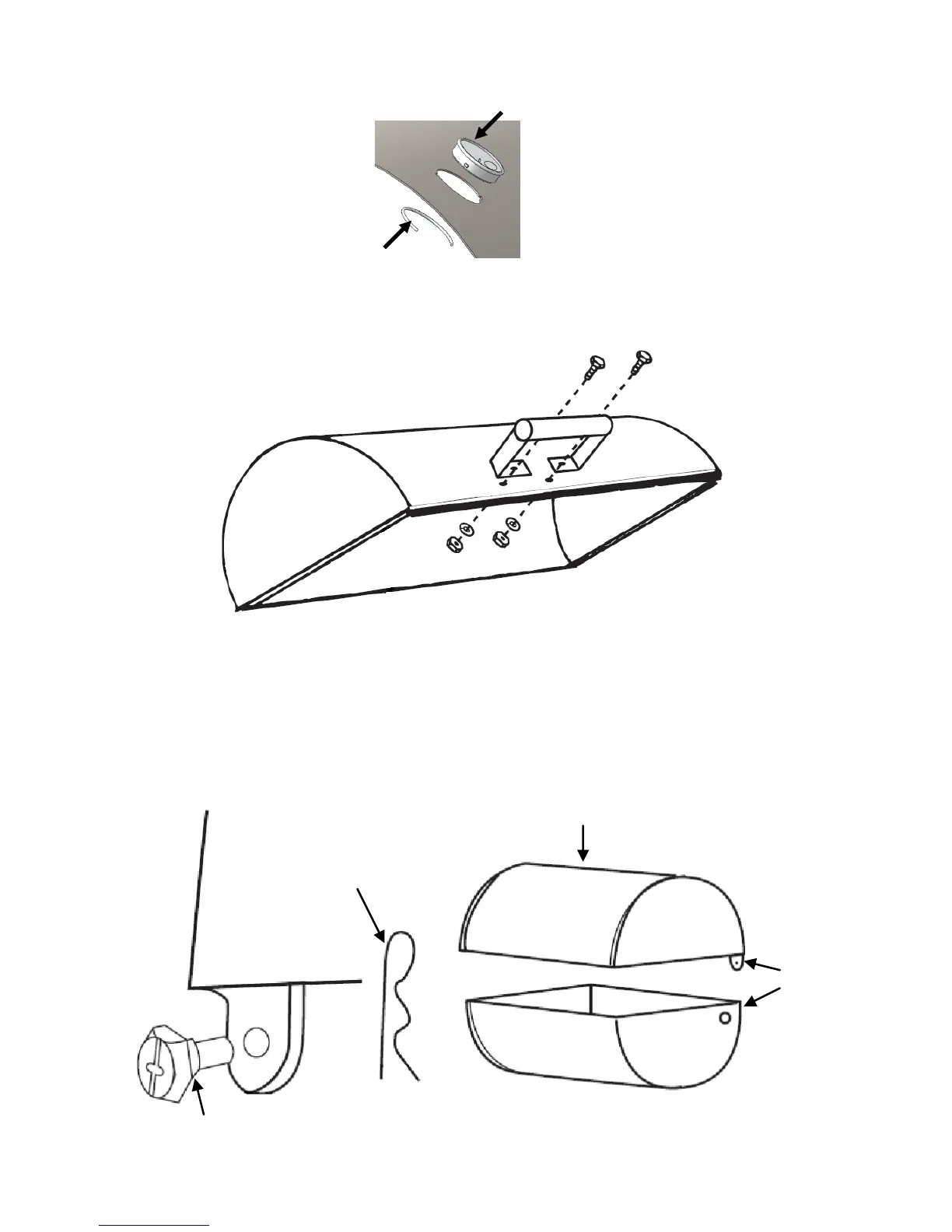

10. Insert HEAT GAUGE through hole in hood (from outside) and push the SPLIT
RING over tabs on the side of HEAT GAUGE from inside the hood.
11. Attach WOOD HOOD HANDLE to the center of the HOOD with two (2) 3/4" hex
bolts, lock washers, and hex nuts. See below.
12. Set the HOOD, in the CLOSED POSITION, on top of the bottom Half of the grill
body. Line up the Hinge holes and insert the Hinge Pins. This may require lifting
up on the back of the Hood. Then, carefully open the hood, making sure to not
let the Hinge Pins fall out, and insert the Hair Cotter Pins into the Hinge Pins.
See below.
Hood
Hinge
Hair Cotter Pin
Hinge Pin
