Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.
CAUTION! Some parts may
contain sharp edges.
Wear protective
gloves if necessary.

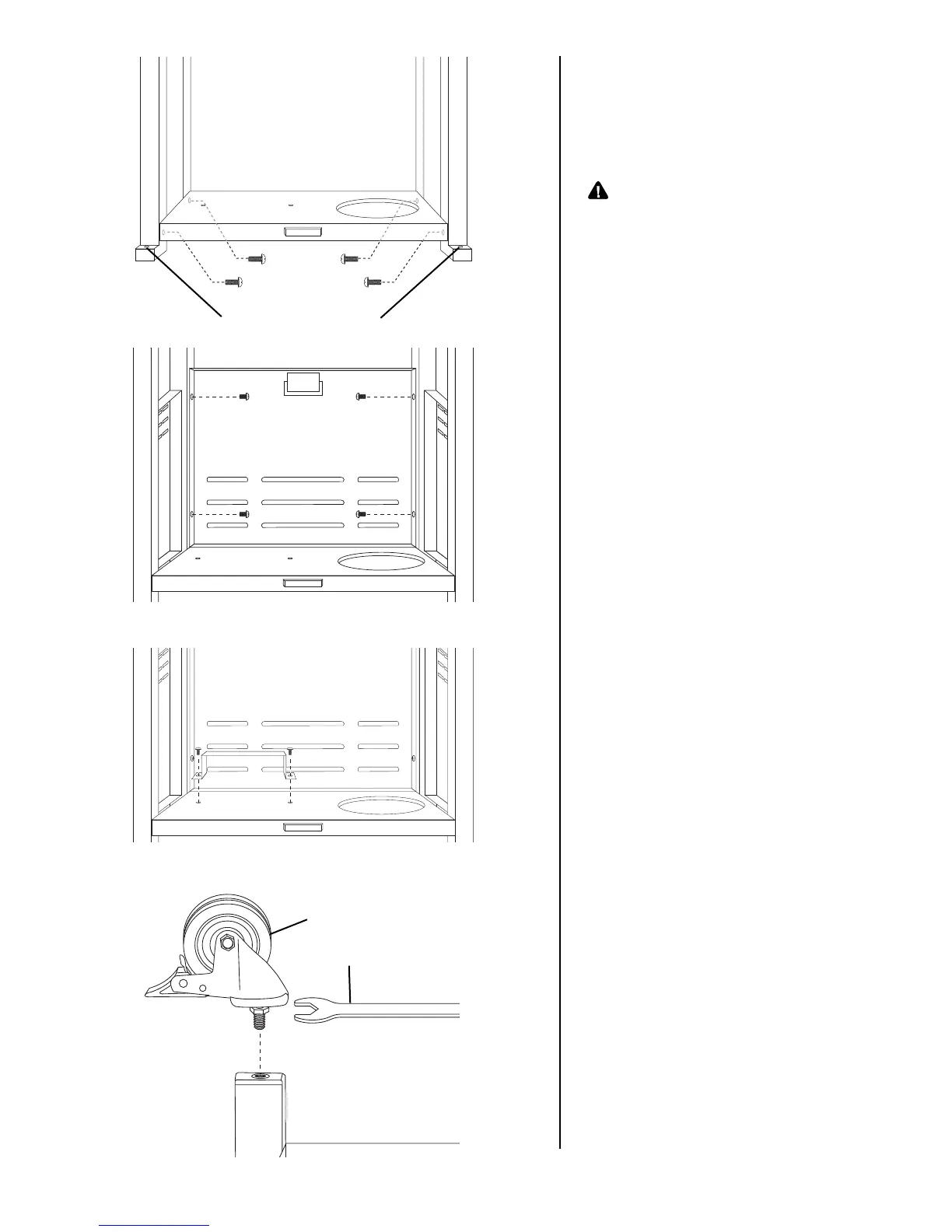

Step 1
Attach cart base to side panels.
Insert four M6 X 12mm bolts (silver)
through cart base and into legs and
tighten securely. Be sure the door
hinge pin holes face forward.
Step 2
Attach back panel to legs using
four M6 X 12mm bolts (silver).
Step 3
Attach loop strap bracket onto
bottom cart shelf by using two
M6 X 12mm bolts (silver).
NOTE: With the help of a friend, turn
the cart assembly over. Try to
minimize the stress to the
legs.
Step 4
Attach locking casters to the bottom
of the legs. Tighten caster bolts
securely using hex nut wrench
provided in parts pack.
23
Locking Caster
Hex Nut Wrench
Door Hinge Pin Holes
