16

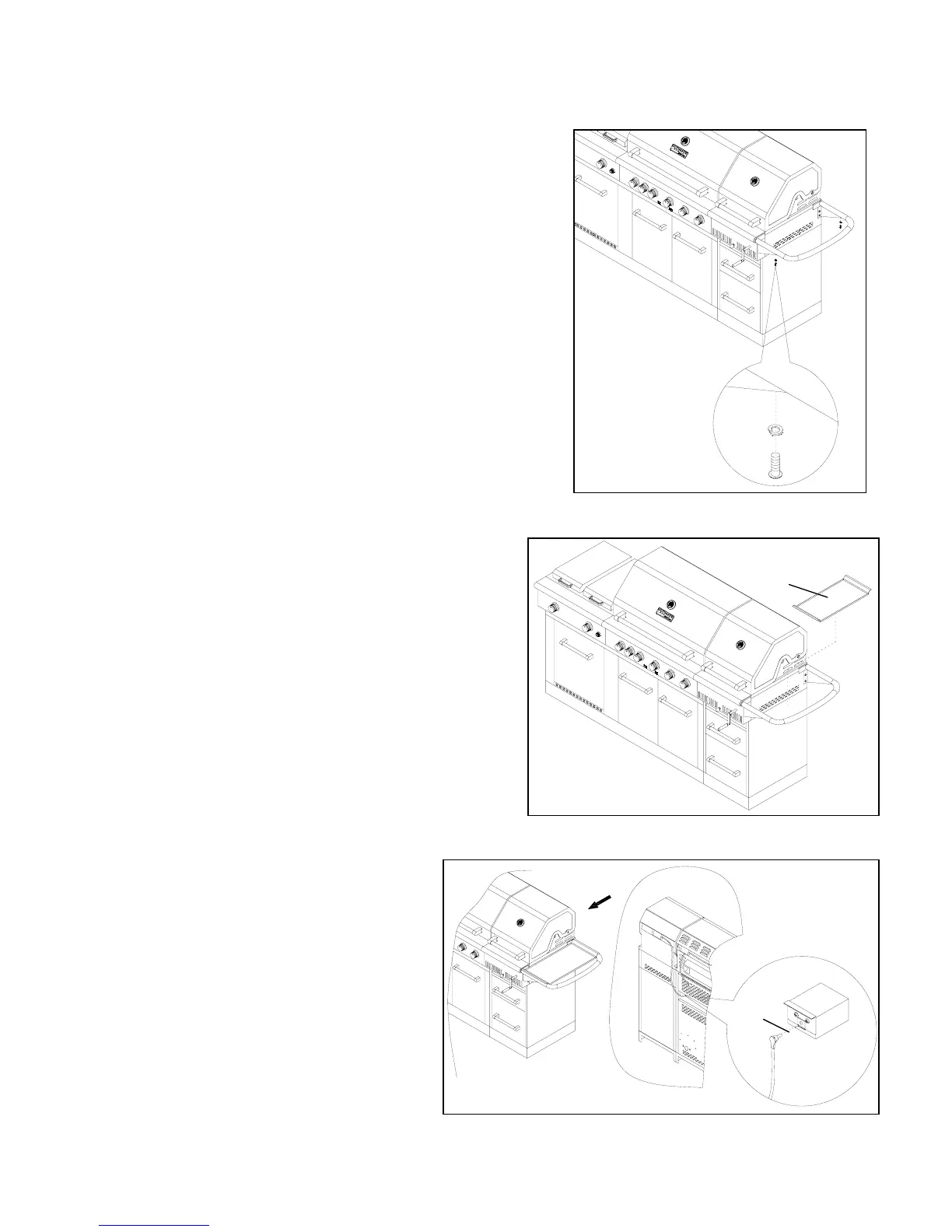

Use two 5/32-in. x 10mm truss head screw (AA) to keep the
support piece in place as shown in Fig. 18.
Note: Two screws for each bottom side of the push bar.
14. Side Shelf Tray Installation
Remove the side shelf tray (P) from carton, and put it
onto the push bar as shown in Fig.19.
15. Lamp Wire Installation
HINTS: Stand behind grill.Attach lamp
wire from charcoal grill light to the
junction box on the left panel(from
behind). See Fig. 20.
Fig. 20
Fig. 19
P
A
Fig 18
2 X
To Next Page
