9

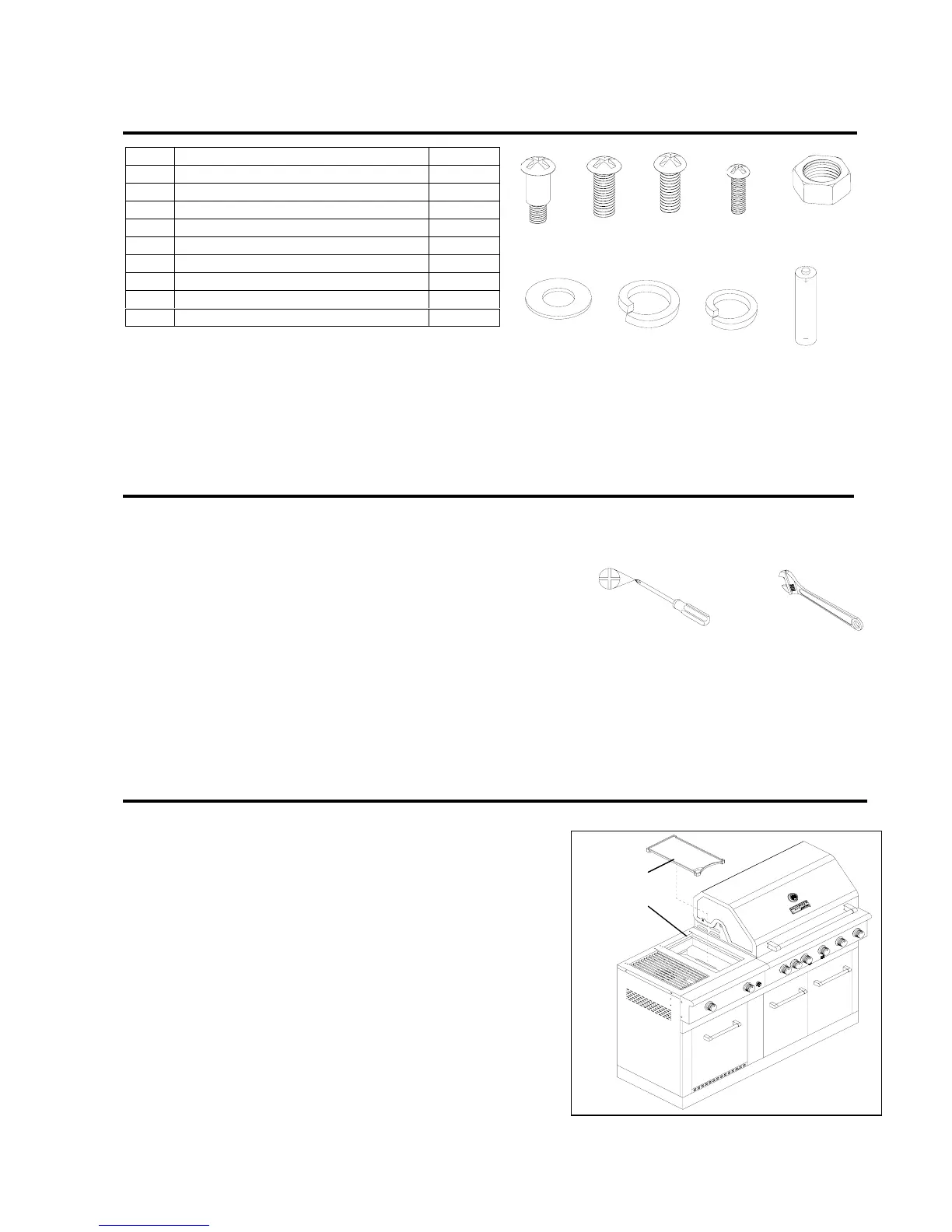

Pack Description Quantity
AA 1/4-in. x 23-mm Main Lid Screw 2 pcs.
BB 1/4-in. x 12-mm Truss Head Screw 36 pcs.
CC 1/4-in. x 15-mm Truss Head Screw 12 pcs.
DD 5/32-in. x 10-mm Truss Head Screw 9 pcs.
EE 1/4-in. Nut 4 pcs.
FF 1/4-in. Flat Washer 10 pc.
GG 1/4-in Locking Washer 44 pc.
HH 5/32-in Locking Washer 9 pc.
II Battery AAA 1 pc.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare
parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts.
y Estimated Assembly Time: 50 minutes
y Tools Required for Assembly:
Phillips Screwdriver (not included) and Wrench (not included)
y Note: The right and left sides of the grill are designated as if you are facing the front of the grill.
1. Griddle Assembly
Take the griddle (T) out of carton, and put it onto question
mark side burner as shown in Fig. 1.
HARDWARE CONTENTS
PREPARATION
ASSEMBLY INSTRUCTIONS
Fig. 1
AA BB CC DD EE
FF GG HH
II
T
Question mark
side burner
Philli
