7. HOW TO LOCK READER TO THE BASE

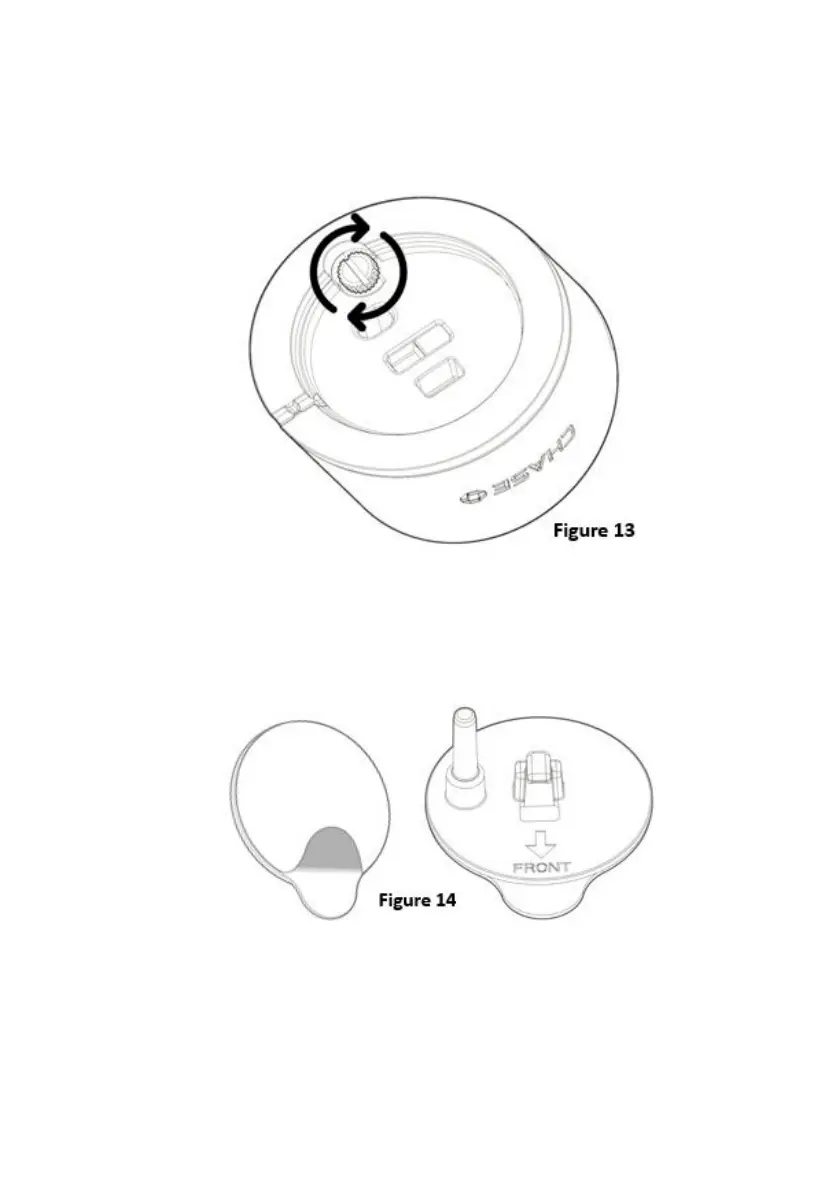

After placing the Reader onto the Base, turn over the full set to find the secure
screw. Use one cent US dollar coin or screw drive to lock the device as shown on
Figure 13.
8. HOW TO LOCK/REMOVE THE BASE TO THE HOLDER
Step#1: Peel off the adhesive tape overlay (shown as the grey area in Figure 14)
from the bottom of Base Holder Plate, and place the mounting kit on a clean table
surface where it wanted to be installed.
Step#2: Align the Base holder and anchor positioning pin. Then put the Charging
Base above the Base Holder Plate. Shown as Figure 15
Note: The FRONT refers to the LED light guide of Charging Base for customer facing.
