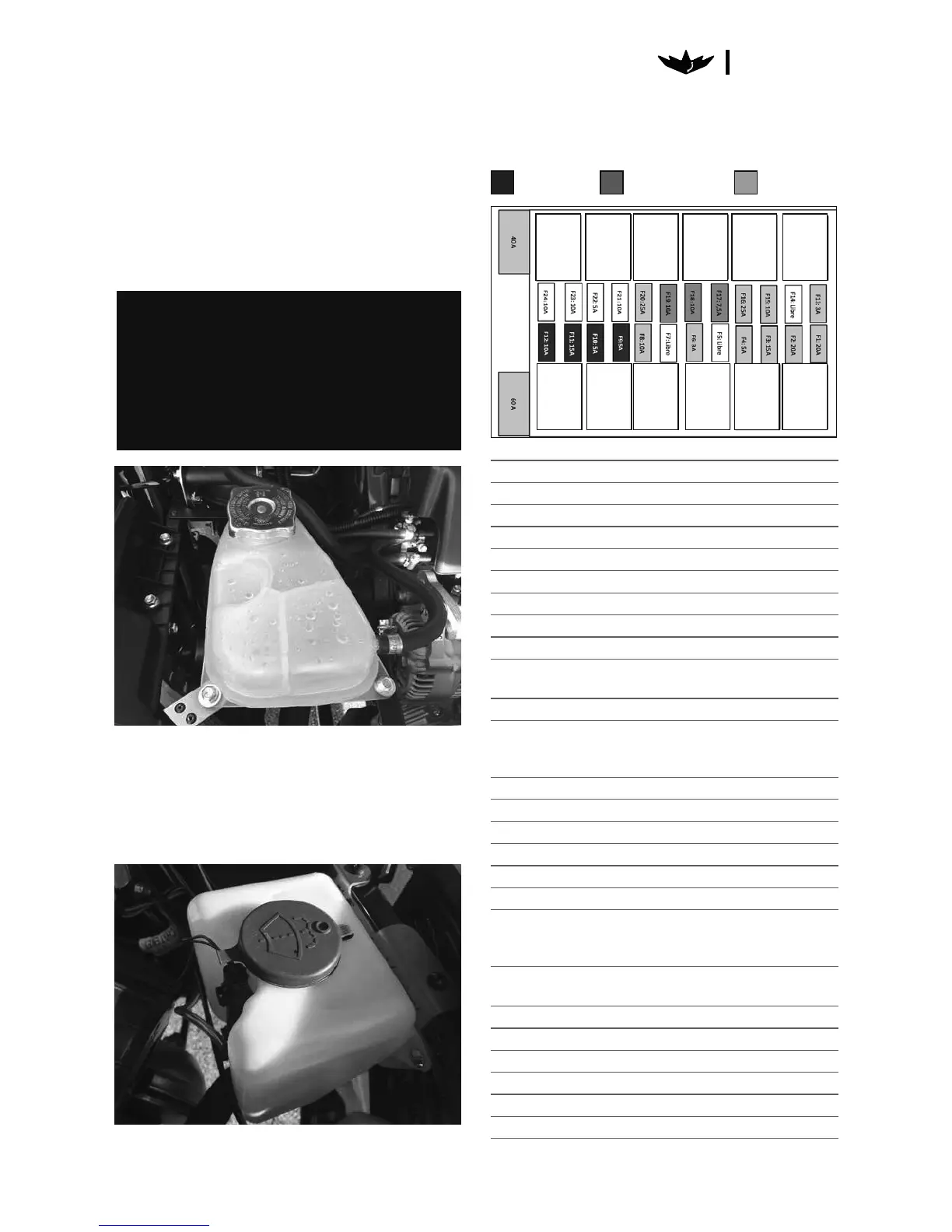

VEHICLE FUSE BOX
F60 General protection
F40 Alternator protection
F1 Permanent module
F2 Central locking system
F3 Left window module
F4 Right window module
F5 Free
F6 Panel
F7 Free
F8 Horn, alarm relay, turn signal control, radio
memory
F9 + engine start: diesel engine EVO pump
F10 + cockpit: module, neutral contactor, camera,
panel, relay coil R7, R6, R8, daylight, glass
top knob
F11 + HDI engine start
F12 Defrost, defrost relay
F13 Roof light, trunk light
F14 Free
F15 EVO engine radiator fan
F16 Relay starter, alternator relay
F17 STOP switch, all STOP and reverse lights,
reverse switch, reversing control unit, radio,
12V outlet, headlight, warning, daylight
F18 Front wiper motor, indicator lights, wiper
blade
F19 Ventilation switch, heating block
F20 Pre-heating and spark plug relay EVO
F21 Headlight
F22 Rear fog lamp
F23 High beams
F24 Anti-fog front relay, anti-fog front, day light
Start up
Accessories Permanent
LEVELS
COOLANT
Make check or check coolant level (coolant
level must always be between MIN and
MAX).
Front fog
(option) relay
Relay defrosting
rear window
Horn /
alarm relay
Centralized /
tailgate relay
Rear fog relay
Glow plug relay
engine EVO
Intermittent relay
/ front wiper
Start excitation
relay
EVO engine
alternator
excitation relay
GLASS CLEANER
Make check or check the level of the wiper
liquid in the nozzle.
WARNING
Do not cover the nozzle when the
engine is hot.
It should be done with a cold engine
to avoid burns.
