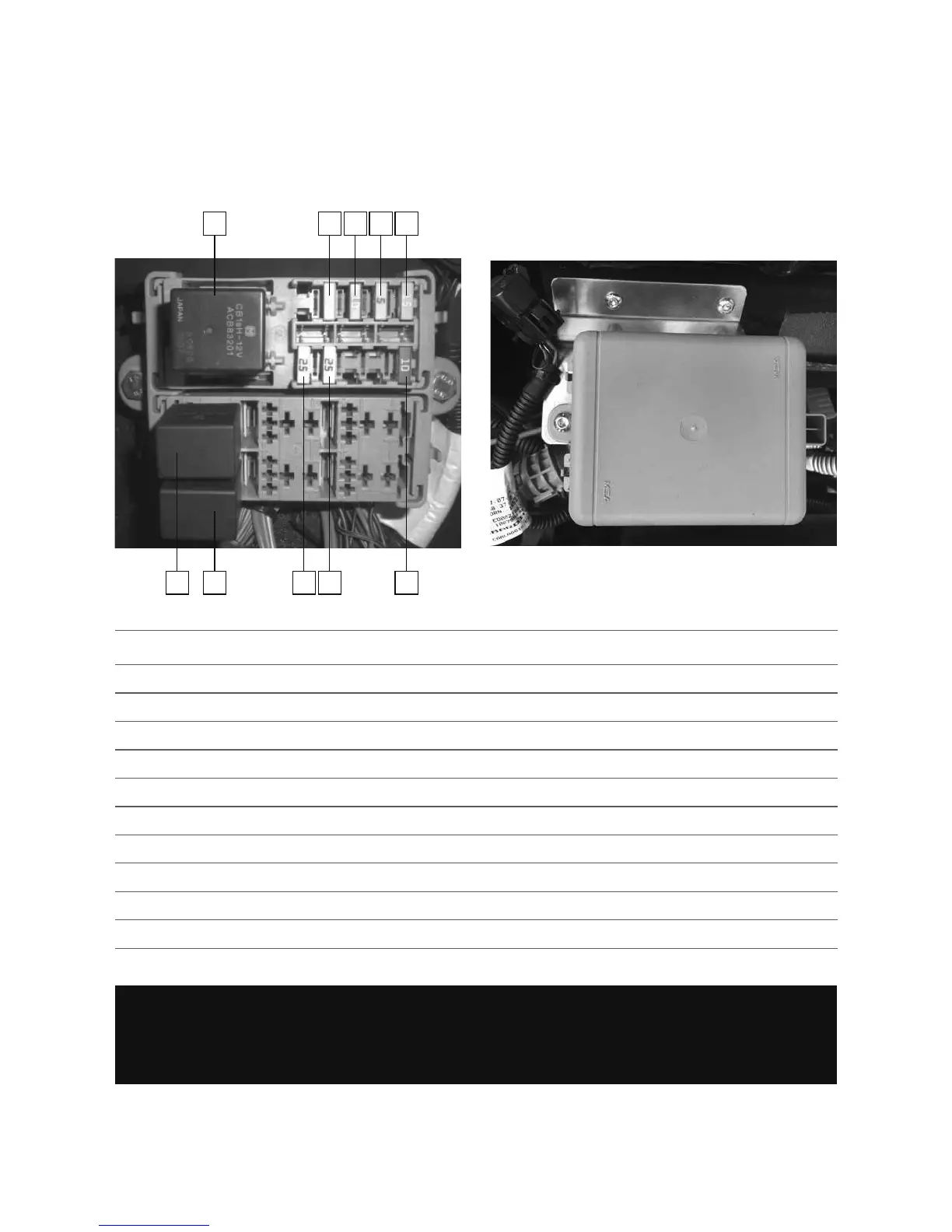

ENGINE FUSE BOX
RC
R1
F4
R4
F3
F10
F2
F9
F1
F6
FUSE AND RELAY
F1 Electric fan fuse 15 A
F2 Pump fuse 5 A
F3 Diagnostic fuse 10 A
F4 Fuse 15 A
F6 Fuse 10 A
F9 Candle fuse 25 A
F10 Candle fuse 25 A
R1 Electric Fan Relay 30 A
R4 General relay 30 A
RC Candle relay 70 A
ATTENTION
When changing a fuse, always observe the amperage (risk of fire)
