4

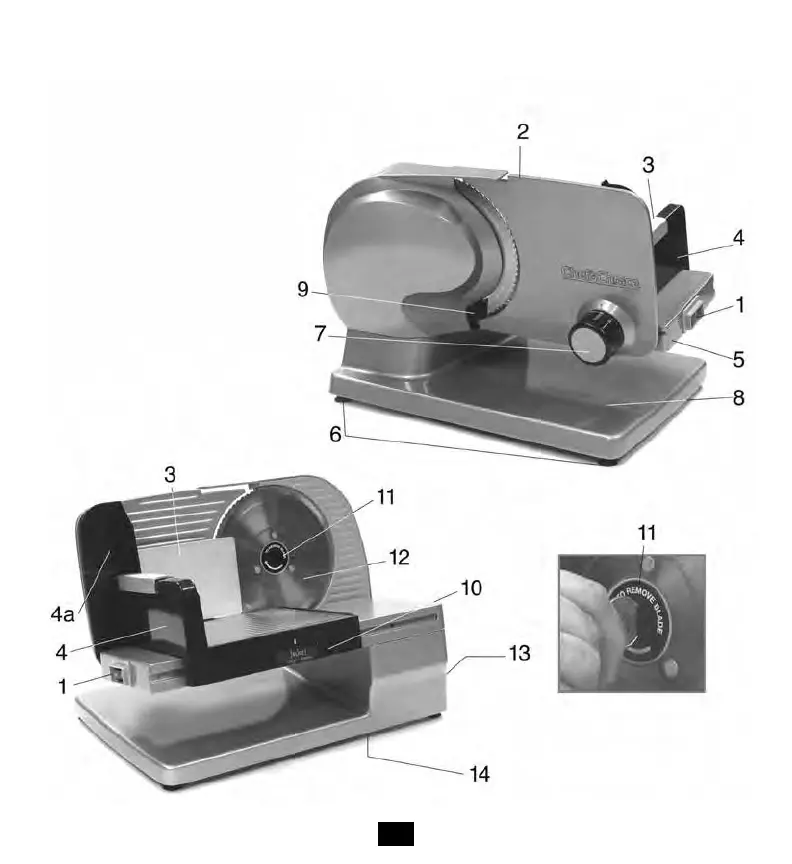

Parts List*
1. On/Off Power Switch
2. Thickness guide plate
3. Food pusher, metallic
4. Food carriage
4a. Thumb guard plate
5. Carriage track
6. Rubber feet
7. Thickness control knob
8. Base pla te
9. Slice deflector
10. Carriage “Lock/Remove” control
11. Blade fastening screw
12. Blade
13. Cord storage compartment
(see Figure 3)
14. Fuse (under bottom, see Figure 10)
*Tray (not shown) included
