Electric wiring requirements
The cooker MUST be installed in compliance with
• WiringconnectionsinAS/NZS3000WiringRules
• Localregulations,municipalbuildingcodesandother
statutory regulations
• DataPlate–Givesinformationabouttheratingand
is located behind the bottom of the oven door
• Circuitdiagram–Islocatedonthebackpanelof
the appliance
• AfunctionalswitchMUSTbeprovidedneartheappliance
inanaccessibleposition(AS/NZS3000–Clause4.7.1)
• WiringMUSTbeprotectedagainstmechanicalfailure
(AS/NZS3000–Clause3.9).
• Thecookerrequiresameansofallpoledisconnection
incorporated into the fixed wiring. This MUST have a
disconnection gap of 3mm.
• ThecookerMUSTbeproperlyearthed.
• Whenconnectionsaremadetoamultiphase230/240V
supply, the bridge piece MUST be removed from between
the active connections.
• NZOnly:Theappliancemustbeconnectedtothesupply
by a supply cord fitted with the appropriately rated plug
that is compatible with the socket-outlet fitted to the final
sub circuit in the fixed wiring that is intended to supply
this appliance.
Hard wiring
1. Remove rear panel.
2. Fit wires through hole at bottom centre using the
appropriate gland to protect insulation of wires from the
hole edge. Note that the secondary insulation of the wires
will probably need to be removed to fit through gland.
Iftheconduittoapplianceisrequiredtobenddueto
rearwallanelbowmayberequiredtoachievethis.
3. Set the length of wiring from the gland to terminal block,
ensuring length is sufficient but not excessive.
4. Make connections to terminals and engage wires into
plastic clip. Cable tie as per diagram and secure plastic
clip with two long screws supplied.
5. Replace rear cover.

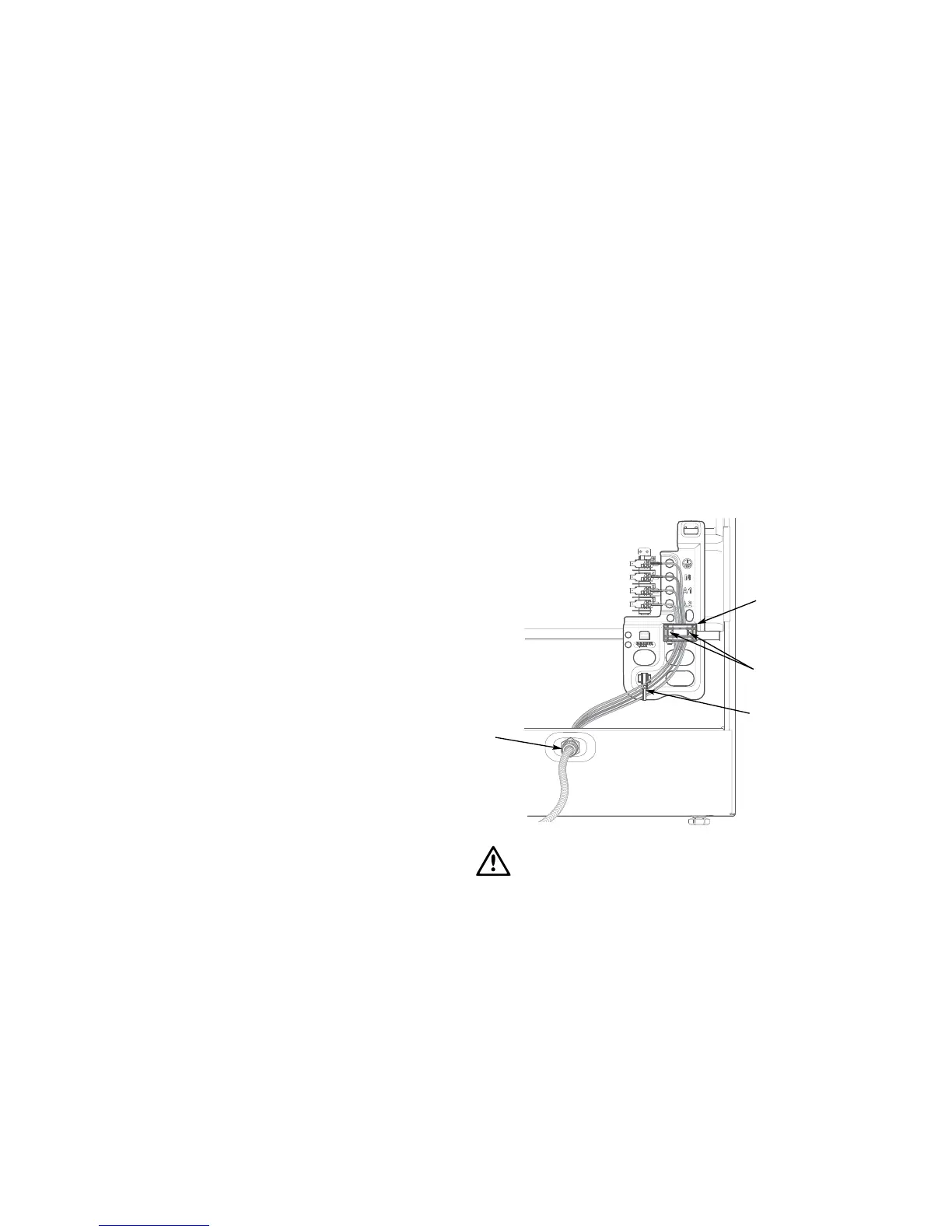

Cable Tie
Plastic clip screw
securing points
Gland
Plastic Clip
WARNING
warning
Warning! Ensure wires cannot contact hot element ends or
sharp edges.
Gas requirements
The cooker MUST be installed in compliance with:
• TheAS5601(particularreferencetoclause4.8and5.12.1)
• Localgasttingregulations,municipalbuildingcodesand
other statutory regulations.
The cookers come in two gas types:
NaturalgasandPropane.Ifthecookerisrequiredtouse
ULPG, a conversion kit can be obtained by contacting the
Customer Care Centre for details. Before installation, check
that the cooker is suitable for the gas supply by looking at the
data plate behind the bottom of the oven door.
