installation

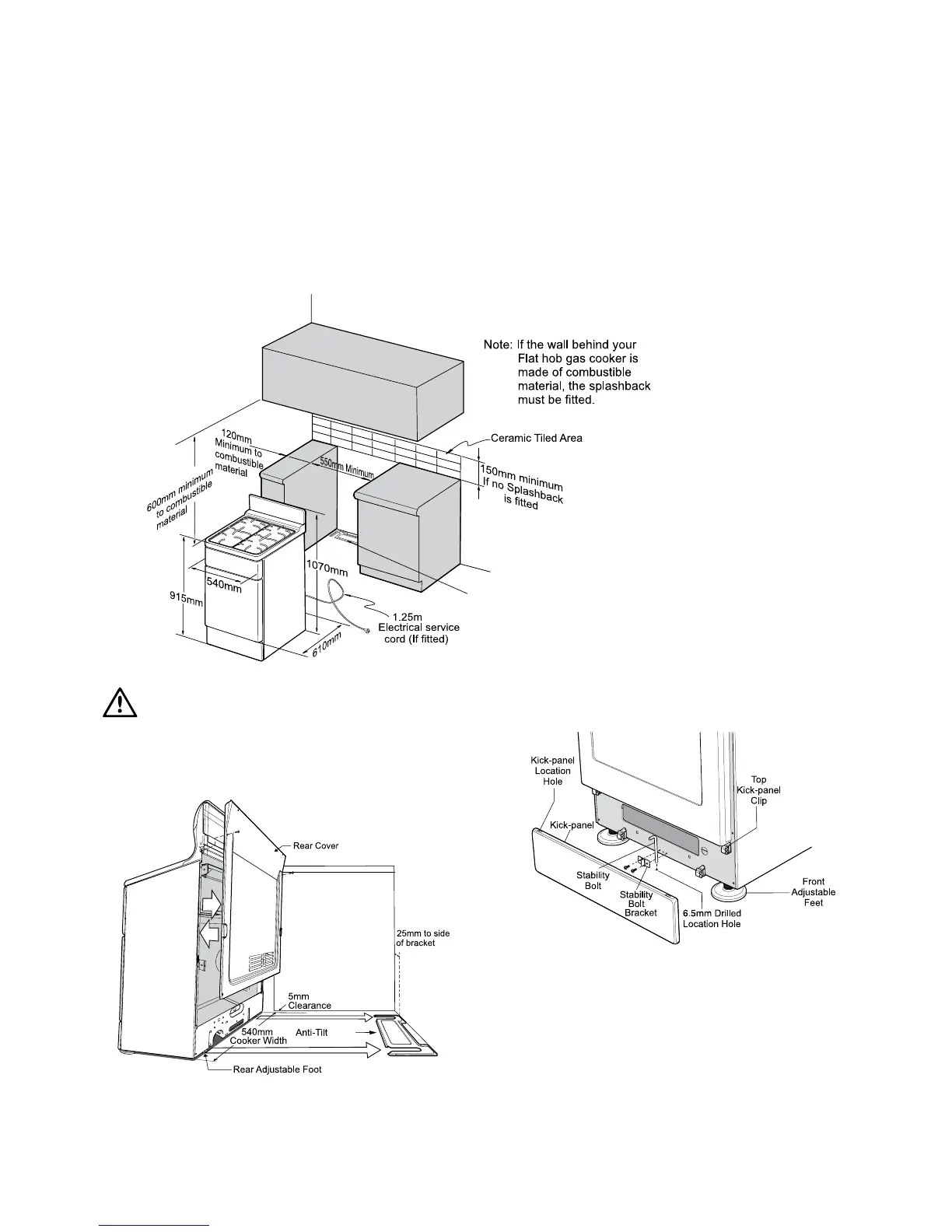

Location
The appliance has been designed to fit in a 550mm wide gap in kitchen cabinets or free space either side.
Make sure the top of the cooker is at lease 10mm higher that the level of the bench top.
warning
In order to avoid accidental tipping of the appliance
(for example, by a child climbing onto the open oven door),
the anti tilt plate and stabilising bolt MUST be installed.
Locate anti-tilt plate to the rear wall and 25mm from side of
cupboard. Securely fix anti-tilt plate to the floor with fasteners.
Adjustlevellingfeetoncookerasrequired.
1. To remove the small kick panel depicted, the panel must
be lifted upwards from the edge to release the clip from
each location hole. The larger style kick panels can be
pulled outwards to release from the clips.
2. Fasten the stability bolt bracket to the front frame with the
2 screws supplied.
3. Reposition cooker back into the anti-tilt plate and then
mark the position of the stability bolthole.
4. Pull cooker out and drill the bolthole, using a 6.5mm
masonry or wood drill. Minimum 30mm deep for concrete.
