REV. C PN J63143 - 5 -
Figure 2: Injector Placement
Use this information to complete the top three lines in Table 1 (below) by. For
example, if the Electrical Rating indicated on the data plate of the pump is
230V/60 Hz fill in the first line of the table below. Keep this information handy for
future reference and part replacement.
Figure 1 provides a quick reference for installation dimensional requirements.
Table 1: Technical Specifications
Feed Rate (GPD)
Feed Rate (LPH)
Maximum Pressure (PSI)
Maximum Pressure (Bar)
Maximum Ambient Temperature
ETL,
C
ETL, ETL
SAN
, NSF 50*
ABS or Polycabonate/PBT/15%GF
*Except 50GPD (7.9 LPH) and 80GPD (12.6 LPH) Feed Rate pumps.

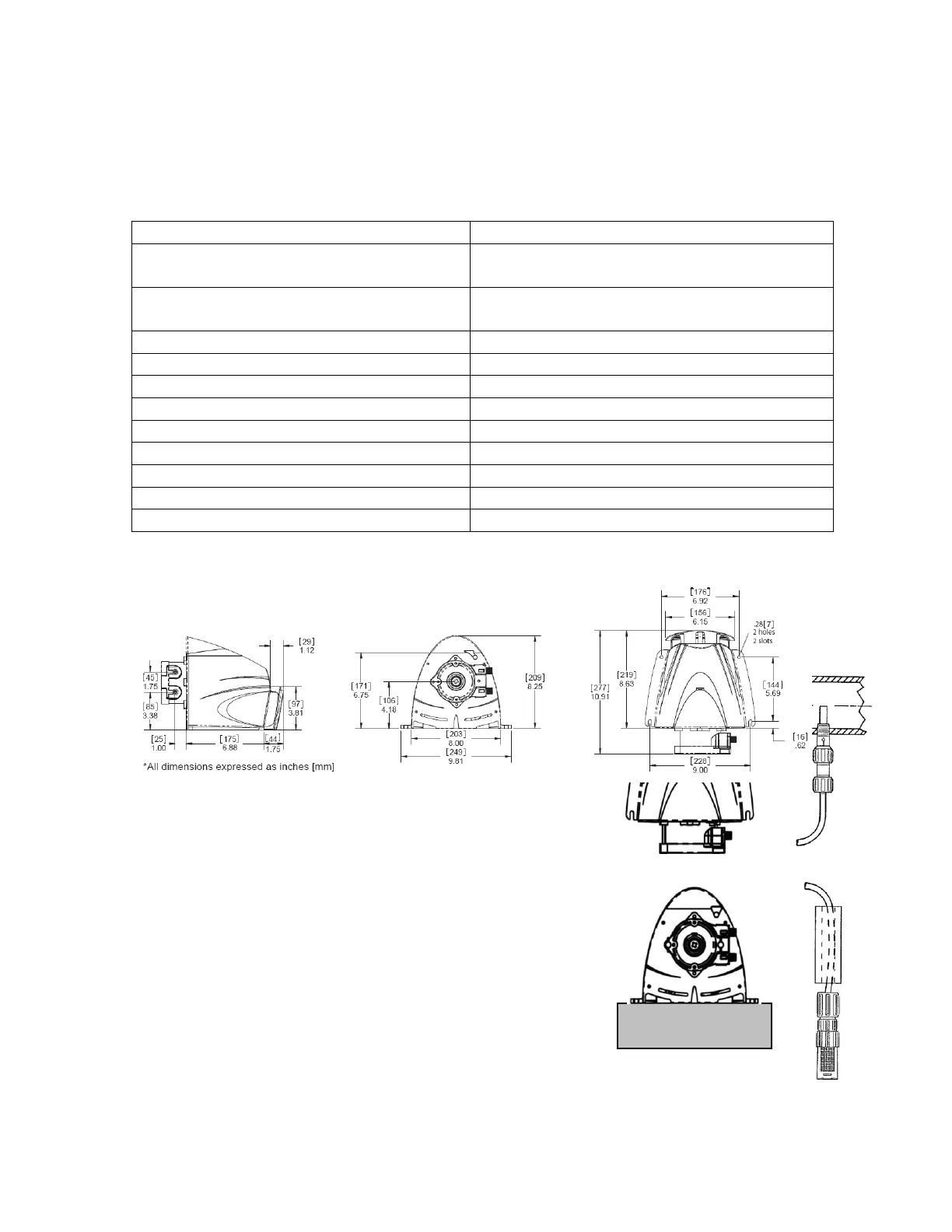

Figure 1: Pump Dimensions
4. Installation
NOTE: For pumps operating in swimming pool
installations the pump is to be supplied by an isolating
transformer or through a residual current device (RCD).
1) The pump can be installed either vertically or
horizontally (See Figure 2). Make sure to secure the
pump on a flat level surface that will support 50-lbs
(22kg) and secure with four .25-in (6mm) screws in the
holes provided. The guard snaps into the back of the
pump via three tangs -- see Figure 1. The pump
should be mounted with no less than 1.75-in
To Next Page
