Chenbro SR209/105/107/108

4-Ports Mini-SAS Backplane User’s Manual

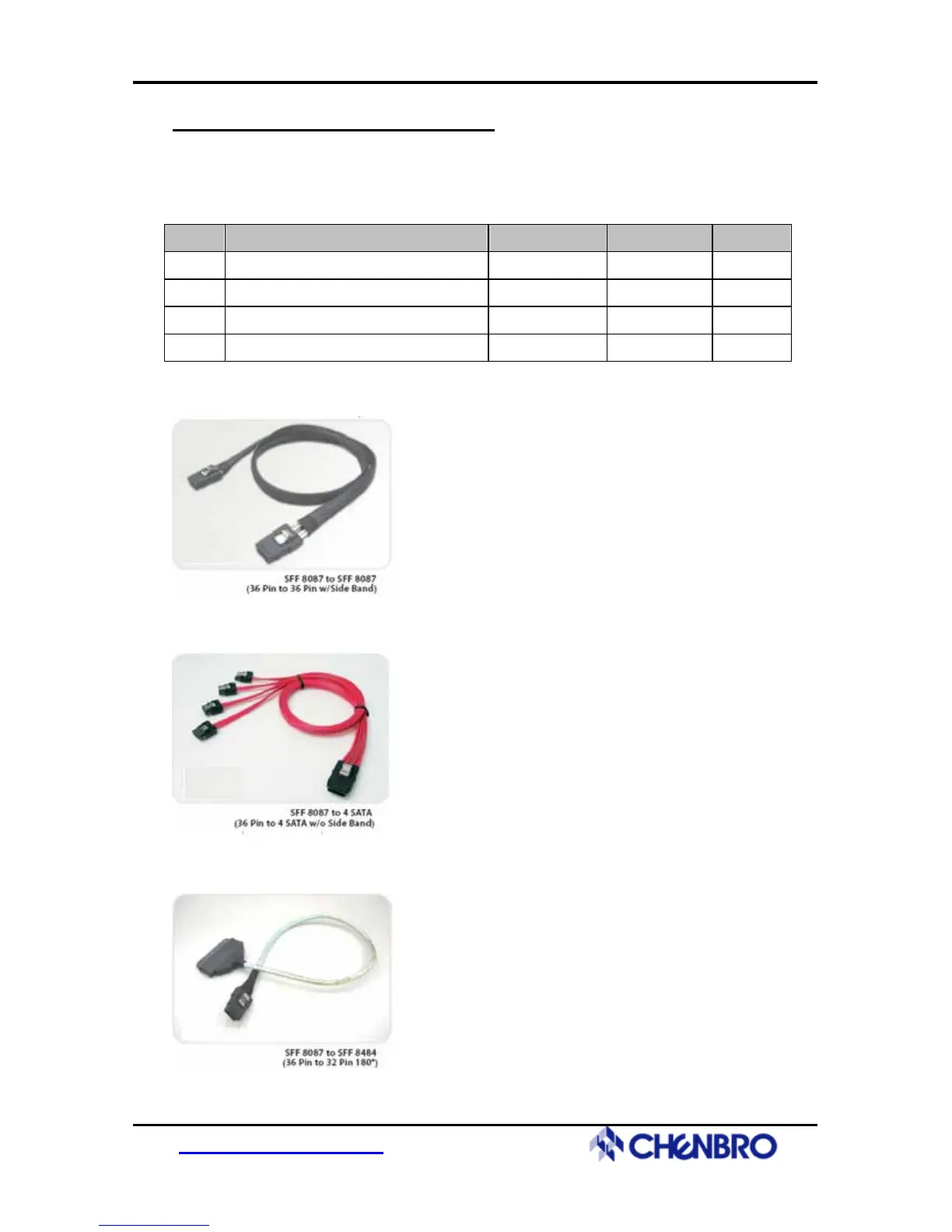

Backplane Cable Information

1. Please refer to below compatible Mini-SAS cable for HBA HOST

All of Mini-SAS cables are including SGPIO signal inside (Side Band)

Item no. Description Part No. Photo Fi

. No. Length

1 Mini-SAS(36 pins) to Mini-SAS(36 pins) 26H113215-012 A 0.6m

2 Mini-SAS(36 pins) to Mini-SAS(26 pins) (TBD) A

3 Mini-SAS(36 pins) to 4 x SATA(7 pins) 26H113215-010 B 0.6m

4 Mini-SAS(36 pins) to Wide Port (32 Pins) (TBD) C

Fig. A

Fig. B

Fig. C
