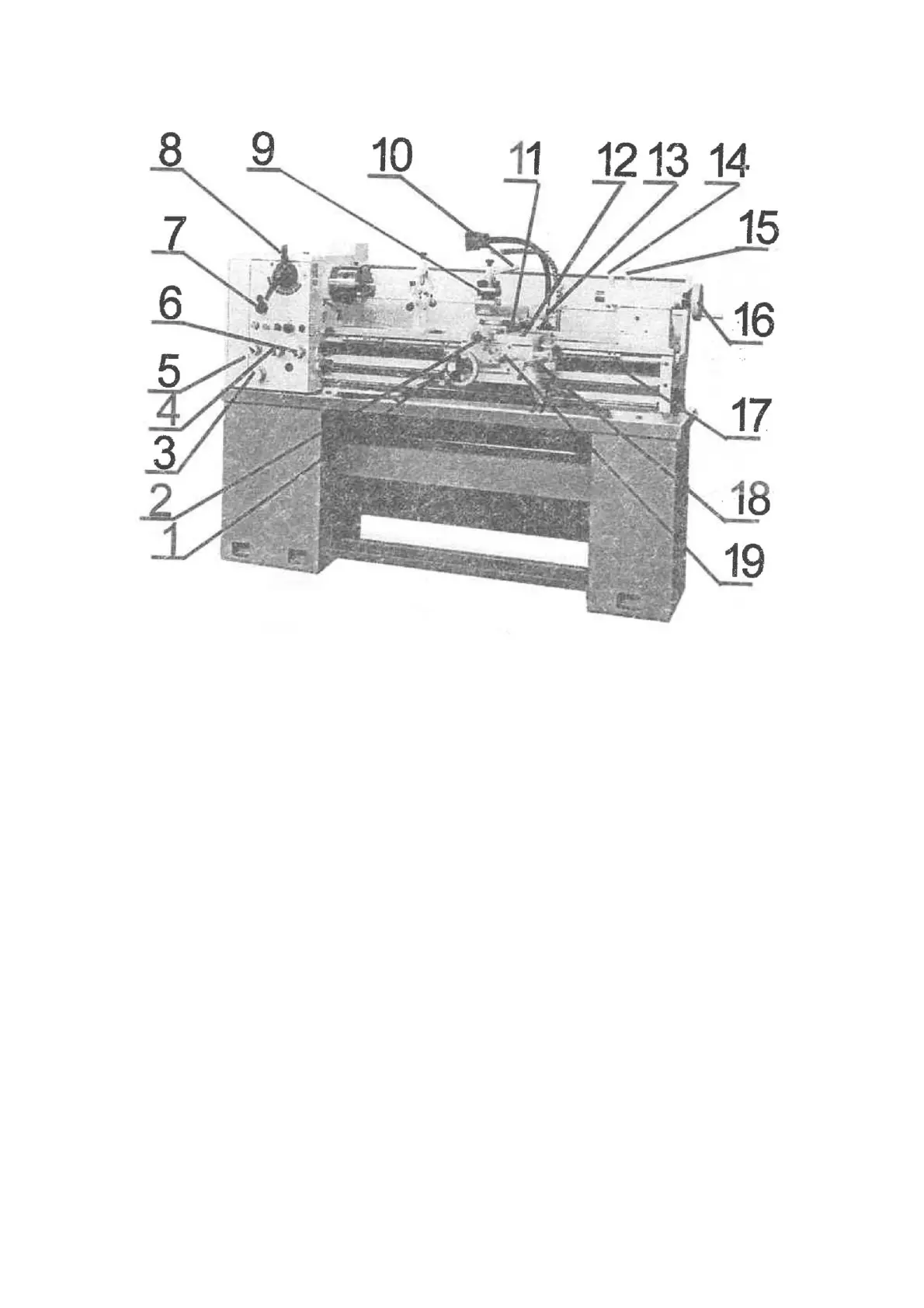

1. Longitudinal travel handwheel 11. Cross slide lock
2. Cross travel handwheel 12. Saddle lock
3. Feed selector handle 13. Compound rest handwheel
4. Feed selector handle 14. Tailstock quill clamp handle
5. Feed selector handle 15. Tailstock lock
6. Feed/thread selector handle 16. Tailstock handle
7. Feed direction selector 17. Forward/Reverse switch lever
8. Speed selector (2 pieces) 18. Thread cutting engagement lever
9. Compound rest lock 19. Feed axis selector
10. Tool post clamping lever
10. Spindle Speed Control
Ensure that the lubrication has been carried out as previously described.
When the main spindle is rotating, the gearbox and the feed axis can be put into operation.
The forward/reverse lever should be placed in neutral and the feed axis selector and
feed/thread indicators should be disengaged. Under these circumstances, both the
longitudinal and cross feed handwheels can be used to move the saddle.
