16
Remove all spare parts kit components from
packaging and place on the clean work surface.
15
Remove used gland cap screws.
2X2X

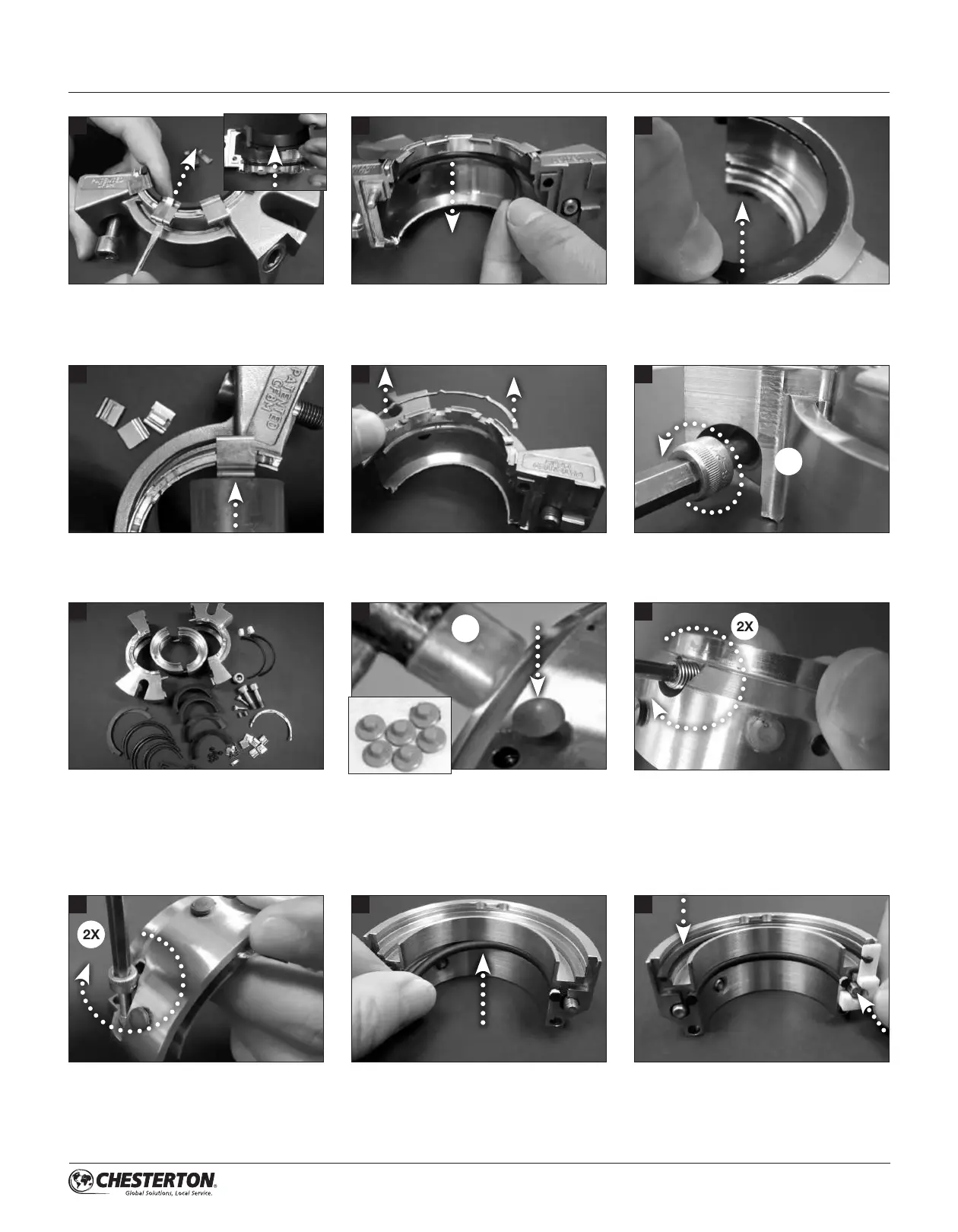

9.0 SEAL MAINTENANCE AND REPAIR cont.
Remove used stationary face O-Ring.
11
18
Lubricate threads with a recommended anti-
seize compound and install new holder set
screws (2 places) in rotary holder. Important:
Prior to installing the rotary holder on the shaft/
sleeve, check to ensure the holder set screws are
not protruding beyond the inside diameter of the
rotary holder.
2X
19
Lubricate threads with a recommended anti
seize compound and install holder cap screws in
rotary holder half.
2X2X
Install new centering buttons on outside
diameter of rotary holder. Important: Make sure
buttons are fully seated without deforming the
exposed heads
17
2X6X
12
Remove used stuffing box gasket from gland
recess and all adhesive residue with cleaning
solvent.
13
Remove used springs from gland halves by
tapping them from the gland half inside diameter
with a small hammer
Remove spring lifter halves from gland halves.
14
Apply a thin film of grease and install shaft
O-Ring halves in rotary holder halves. O-Rings
must protrude evenly from both holder half ends.
(Refer to step 9 on page 8).
20
10
Remove used spring retainers from gland
halves. Note: When last retainer is removed the
stationary seal ring can be removed
21
Install rotary holder shipping spacers in rotary
holder halves to hold the rotary face O-Ring in
place.
13
To Next Page
