When to Add Engine Oil (Z06 Only)

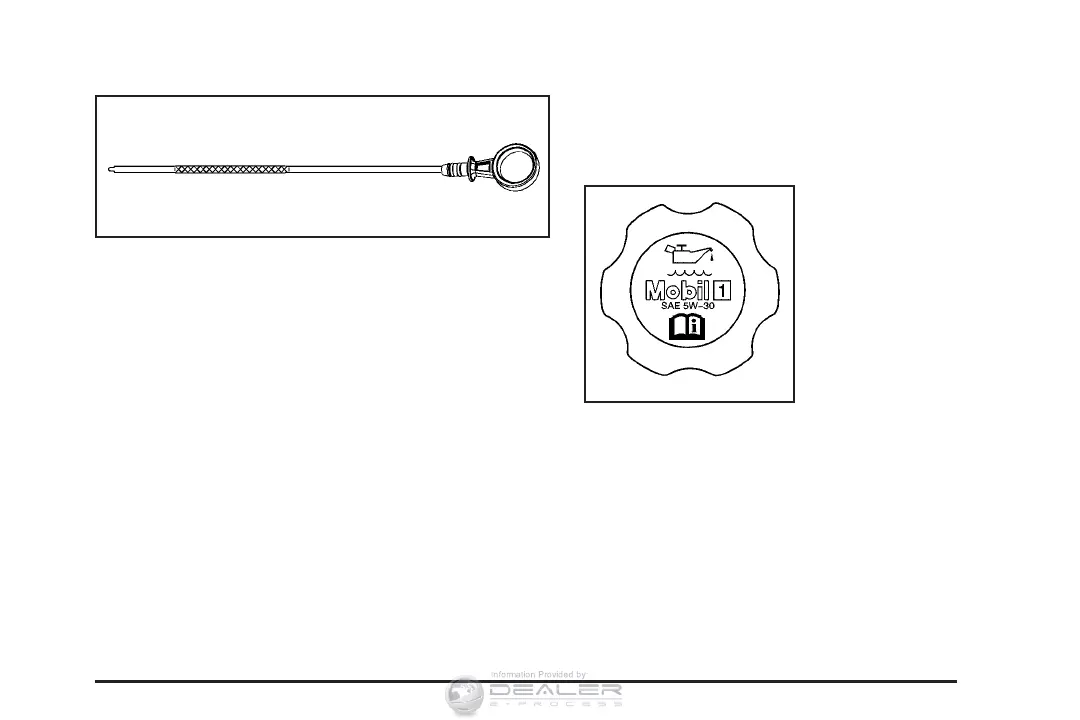

If the oil is below the cross-hatched area at the
tip of the dipstick, you will need to add at
least one quart/liter of oil through the oil fill cap
opening in the oil tank. But you must use the right
kind. This section explains what kind of oil to
use. For engine oil crankcase capacity, see
Capacities and Specifications on page 427.
See Racing or Other Competitive Driving on
page 290 for additional information on engine oil.
Notice: Do not add too much oil. If the engine
has so much oil that the oil level gets above
the cross-hatched area that shows the
proper operating range, the engine could be
damaged.
See Engine
Compartment Overview
on page 328 for the
location of the external
engine oil tank and
fill cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range. Push
the dipstick all the way back into the oil tank when
you are through.
335
