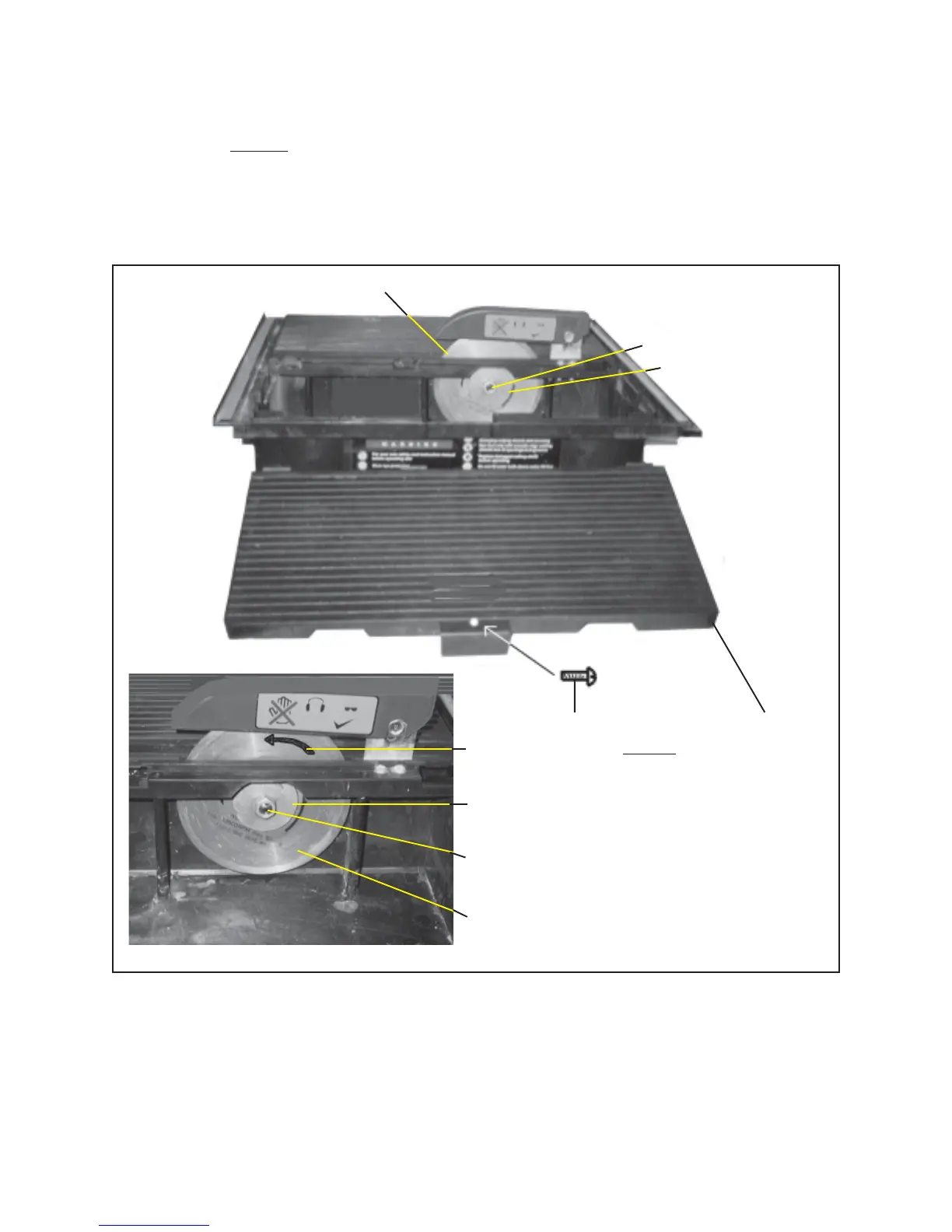

4. Remove the old Tile Saw Blade (part #36), and replace it with a new Tile Saw
Blade. NOTE: Make sure to install the new Tile Saw Blade with the arrow
pointing toward the front of the machine. (See Figure C.)
5. Replace the Outer Flange (part #37), and retighten the Nut (part #38) to secure
the Tile Saw Blade in place. (See Figure C.)
REMOVE SCREW (#16) TO REMOVE TABLE (#1)
NUT (#38)
OUTER FLANGE (#37)
4” TILE SAW BLADE (#36)
ARROW POINTS TO FRONT OF TILE SAW
NUT (#38)
OUTER FLANGE (#37)
4” TILE SAW BLADE (#36)
FIGURE C
6. Reinstall the Table (part #1), and secure it in place with the Screw (part #16).
(See Figure C.)
SKU 03733 PAGE 8
