- 19 -

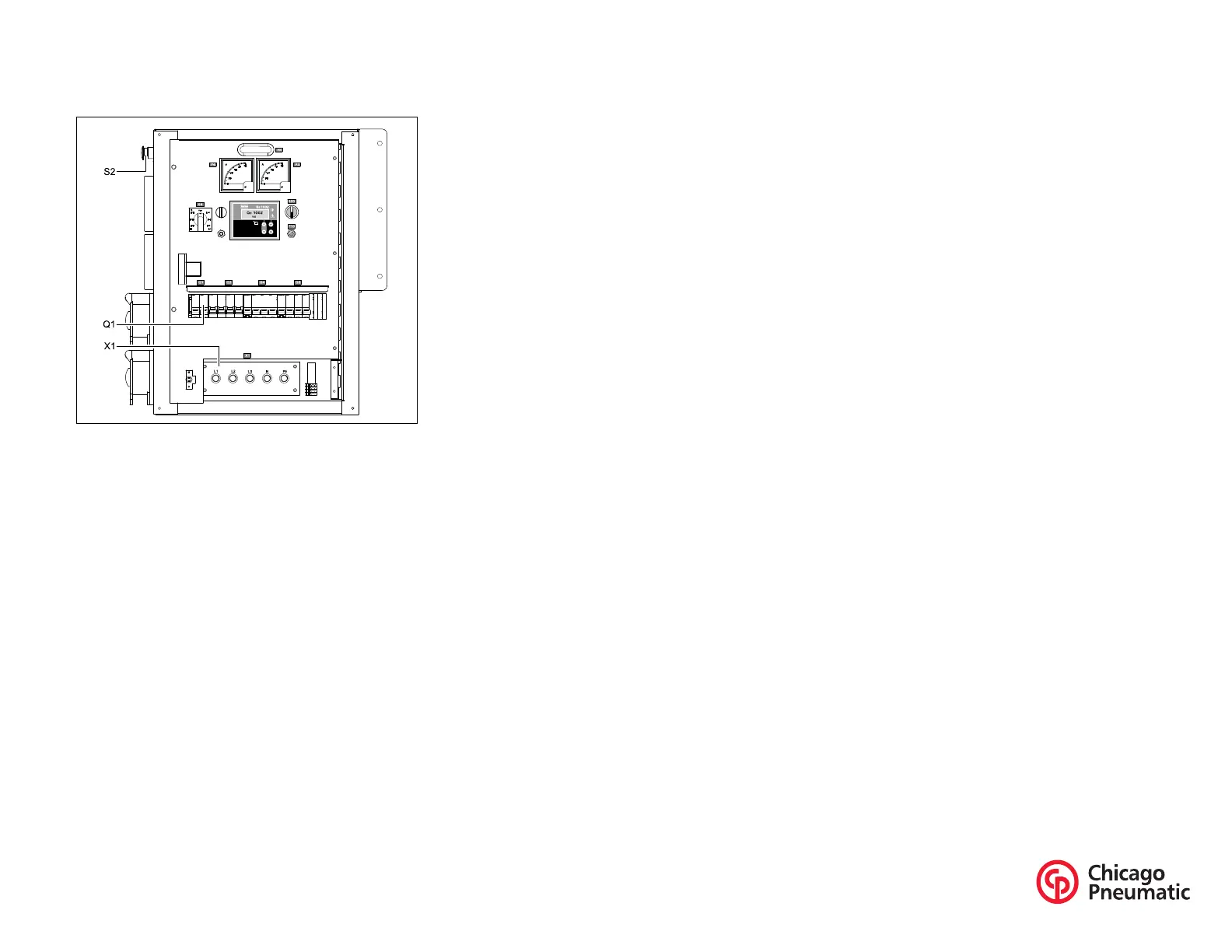

Output terminal board
The output terminal board option is situated below the
control and indicator panel.
S2..... Emergency stop button
Push the button to stop the generator in case of an
emergency. When the button is pressed, it must be
unlocked, by turning it anti-clockwise, before the
generator can be restarted. The emergency stop
button can be secured in the locked position with
the key, to avoid unauthorized use.
Q1, Q2Main circuit breaker
Interrupts the power supply to X1 when a short-
circuit occurs at the load side, or when the earth
leak detector (30 mA) or the overcurrent protection
(CPG 20: 32 A, CPG 25: 32 A) is activated or
when the shunt trip is energized. It must be reset
manually after eliminating the problem.
X1 .... Main power supply (400 V AC)
Terminals L1, L2, L3, N (= neutral) and PE (=
earthing), hidden behind the control panel door and
behind a small transparent door.
Spillage free
A Spillage free skid with forklift slots allows the customer
to transport the generator easily with a forklift.
It avoids accidental spilling of engine fluids.
Electronic speed regulator
The electronic speed regulator makes sure that the output
frequency of the generator is fixed (60 Hz), independent
of the amount of load.
