Instruction manual
1310 3012 13 13

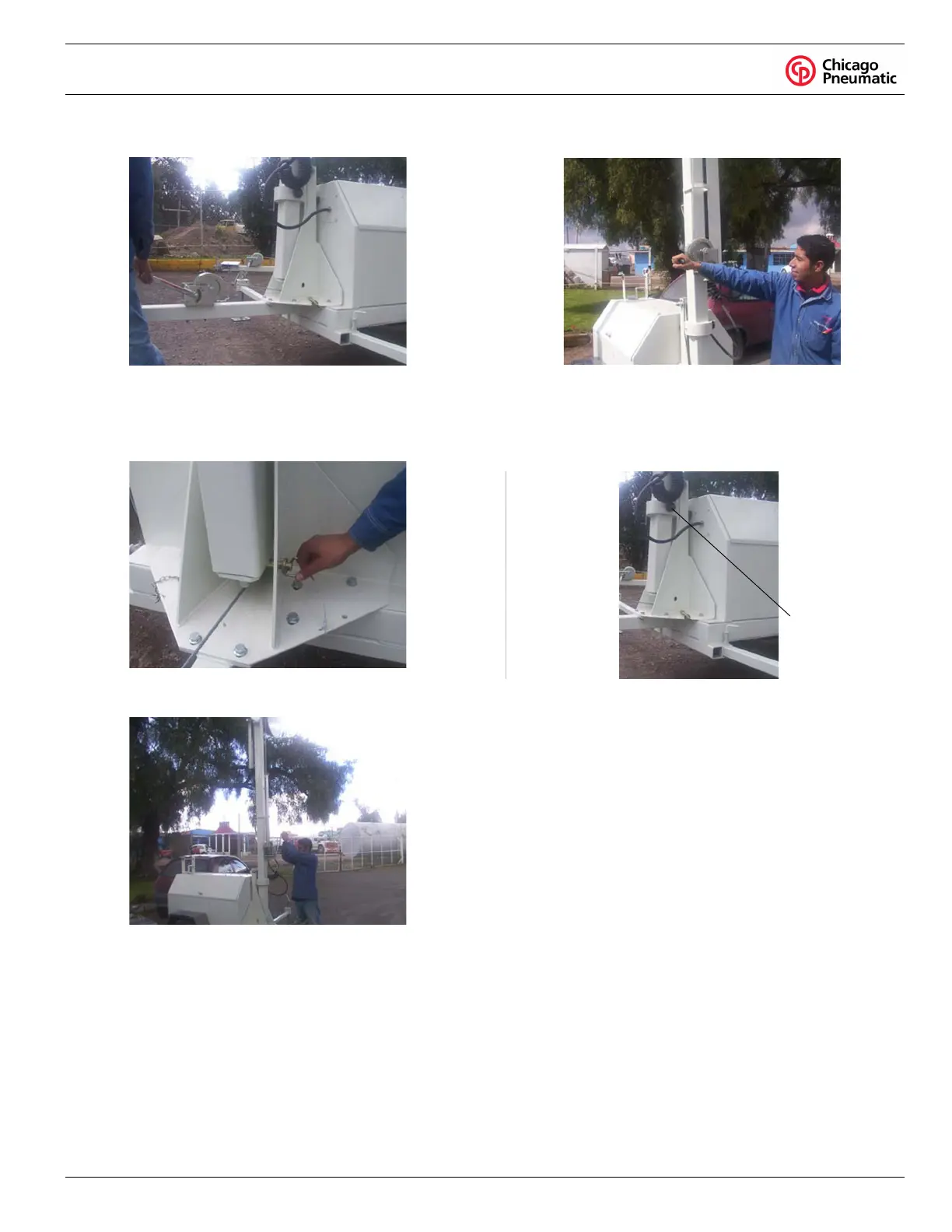

8. Now you are able to unfold the mast.
Unfold the light tower mast by handling the leveler and turning
clock wise until the mast is in vertical position.
Return the vertical safety pin to the safe position.
9. Once the mast has been unfolded and is locked in the vertical
position, you can raise and set the height of lamps using the hand
winch shown below. Clockwise to raise, counter-clockwise to
lower. The winch is self-locking.
10. Rotate the mast as desired. First unlock the mast using the clamp
(1), rotate and then re-lock.
Do NOT rotate the mast more than 160° degrees in either
direction.
1
