CPLT
8 1310 3012 13
1.6.5 Controller
1.7 Cubicle
1.8 Dimensions and weight
Note: Other dimensions shown on drawings, page 6.
1.9 Average lightening versus distance
2 Identifying instruments and controls

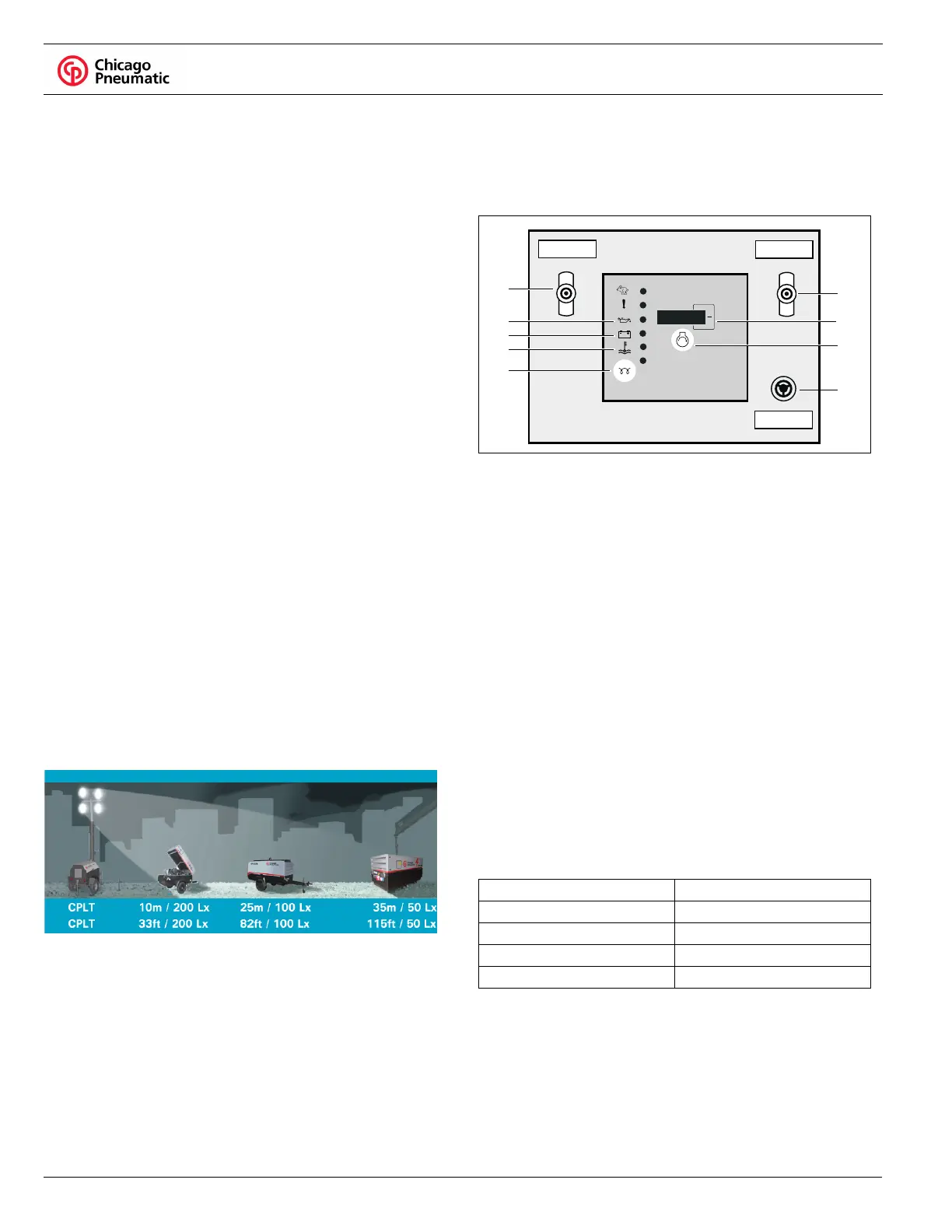

2.1 Operation panel
2.2 Instruments description and function
2.2.1 Engine On/Off switch
Turn ON the system by using the engine On/Off switch (1).
2.2.2 Engine glow plug activation
If the ambient air temperature is below 50ºF (10ºC) the engine glow
plugs (2) should be used. Push and hold the yellow push button
before attempting to START the engine. See table below for hold
times:
Type Enclosed metal control
box
Standard None
Make Deep Sea Electronics
Model DSE701
Protections Each lamp has a 10A
fuse.
12 V supply has a 3 A
fuse.
Visual alarms Low Oil Pressure, High
engine temperature, over
speed
Parameter setting None
Operator interface Ignition On/Off switch,
Lights On/Off switch
Location Inside the canopy
Degree of protection (including canopy) IP55
Maximum length 14.7 ft (4.45 m)
Track width 4.3 ft (1.29 m)
Maximum width (support legs extended) 10 ft (3.04 m)
Maximum height - transport 5.7 ft (1.75 m)
Maximum height - operation 31 ft (9.44 m)
Weight 1370 lbs (621 kg)
1 Engine On/Off switch
2 Glow plug push button and light
3 Engine starter, push button
4 Low oil pressure warning light
5 Low battery warning light
6
Engine high temperature warning light
7 Light On/Off switch
8 Engine hour meter
9 Engine wiring harness fuse
Ambient temperature Hold times
Above 50ºF (10ºC) No need
50º F (10ºC) to 23ºF (-5ºC) Approx. 5 Seconds
Below 23ºF (-5ºC) Approx. 10 Seconds
Limit of continuous use Do NOT exceed 20 Seconds
IGNITION
LIGHTS
F5
1
10
ON
OFF
ON
OFF
1
7
4
5
6
2
8
3
9
