Instruction manual
1310 3012 13 7
1.4 Performance
1.5 Application
1.6 Design data
1.6.1 Alternator
1.6.2 Engine
1.6.3 Lamps
1.6.4 Undercarriage
Rated active power - 4ph 4.4 kW (5.9 hp)
Rated lamps power - 4 lamps 4.0 kW (5.36 hp)
Unloaded voltage at rated speed 550 V
Loaded voltage at rated speed 250 V
Lighting source 404, 000 lumen
Maximum sound power level 93.5 dBA
Maximum sound pressure level at 10 m / 33 ft 65.5 dBA
Fuel capacity 30 Us gal (114 liter)
Fuel autonomy (run time) 85+ hours
Mode of operation Lighting only
Site Land use
Operation Single
Start-up an control mode Manual
Mobility acc. ISO 8528-1:1993 Mobile / E
Mast operation Manual
Number of supports 4
Maximum wind speed in operation 65 mile/h (105 km/h)
Mast rotation 360º
Lamps adjustment 2 degrees of freedom
(horizontal / vertical
rotation)
Type Permanent magnet
brushless
Standard N/A
Make LE
Model G24N1-001
Rated output, class H temp. rise (ISO8528-3) 105 kVA

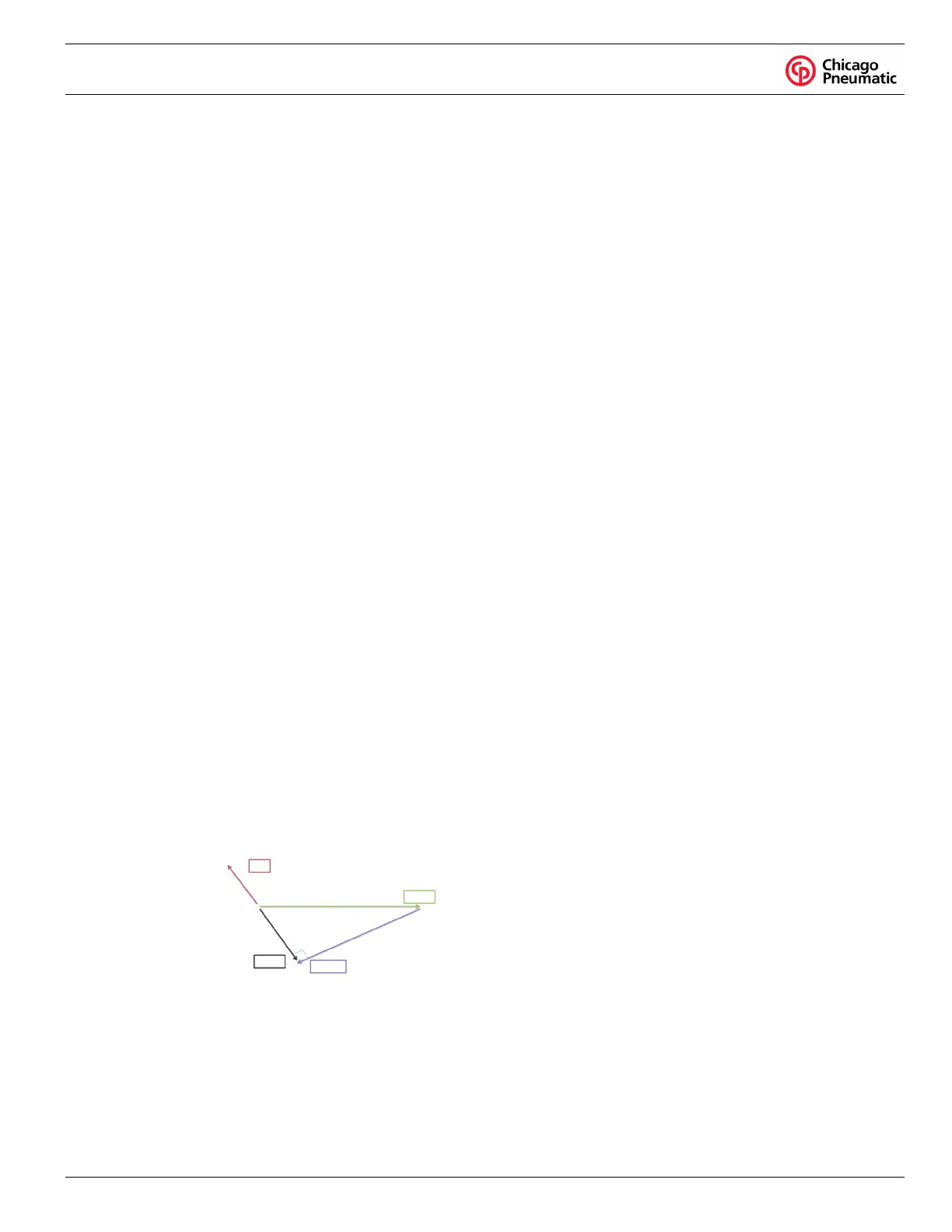

Electric characteristic E/I diagram at rated speed
At least contain
following points
– Open voltage
– normal operation
point (voltage and
current)
– Short circuit current
Degree of protection IP54
Insulation class Class H
Number of phases 4
Number of wires 8
Efficiency at full load 89 %
• At operating tempetature
• Internal resistance ignored
I=4
E=480
IX=410
V=250
Type 2 Cylinder, 4-Cycle,
Liquid Cooled Diesel
engine
Standard EPA Tier 4
EU stage III A
Make Yanmar
Model 2TNV70
Rated net output at 2500 rpm 6.7 kW (8.98 hp)
Coolant PARCOOL
Number of cylinders 2
Speed control Mechanical
DC electric system 12 V
Emission compliant EPA Tier 4
Type Metal Halide 1000/U/4K
Standard N/A
Make N/A
Model - bulb MH1000/BT37/U/4K
Rated power 1000 W per lamp
Lighting capacity (lumen) 101,000 lumen per bulb
Color Temp 4200 K
Rated voltage 250 V
Ignition / peak voltage 550 V
Type Welded frame with leaf
springs attached with U-
bolts
Standard N/A
Make Steel
Model CPLT
Maximum speed 50 mile/h (80 km/h)
Tires 5.30" x 12" 6 poly tire
Road signalization Front and rear side lights
Braking signalisation 2 rear tail lights
Towing bar Hitch-ball trailer coupler
2"
Towing eye N/A
