SETTING THE GUN POLARITY FOR WIRE TYPE
Set for Electrode Negative (DCEN) for 1. gasless ux core wire. Negative electrode
(E to C), positive ground (D to A). SHOWN IN FIGURE H, INITIAL SETUP.
Set for Electrode Positive (DCEP) for 2. gas welding with solid-core wire. Positive
electrode (E to A), negative ground (D to C).
Connections the opposite of Figure H.
When connecting to the weld output terminals, do not 3.
place anything between the welding Cable Terminals
(A and C) and their copper connections.
Always read and follow wire manufacturer’s 4.
recommended polarity.
KEY:5.
Positive (+) Output TerminalA.
Polarity Changeover LabelB.
Negative (–) Output TerminalC.
Ground CableD.
Electrode CableE.

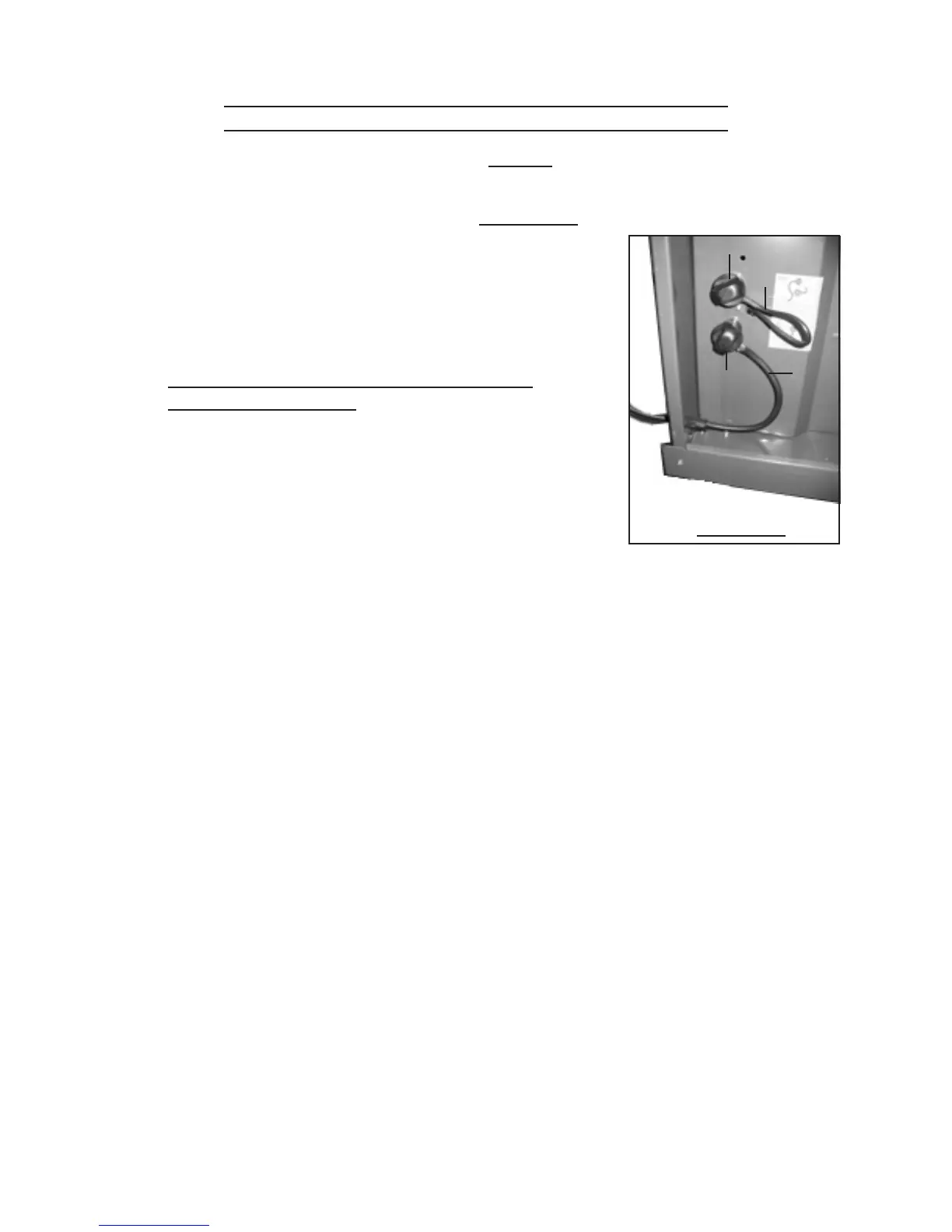

FIGURE H
A
B
C
D
E
