(1) Single Phase 230V(NVF5-0.4/TD2~2.2/TD2 (2) Three Phase380V(NVF5-0.4/TS4-B~
and NVF5-0.4/TD2-B~2.2/TD2-B) 7.5/TS4-B)
NVF5-0.4/TD2~2.2/TD2 and NVF5-0.4/TS4-B~7.5/TS4-B
NVF5-0.4/TD2-B~2.2/TD2-B Power Terminal Power Terminal
Figure 3-1 Figure 3-2
The three-phase AC input terminals ,connecting
with the power grid
The Single-Phase AC input terminals ,connecting
with the power grid
The three-phase AC output terminals ,connecting
with the AC motor
Grounding terminals,ensure reliable grounding
Single phase type DC+ and DC-
Outer Brake Resistor
Terminals
Three phase type brake resistor terminals
Single phase type brake resistor terminals

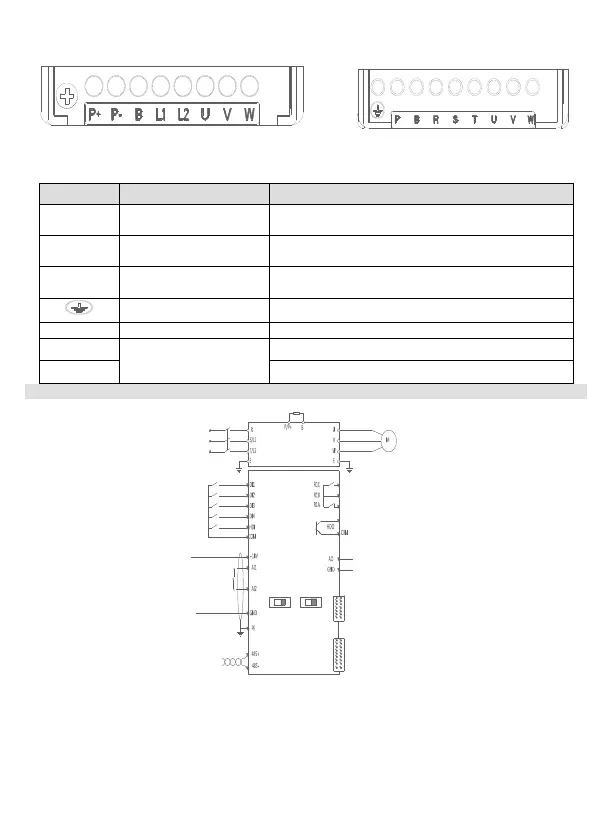

3.2 Power terminal and I/O terminal block diagram
V:(-10~10)V
I:(0~20)mA or (4~20)mA
RS485 communication
Three-phase input power
Brake resistor
Main circuit terminal
Control circuit terminal
QF
Power grounding
Motor grounding
A11
V1I1
2 x Analog input
Analog input power supply
Analog input common
230V 50/60Hz
AO
Programmable
Multifunction
AOVAOI
380V~440V 50/60Hz
Single-phase input poweer
V:(0~10)V
I:(0~20)mA or (4~20)mA
Analog output
Output
J2、J3 Multifunction extension card interface
J2 Multifunction interface
J3 Multifunction interface
Programmable relay outputs
Programmable open collector
Input
high-speed output
Figure 3-3
AO Dip Switch:Left,( 0~20)mA or (4~20)mA Analog Current Ouput;Right,( 0~10)
V Analog Voltage Output.
AI1 Dip Swith:Left,( 0~20)mA or (4~20)mA Analog Current input;Right,( 0~10)VAnalog
Voltage input.
AI2:Current Output need to be customized.
