Chord Electronics
Mojo 2 | User manual
7

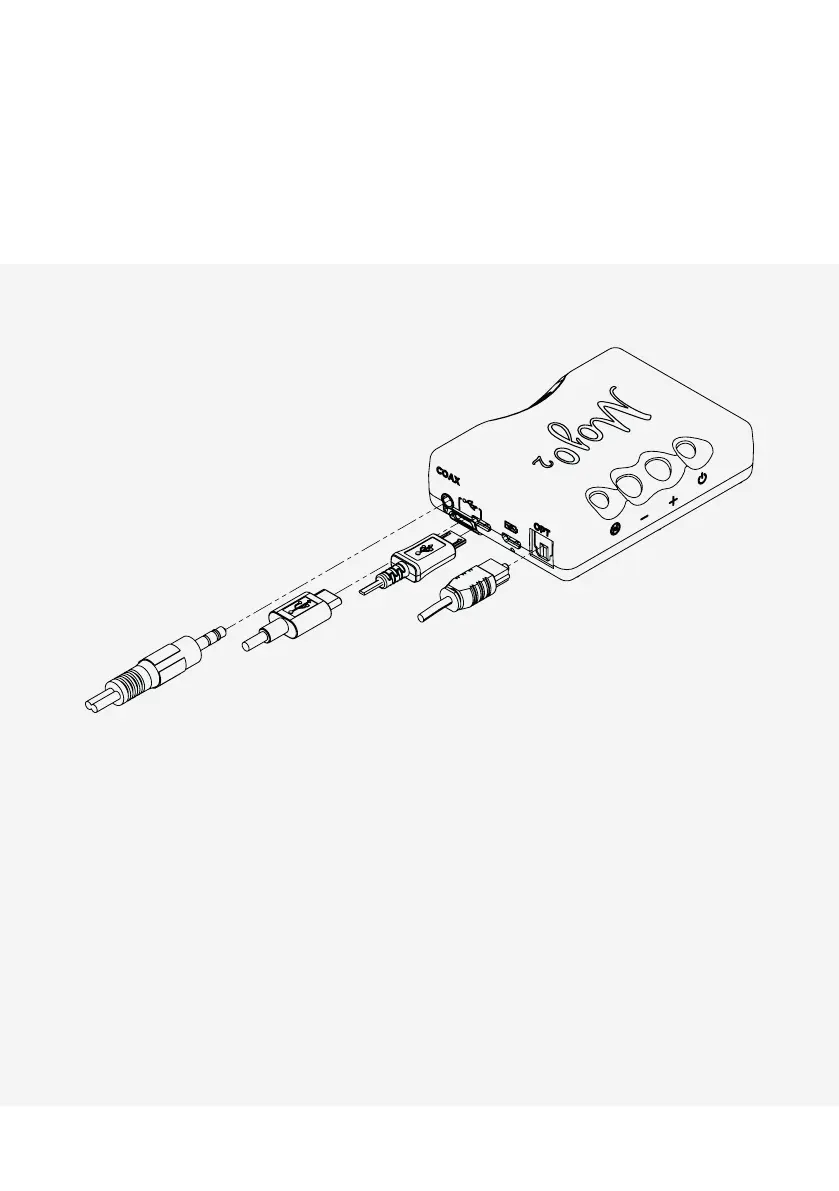

6.4 Connectivity: inputs
Connect compatible digital devices, including laptops, smartphones, tablets and more to Mojo 2’s
corresponding digital inputs. These include: 3.5 mm coaxial (single coax: tip: signal, sleeve: ground. Dual data
coax [for use with Hugo M-Scaler]: tip: signal 1, ring: signal 2 sleeve: ground, USB-C, Micro-USB and optical
inputs. If all four inputs are connected simultaneously, Mojo 2 will auto-select the correct input when music is
played to the device. Mojo 2 will prioritise specific inputs if all four are connected simultaneously. USB has
priority followed by coaxial and then optical. It is only possible to connect one USB at a time (Micro-USB takes
priority over USB-C).
