CC2 Electric Barbecue Cooktop (Part numbers 1005 and 1006)
14 | Installation
NOTE: For installing the cooktop into a pre-fabricated Christie barbecue cabinet, please
refer to instructions for installing a CC2 cooktop on page 15.
FIG. 5

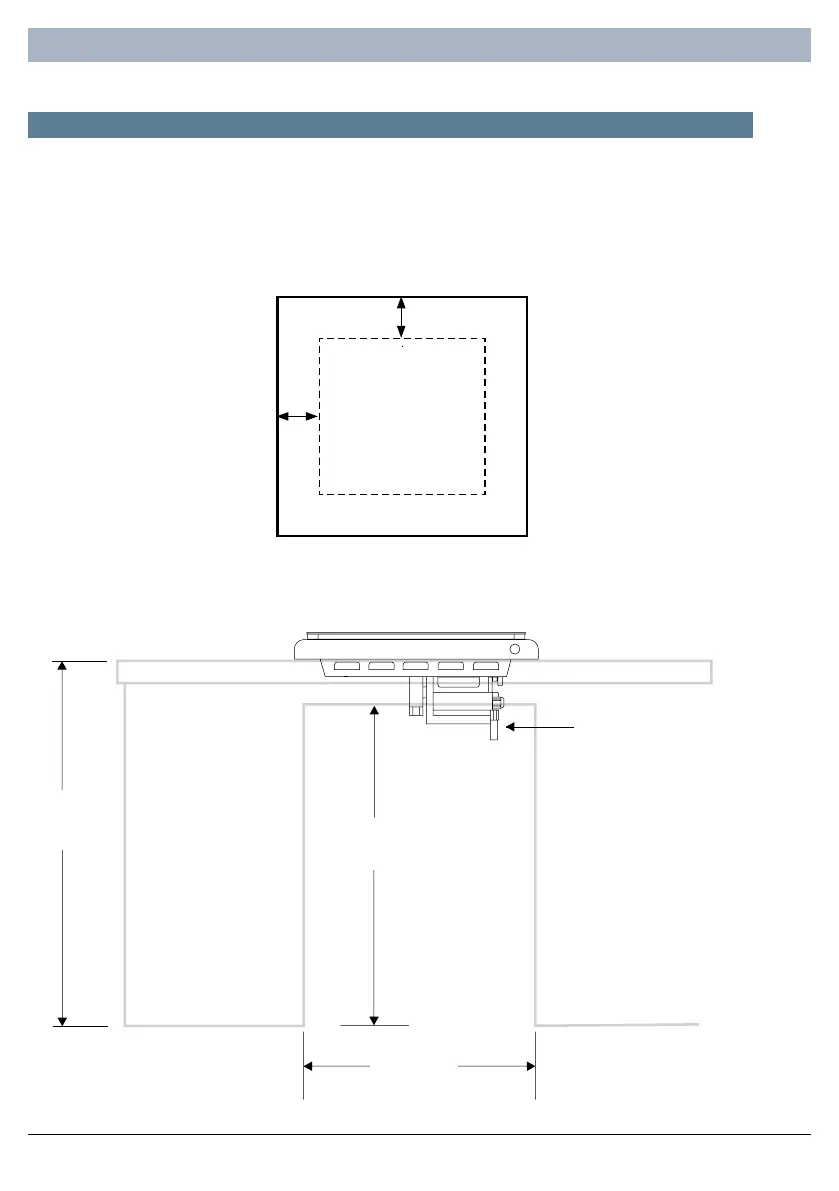

2.1 Design guidelines for installing a CC2 cooktop
Both CC2 electric
and CC2 gas cooktops
extend 160 mm downwards
Minimum clearance
above hotplate: 1200 mm
850 mm high
access opening
600 mm wide
access opening
Minimum
900 mm bench
height
FIG. 4
Allow at least 130 mm of clear bench around cut-out on all sides
495 mm x 495 mm
cut-out
130 mm
130 mm
