Christie CC2 - Product Diagram

CC2 Electric Barbecue Cooktop (Part numbers 1005 and 1006)
4
FIG 1

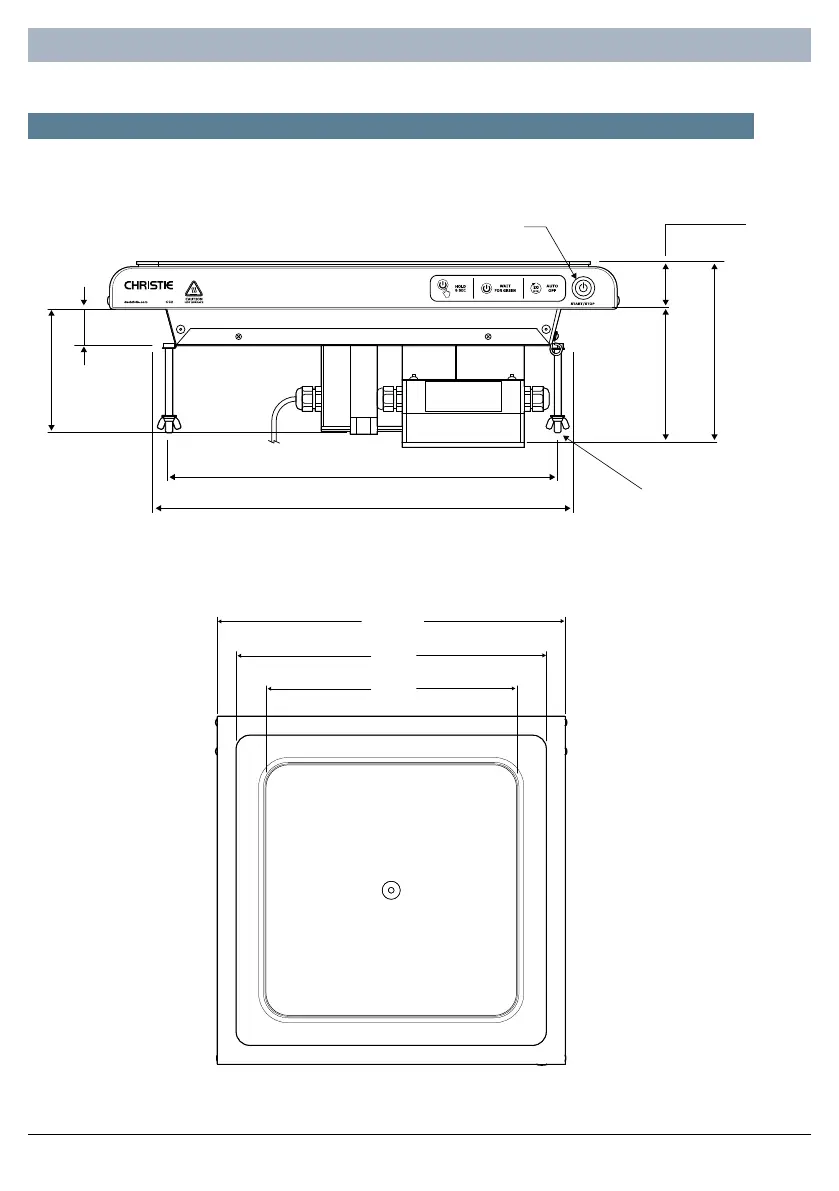

1.1 Product diagram
| General information
148 mm
to fat drain tube
Front view
M8 x 100 mm long mount bolts
2 places
160 mm projection
below benchtop
216 mm
56 mm projection
above benchtop
Start/Stop button
with LED indicator
490 mm minimum benchtop cutout width
459 mm bolt hold down point centres
47 mm
Top view
435 mm
cooking area
536 mm
600 mm
FIG 2
Please note
this cooktop is square
