3. Remove the tail lamp housing bolts.
4. Pull the tail lamp housing directly rearward to dislodge
the two out bored ball studs from the socket fasteners.
NOTE: It may be necessary to use significant force to
remove the two out bored ball studs from the socket
fasteners to remove the tail lamp housing.
5. Rotate the stop/rear turn signal lamp socket 1/4 turn
counterclockwise and remove it from the tail lamp
housing.
6. Remove the bulb from the socket and install the replace-
ment bulb.
7. Install the bulb socket into the tail lamp housing and
rotate the bulb socket ¼ turn clockwise to lock it in
place.
8. Install the tail lamp housing.
9. Install the tail lamp housing beauty cover.
License Plate Lamp
1. Remove the screw of the license plate lamp assembly
and pull down on the license plate lamp assembly to
remove.
2. Remove the bulb from the socket and install the replace-
ment bulb.
3. Install the license plate lamp assembly.

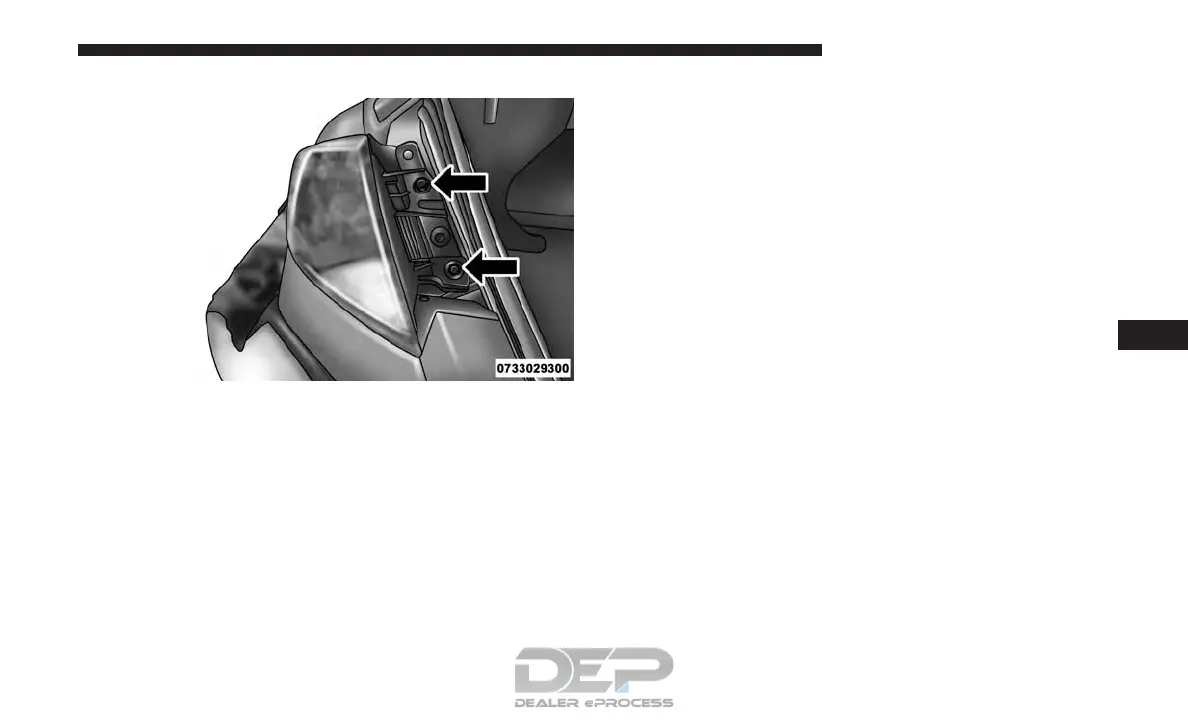

Tail Lamp Bolts
7
MAINTAINING YOUR VEHICLE 519
