9.0 CONNECTOR PINOUTS

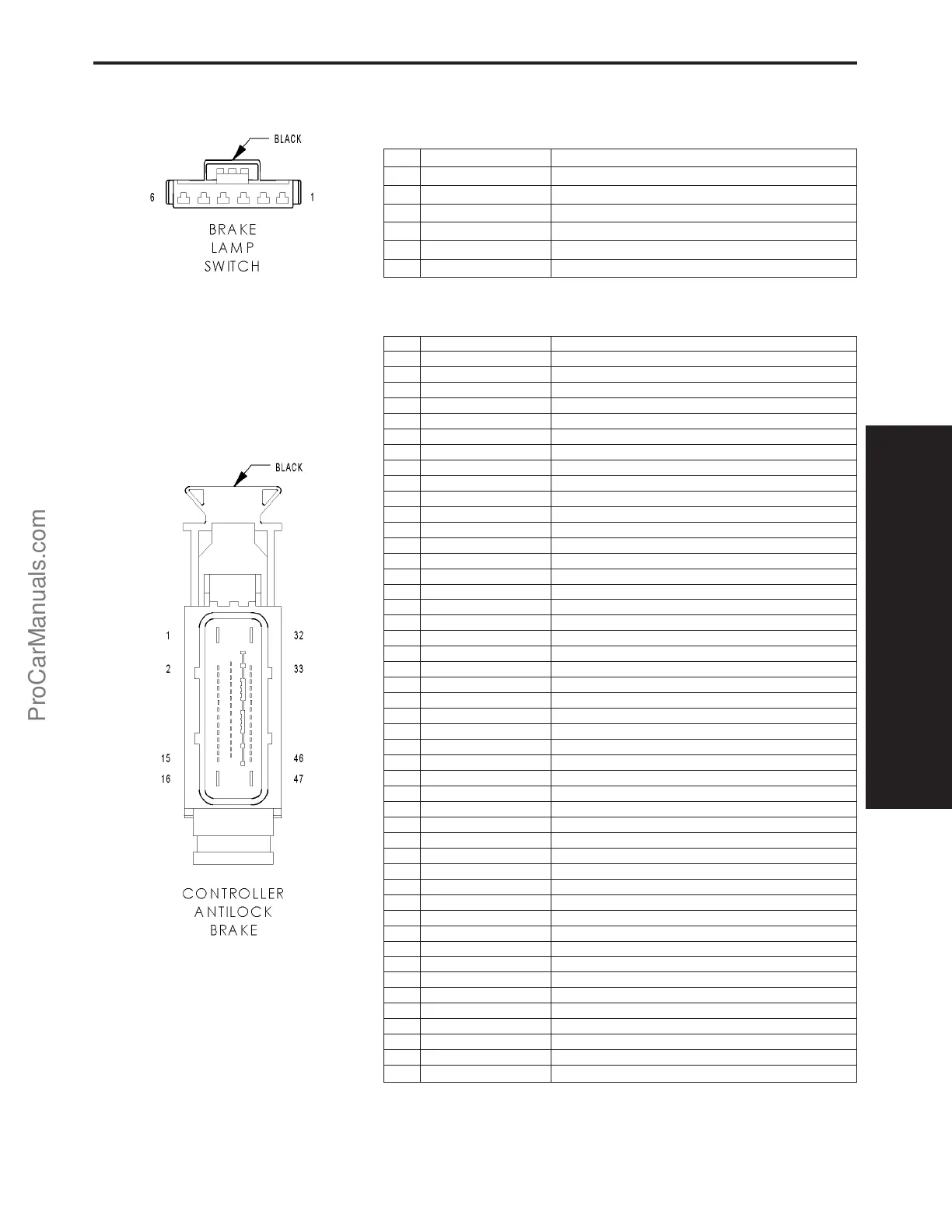

BRAKE LAMP SWITCH - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
2 A108 18LG/RD FUSED B(+)
3 V30 20VT/WT SPEED CONTROL BRAKE SWITCH OUTPUT
4 V32 20VT/YL S/C SUPPLY
5 Z429 20BK/OR GROUND
6 B29 20DG/WT BRAKE SWITCH SIGNAL
CONTROLLER ANTILOCK BRAKE - BLACK 47 WAY
CAV CIRCUIT FUNCTION
1 A107 12TN/RD FUSED B(+)
2 D24 20WT/YL FLASH ABS
3- -
4 F500 18DG/PK FUSED RUN RELAY OUTPUT
5- -
6- -
7- -
8- -
9- -
10 - -
11 - -
12 D25 20WT/VT PCI BUS
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 - -
32 A111 12DG/RD FUSED B(+)
33 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
34 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
35 - -
36 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
37 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
38 - -
39 - -
40 - -
41 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
42 B1 18DG/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
43 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
44 - -
45 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
46 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
47 Z107 12BK/LB GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
49
CONNECTOR PINOUTS
