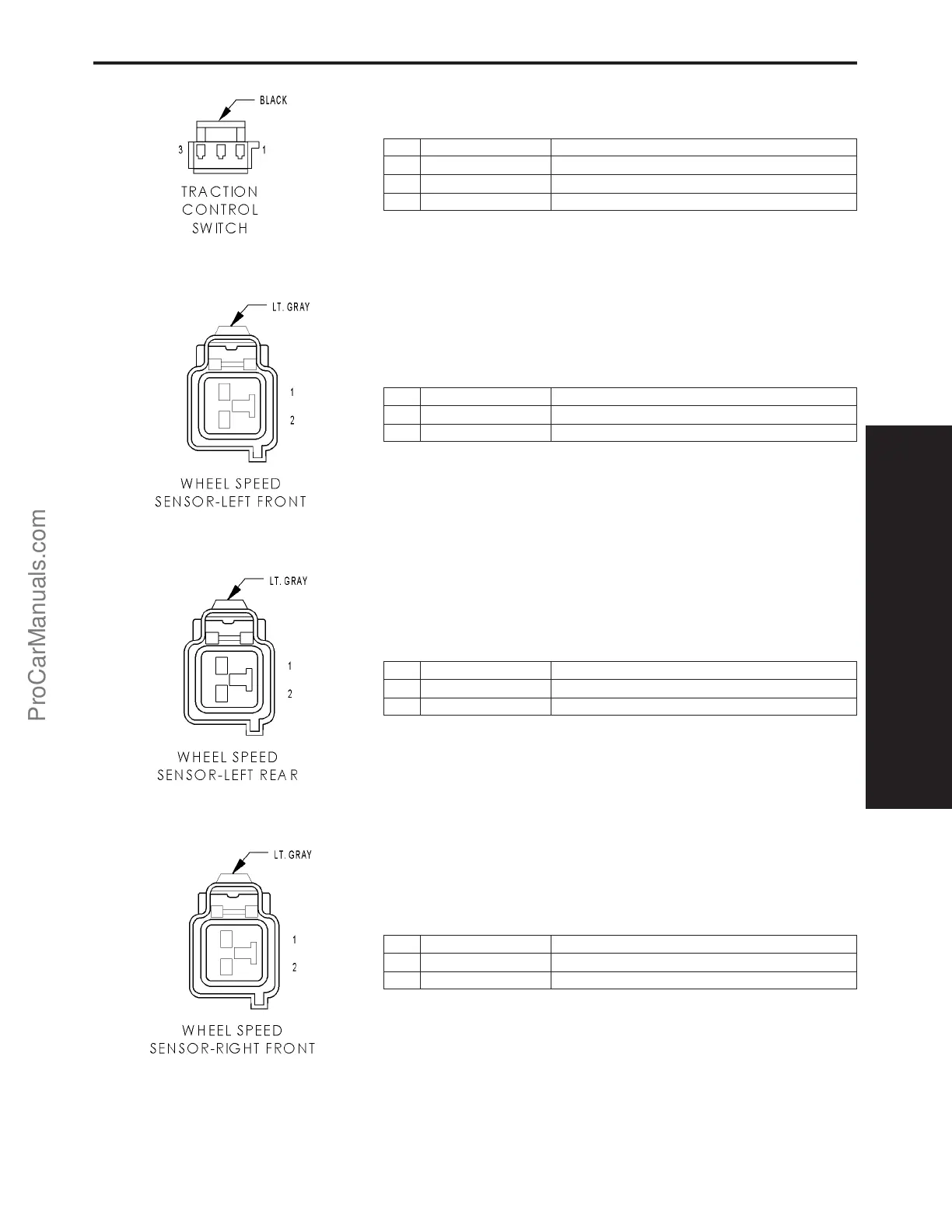

Chrysler Pacifica 2004 - Traction Control Switch - Black 3 Way; Wheel Speed Sensor-Left Front - Lt. Gray 2 Way; Wheel Speed Sensor-Left Rear - Lt. Gray 2 Way; Wheel Speed Sensor-Right Front - Lt. Gray 2 Way

TRACTION CONTROL SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z427 20BK/WT GROUND
2 E12 18OR/GY PANEL LAMPS DRIVER
3 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
WHEEL SPEED SENSOR-LEFT FRONT - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
WHEEL SPEED SENSOR-LEFT REAR - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
WHEEL SPEED SENSOR-RIGHT FRONT - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
