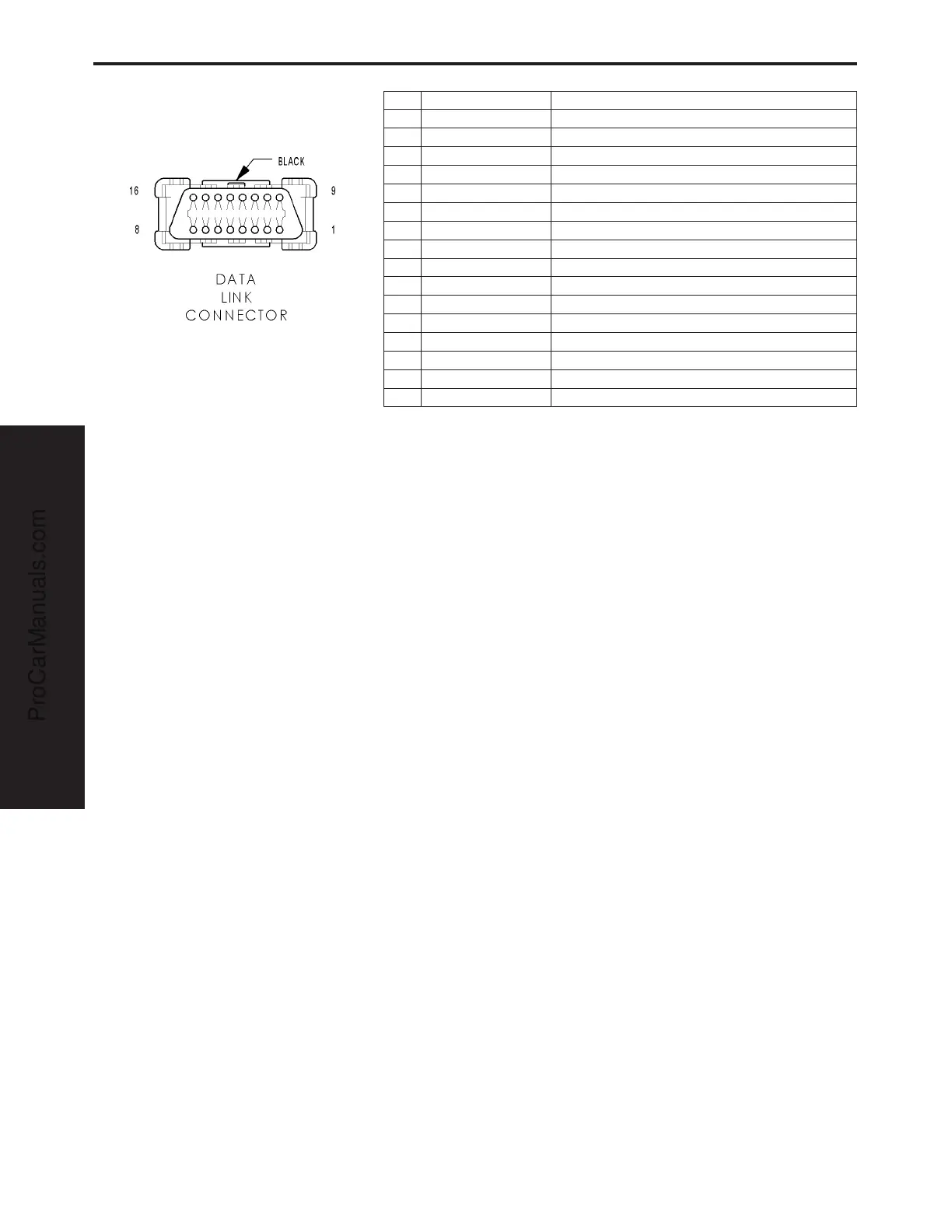

Chrysler Pacifica 2004 - Data Link Connector - Black 16 Way

DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT GROUND
6- -
7 D21 20WT/GY SCI TRANSMIT (PCM)
8- -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 D24 20WT/YL FLASH ABS
11 - -
12 D20 20WT/LG SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20BR/WT SCI TRANSMIT (TCM)
16 A105 20DB/RD FUSED B(+)
