Installation

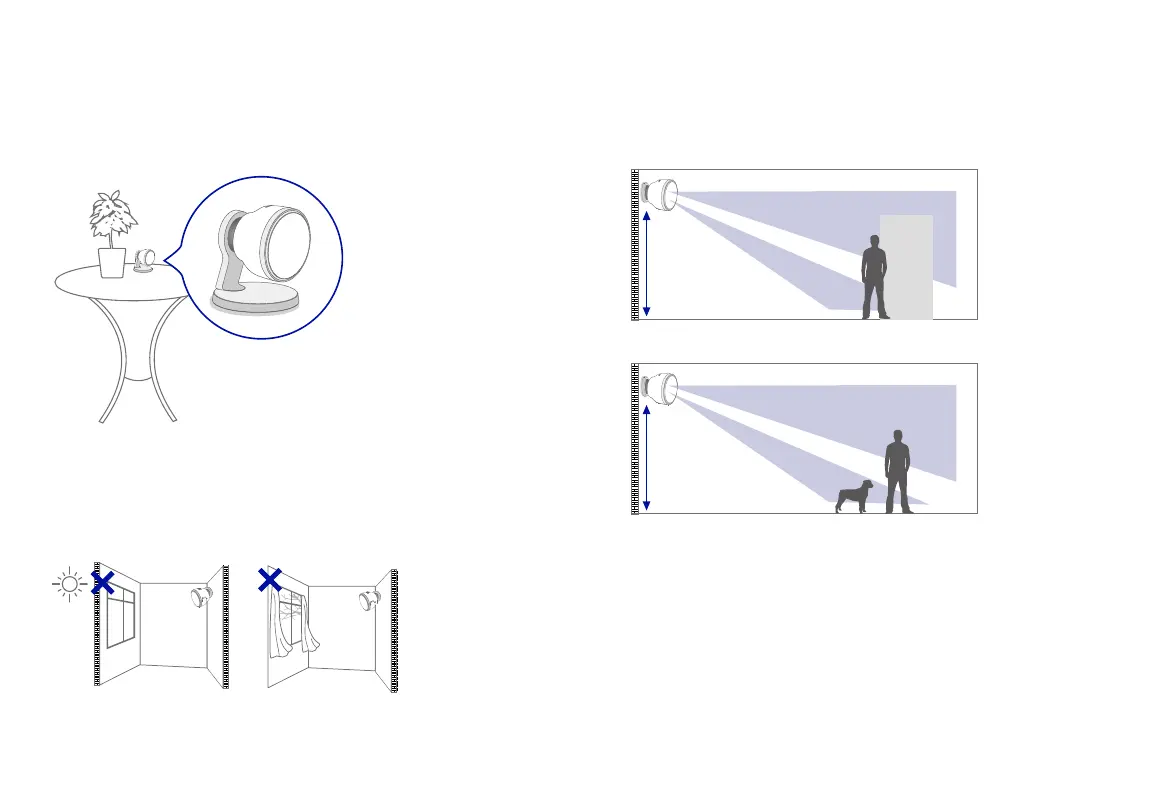

There are two ways to install the sensor: mount it on the wall or place it on desktop.
On Desktop
Put the sensor on a at surface with the provided desktop bracket.
Magnet base
Charging port
Light
Loudspeaker
Wall Mount
To get optimal detection coverage, check the following factors before mounting:
• Determine the area of detection and ensure there is no obstructed eld of view.
• Determine the height and adjust angle.
• Avoid direct sources of heat or sunshine, swinging objects like curtains.
Pet-Immune Function
The motion sensor should be mounted 2-2.2m above the oor and adjust the detecting
angle according to your need. When the sensor is installed parallel to the wall, pet under
25kg will not trigger alarm.
Note: when the sensor is put on desktop. The pet-immune function could not work as it
intends.
2-2.2m
2-2.2m
Sensitivity
The sensitivity can be adjusted on the app. The default setting is medium sensitivity.
