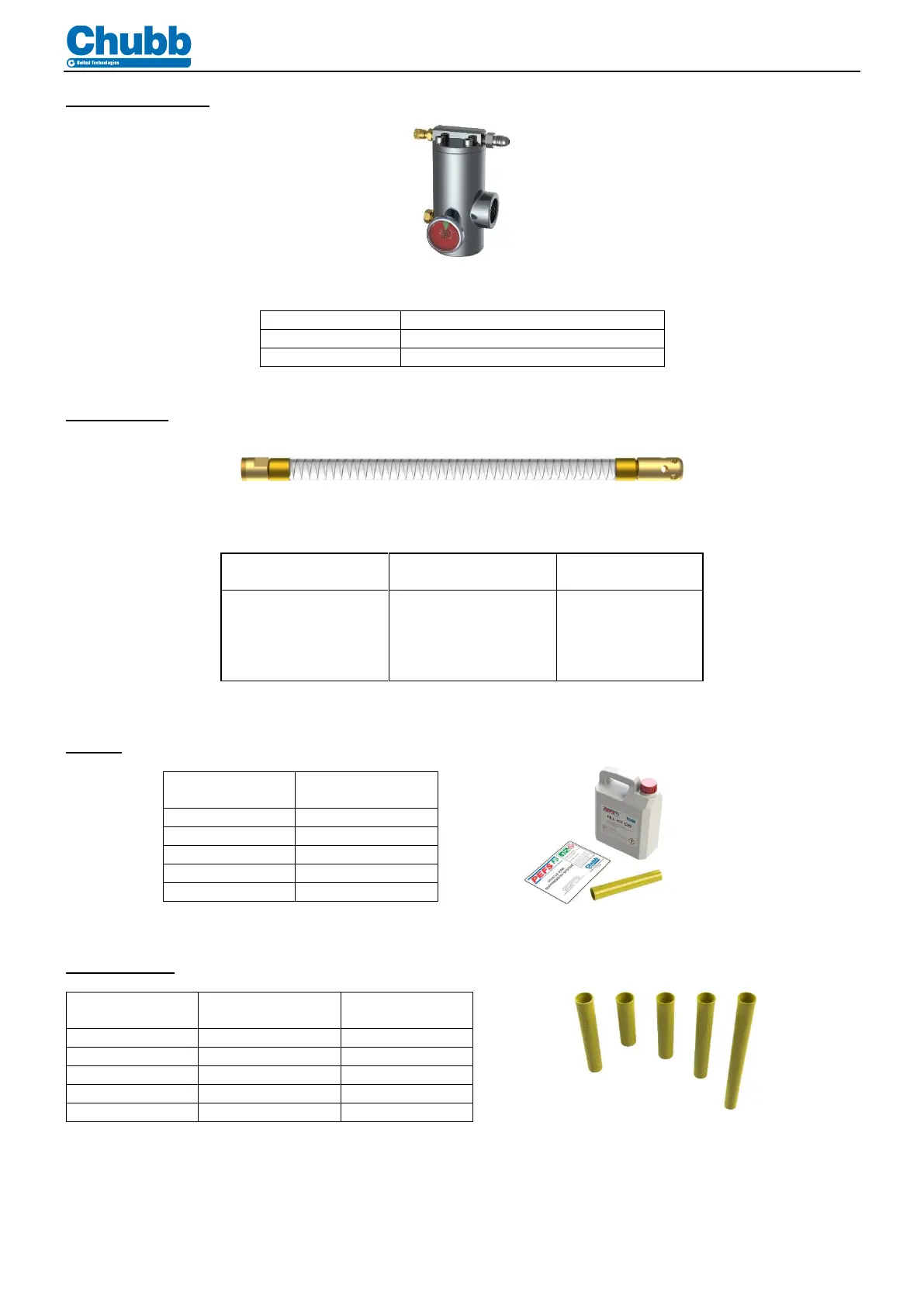

LOP Cylinder Valve
Figure 7
–
LOP Valve
Assembly
Part Number
Description
26023
PEFS F3 LOP Va
lve Assem
bly
28037
PEFS F3 LOP Va
lve Service Kit
Table 8
–
Valve
Assembly
Siphon Tubes
Figure 8
–
Sipho
n tube
Cylinder
Size
Siphon Tu
be
Part Number
Syphon Tube
Length (±2mm)
C23
109298
719
C30
110281
485
C45
110282
546
C65
110283
745
C106
112040
1156
Table 9
–
Siphon t
ube details
Fill Kits
Cylinder
Size
Fill Kit
Part Number
C23
51010
C30
51011
C45
51012
C65
51013
C106
51014
Table
10
–
Fill Kits
Over-fill Tubes
Cylinder
Size
Part Number
Length (mm)
C23
36205
202
C30
36206
118
C45
36207
158
C65
36208
223
C106
36209
345
Table
11
–
Over-
fill tube details
27
29
Table of Contents
Pre-Face
2
Document History
2
Table of Contents
3
Contents
3
About this Manual
5
Warranty
5
Consumer Guarantees
5
Intended Use
6
Introduction
7
Maintenance
8
General
8
Precautions
8
Pre-Maintenance Review (Design Survey)
8
Water Quality
8
System Defects
9
Service Records
9
Recommended Tool List
10
Service Schedule
11
Daily Routine Service Schedule
11
Six-Monthly and Yearly Routine Service Schedule
11
Six Monthly Service Instructions
14
System Pressure Check (Item 1)
14
System Control and Indicating Equipment [Where Fitted] (Item 2)
14
Distribution System (Item 3)
14
Actuation System (Item 4)
14
Manual Actuators (Item 5)
15
Detection System (Item 6)
16
Storage Containers (Item 7)
16
System Labels (Item 8)
16
After Maintenance Activities
16
Yearly Service Instructions
17
Discharge Test [Optional] (Item 9)
17
Storage Containers (Item 10)
17
Cylinder Valve - Service (Item 11)
18
Cylinder Refilling (Item 12)
19
Distribution System - Clear Passage Test (Item 13)
21
Manual Actuators - Service (Item 14)
22
Detection System - Pneumatic (Item 15)
23
Actuation System - Pneumatic (Item 16)
23
Actuation System - Electrical [Where Fitted] (Item 17)
23
Detection System - Electrical [Where Fitted] (Item 18)
24
System Interface and Shutdown [Where Fitted] (Item 19)
24
System Pressurising
24
After Maintenance Activities
25
Maintenance Report
26
Spare Parts
27
Cylinder Assemblies & Brackets
27
Cylinders Assembles
27
Cylinder Assembly Details
27
LOP Cylinder Valve
28
Siphon Tubes
28
Fill Kits
28
Over-Fill Tubes
28
Cylinder Brackets
29
Discharge Components
30
Stainless Steel Tube
30
Discharge Hose
30
Nozzles
30
Nozzle Kits
31
Discharge Hose and Tube Fittings
32
Actuation Components
35
Loss of Pressure Detection Tubing
35
Electric Solenoid Valve Assembly
35
Actuation System Fittings
36
Monitoring Components
37
Pressure Switches
37
Identification & Instruction Labels
38
Appendix
39
SDS - Chubb PEFS F3 Foam Concentrate
39
AS2337 Cylinder Visual Inspection Damage Limits
46
