CIGWELD 450i - 7.01 Volt;Amp Curves

TRANSMIG 350i, 450i,550i
Manual 0-5205 7-1 VOLT/AMP CURVES
SECTION 7:
VOLT/AMPERE CURVES

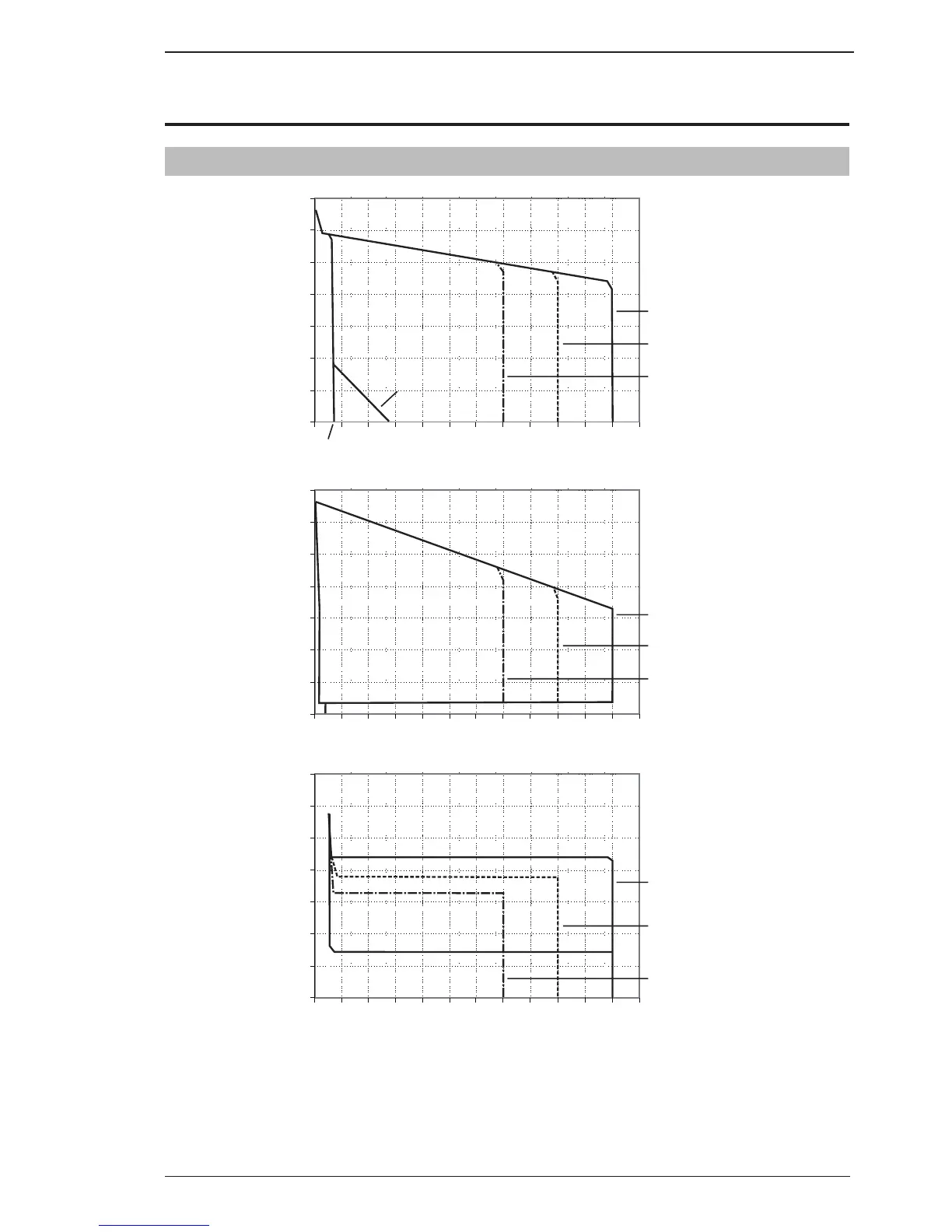

7.01 Volt/Amp Curves
0
10
20
30
40
50
60
70
Welding Current (amps)
100 200 300 400
MMAW (Stick)
500 600
Output Voltage
MIN MAX
MAX ARC FORCE
MIN ARC
FORCE
0
10
20
30
40
50
60
70
Welding Current (amps)
100 200 300 400
GTAW (Lift Tig)
500 600
Output Voltage
MIN
MAX
0
10
20
30
40
50
60
70
Welding Current (amps)
100 200 300 400
GMAW (Mig)
500 600
Output Voltage
MIN
MAX
TRANSMIG 550i
TRANSMIG 450i
TRANSMIG 350i
TRANSMIG 550i
TRANSMIG 450i
TRANSMIG 350i
TRANSMIG 550i
TRANSMIG 450i
TRANSMIG 350i
A-10644
Table 7-1 Volt/Amp Curves
