Cimon Xpanel 4 - Page 10

- 10 -

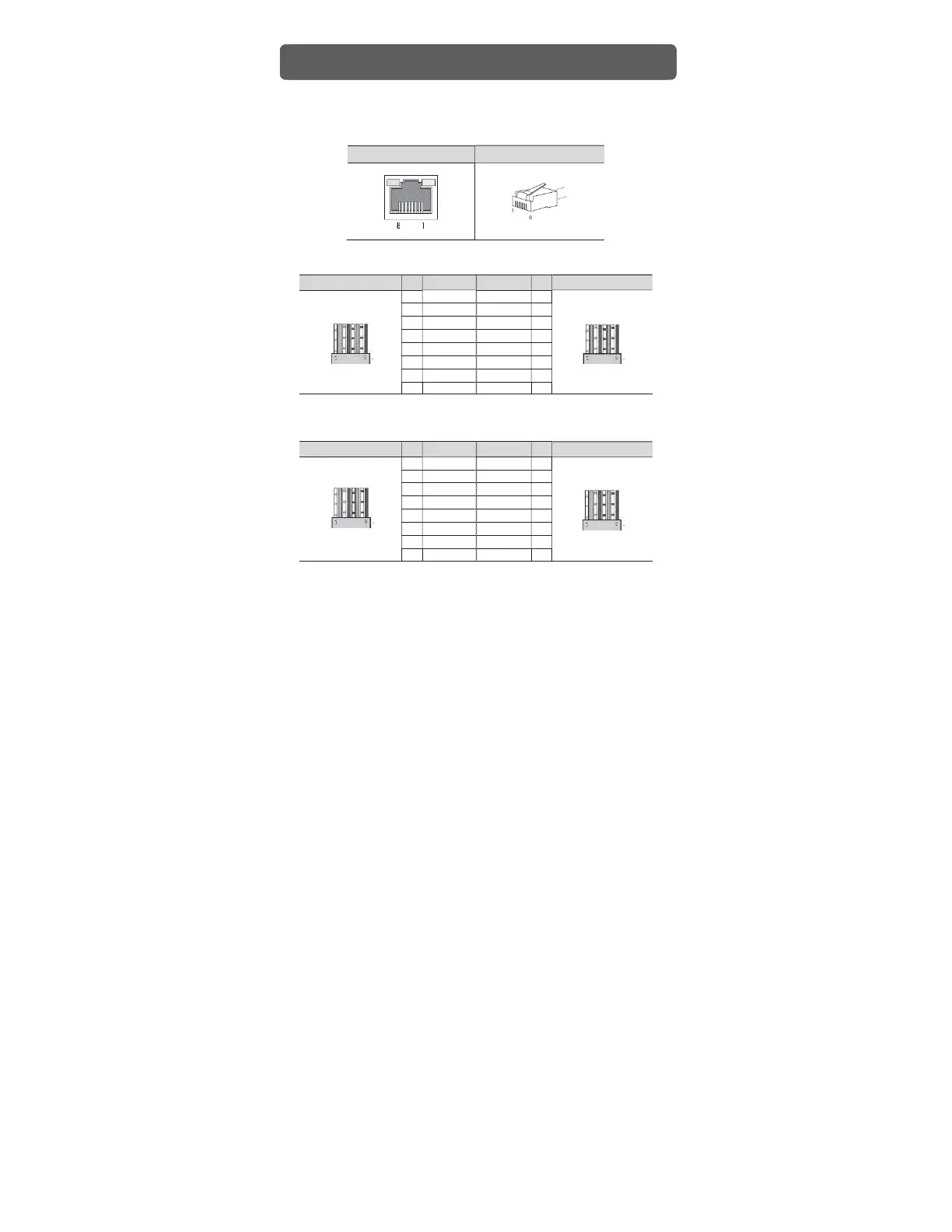

2) Ethernet
This interface complies with the IEEE802.3 for Ethernet (10BaseT/100BaseTX)
RJ45 Connector RJ45 Jack
Direct Cable: Host ↔ HUB
Cable No Color Color No Cable
1 Orange/W Orange/W 1
2
Orange
Orange 2
3
Green/W
Green/W 3
4
Blue Blue
4
5
Blue/W
Blue/W 5
6
Green Green
6
7
Brown/W
Brown/W 7
8
Brown Brown
8
Crossover Cable: Host ↔ Host
Cable No Color Color No Cable
1 Orange/W Green/W 1
2
Orange Green
2
3
Green/W
Orange/W 3
4
Blue Blue
4
5
Blue/W
Blue/W 5
6
Green
Orange 6
7
Brown/W
Brown/W 7
8
Brown Brown
8
• Create a Panel Cut and insert the Xpanel into the panel from front.
INSTALLATION
Interfaces
