FINAL INSTALLATION
When the toilet is tested, mount panels and close covers. Mount control panel if not mounted earlier.
Adjust docking frame for clearance around outer shell. Operate shell elevator to observe no contact
during operation. The manufacturer reserves the right to modify the installation manual without fur-
ther notice.
TECHNICAL SPECIFICATIONS
DIMENSIONS OF THE TOILET
Width:
410 mm
Depth toilet:
490 mm + 100 mm Build-in module
Height:
547 mm
Seating height:
490 mm
Max. depth operating shell elevator:
613 mm + 100 mm Build-in Module
Max. height operating shell elevator:
845 mm
TECHNICAL SPECIFICATIONS, ELECTRIC
Supply voltage:
11-14.5 VDC
Red cable:
positive
Supply fuse:
10A
Max power consumption:
4 A
Continuous withdrawal during incineration:
1.3A
Dimensional supply under 10m:
1.5 mm²
Dimensional supply 10 - 17m:
2.5 mm²
TECHNICAL SPECIFICATIONS:
Inner diameter exhaust hose:
60 mm
Insulation thickness:
30 mm, approx. 120mm diameter
Max temperature exhaust gases:
118 ° C
Max temperature insulation exterior:
55 ° C
Hole saw diameter for Roof feed-through ange:
83 mm
Maximum length of exhaust hose:
250 cm
Max temperature Build-in module:
74 °C at 45 °C inlet temperatur
e
TECHNICAL SPECIFICATIONS, GAS SUPPLY:
Gas supply:
ø8mm compression coupling
Gas supply connector material:
Brass
Gas type:
Propane or LPG
Gas pressure:
30mBar
TECHNICAL SPECIFICATIONS, AIR INLET:
Diameter inlet air hose:
75 mm
Maximum length inlet air hose:
120 cm
Minimum air grating size:
50cm² light opening
Air consumption during incineration:
52 m
3
/h

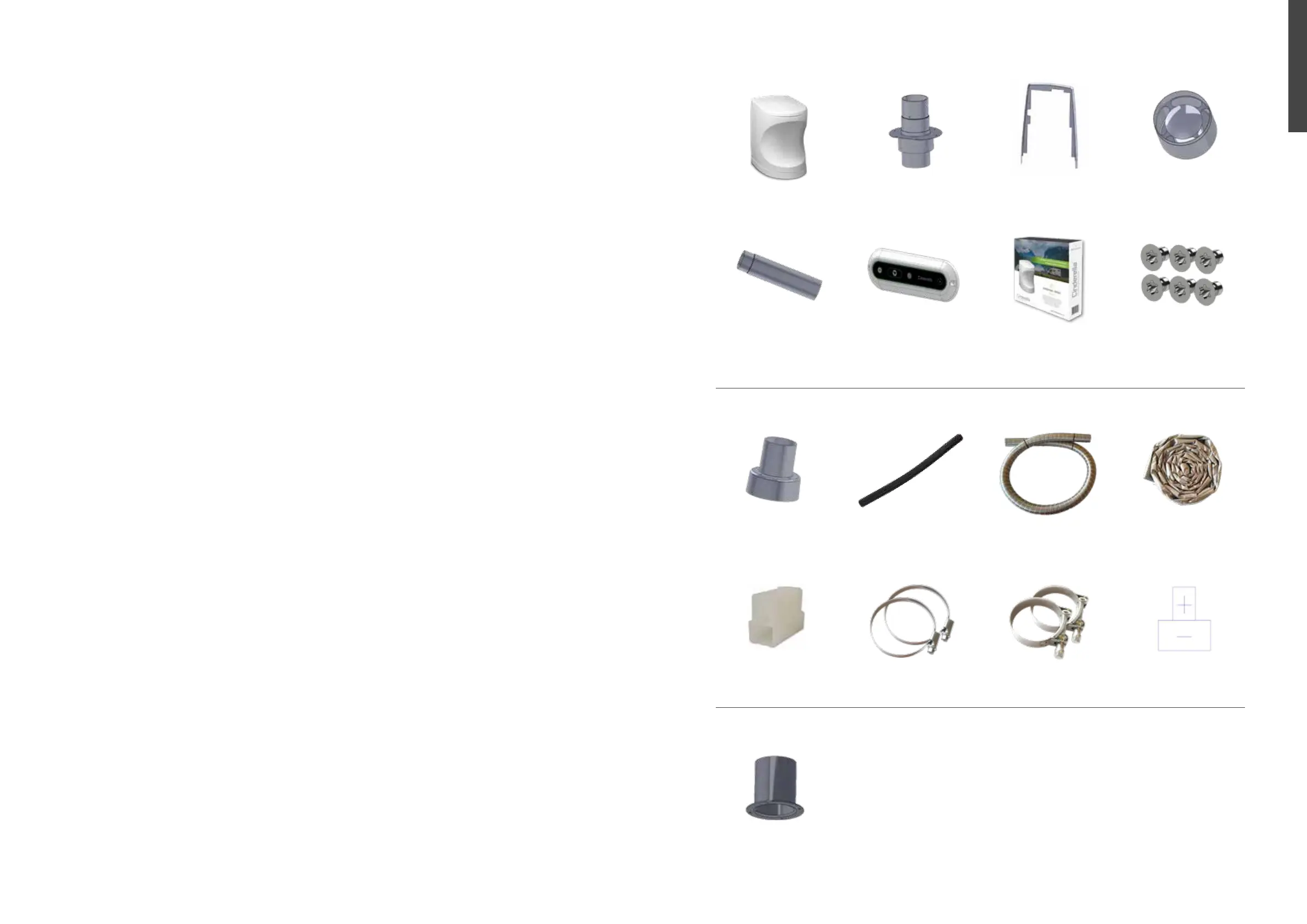

INCLUDED IN THE TOILET BOX
Cinderella Motion
Roof feed through ange
(EN 1.4016) (100630)
Docking frame (101341) Chimney Top (100629)
Inlet ange (100985) Inlet hose (100986) Exhaust hose (100561) Exhaust hose
insulation (100563)
Power cable connector
(100422+100423)
Inlet air hose clamp (100253) Exhaust hose clamp (100394) Polarity for connector
Optional inlet ange
(100669)
Winter Extension (100631) Control panel (100912) Bowl liners (100702) 3 ea. Stainless Steel screws for
chimney cap, 3 ea. for winter
extension (M4x6) (101014)
INCLUDED IN THE INSTALLATION BOX
OPTIONAL, NOT INCLUDED
